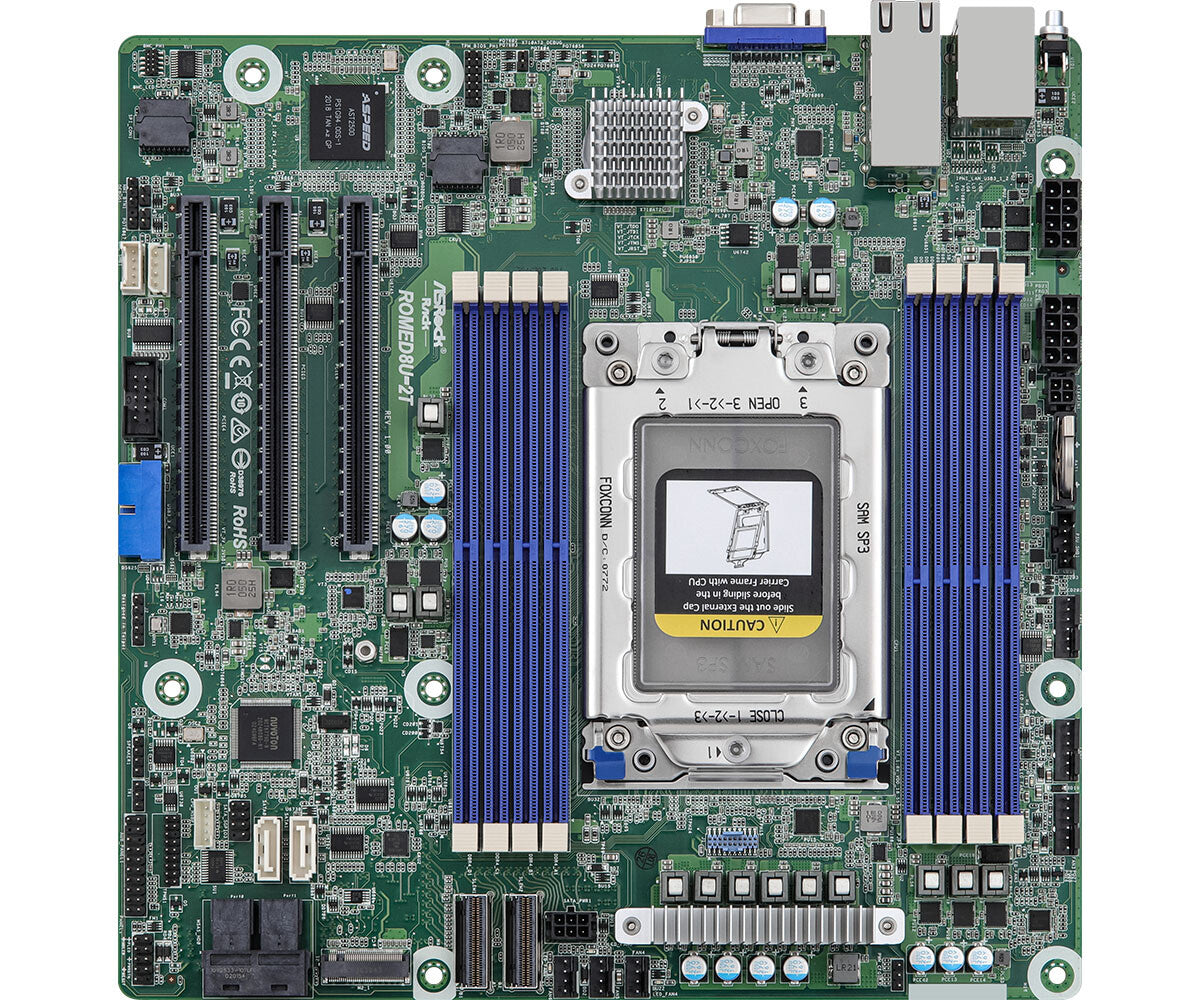

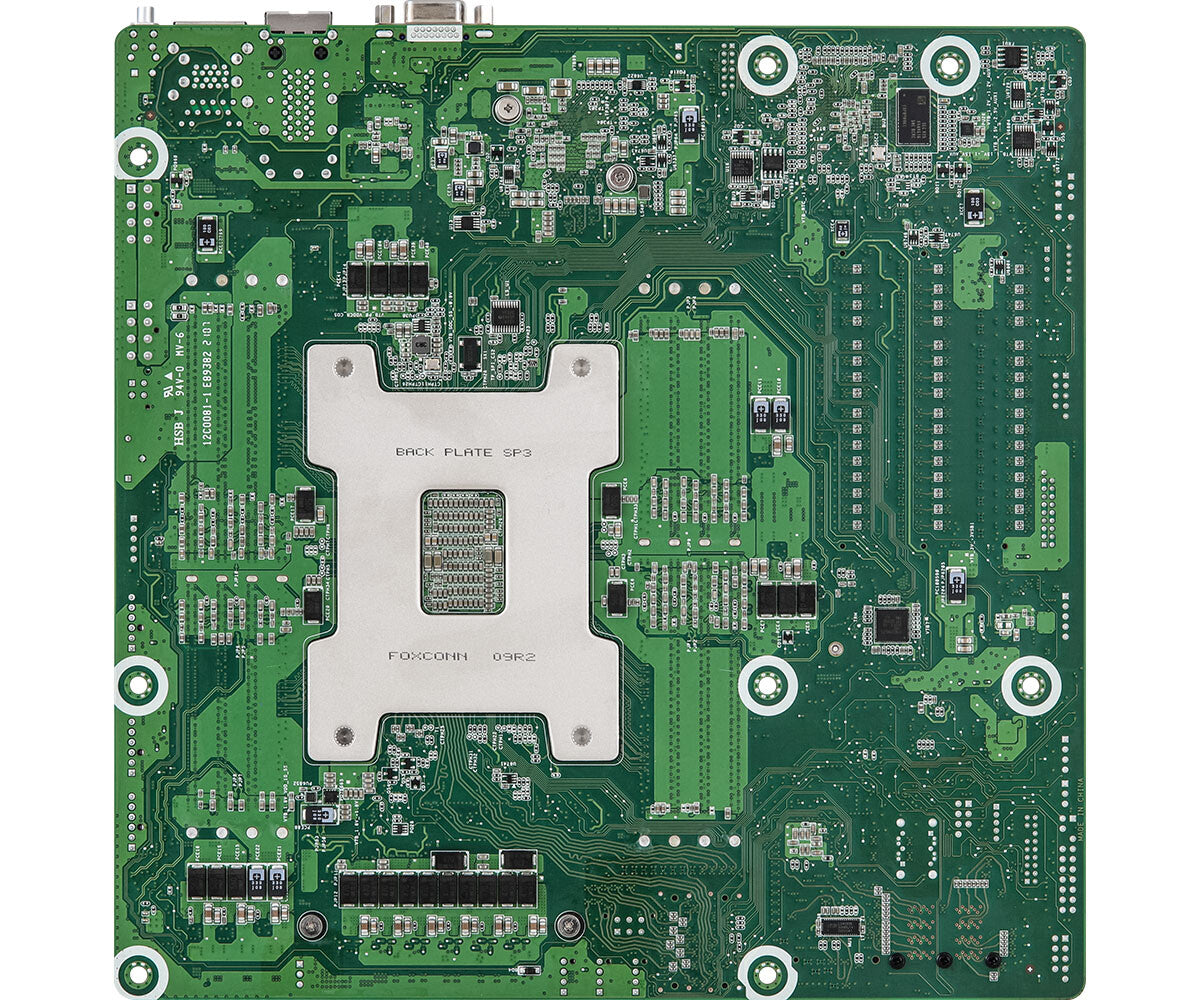

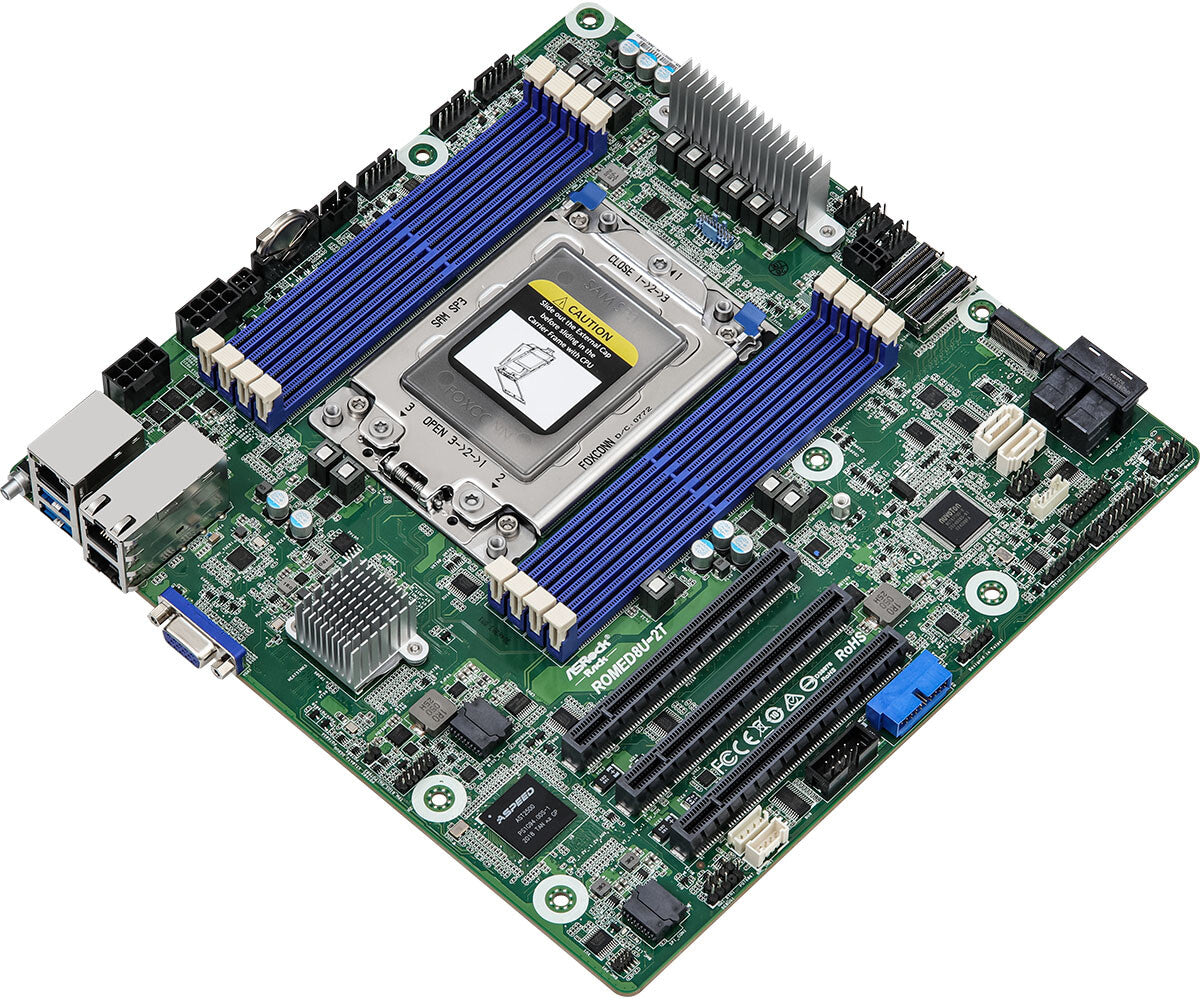

Asrock ROMED8U-2T motherboard LGA 4094 micro ATX
£629.99
Couldn't load pickup availability
- Micro-ATX (9.6" x 9.6")
- Single Socket SP3 (LGA 4094), supports AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 series processors
- 8 DIMM slots (1DPC), supports DDR4 DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
- 3 PCIe4.0 x16
- 2 SlimSAS (PCIe4.0 x8)
- Supports 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- 11 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel X710-AT2
- Remote Management (IPMI)
| Processor | |
|---|---|
| Supported processor sockets | Socket SP3 |
| Compatible processor series | AMD EPYC |
| Processor socket | LGA 4094 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum RDIMM memory | 256 GB |
| Supported memory module capacities | 32GB, 64GB, 128GB |
| Maximum internal memory | 256 GB |
| Supported memory clock speeds | 3200 MHz |
| Memory voltage | 1.2 V |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Number of HDDs supported | 11 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA |
| Supported storage drive types | HDD |
| Graphics | |
|---|---|
| Graphics card | AST2500 |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| CD/AUX audio in | Yes |
| Total number of SATA connectors | 11 |
| Number of SATA connectors | 11 |
| Number of SATA III connectors | 11 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Realtek RTL8211E |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Compatible operating systems | Microsoft Windows - Server 2016 (64 bit)- Server 2019 (64 bit) |
| Linux operating systems supported | Yes |
| Cooling type | Passive |
| Power source type | ATX |
| PC health monitoring | CPU, Temperature |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 16 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 70 mm |
| Other features | |
|---|---|
| Weight | 1.69 kg |
