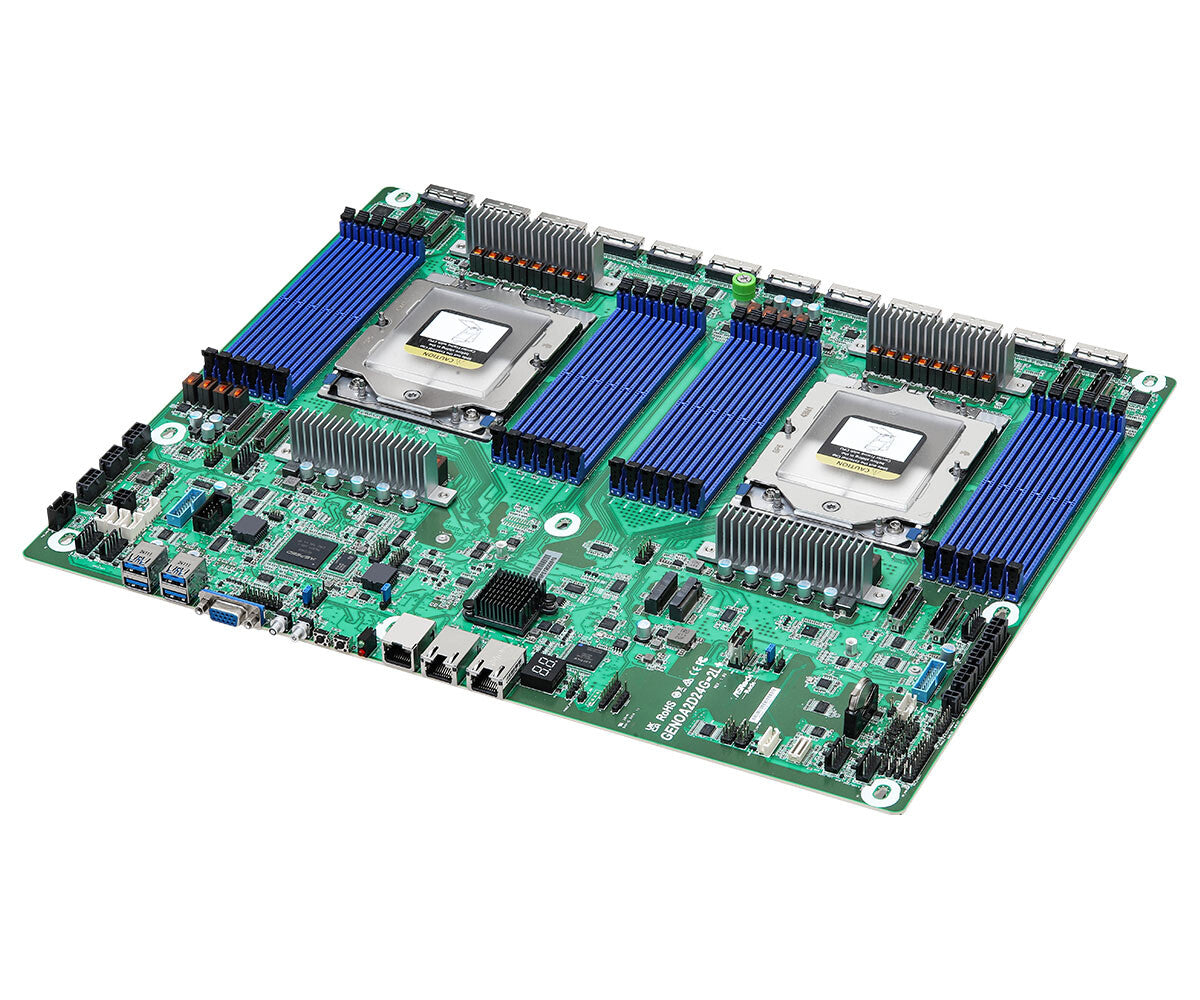

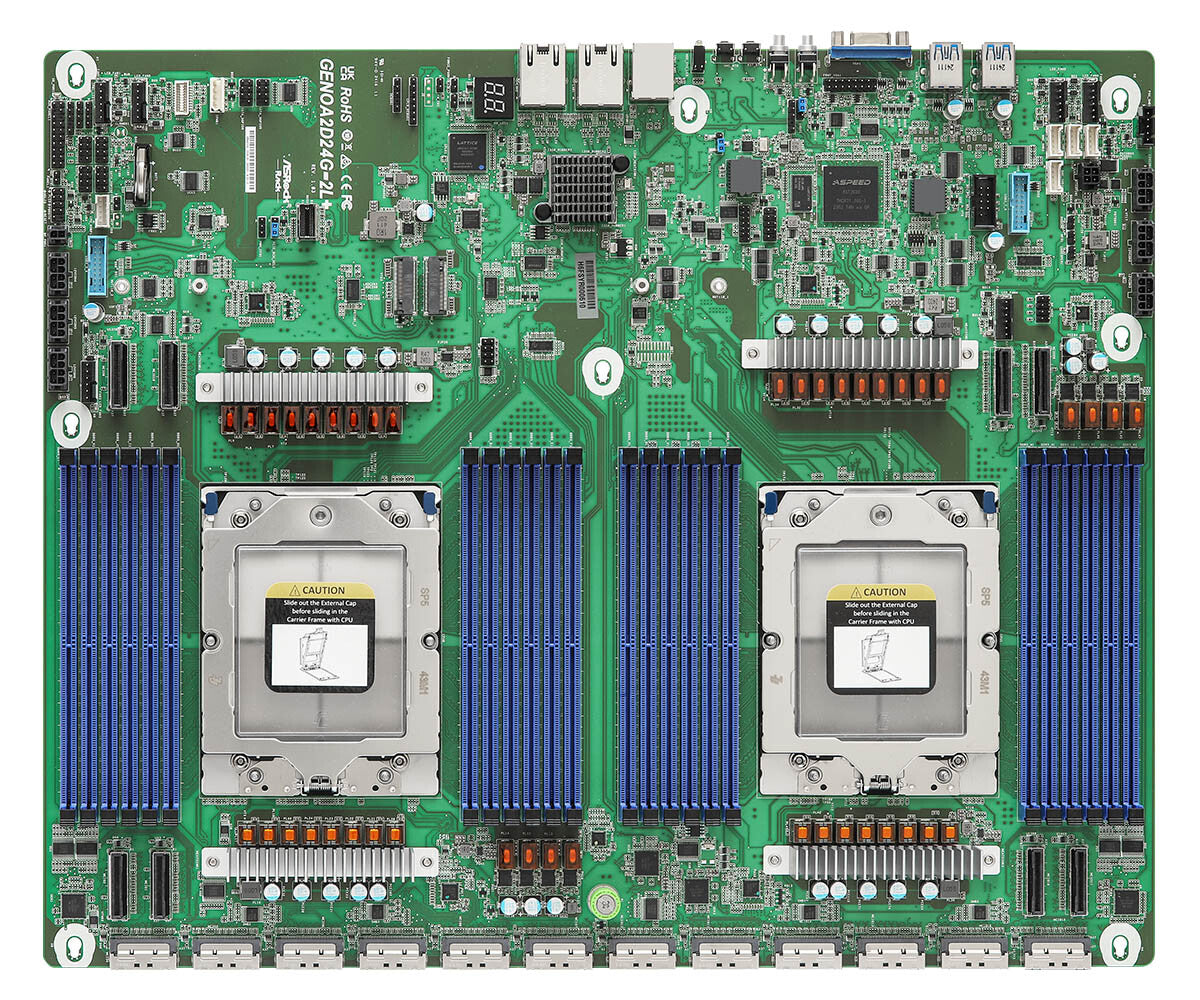

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5
£1,348.99
Couldn't load pickup availability
- Proprietary (16.93" x13.78")
- Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
- 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- 12 MCIO (PCIe5.0 / CXL2.0 x8), 4 MCIO (PCIe5.0 / CXL2.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
- Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Up to 34 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® i350
- Remote Management (IPMI)
Asrock Rack - GENOA2D24G-2L+
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Compatible processor series | AMD EPYC |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 12 TB |
| Supported memory clock speeds | 4800 MHz |
| Memory voltage | 1.1 V |
| Memory slot pin count | 288 |
| Memory slots type | DIMM |
| Number of memory slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| Number of storage drives supported | 34 |
| Number of HDDs supported | 32 |
| Supported storage drive interfaces | SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 512 MB |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

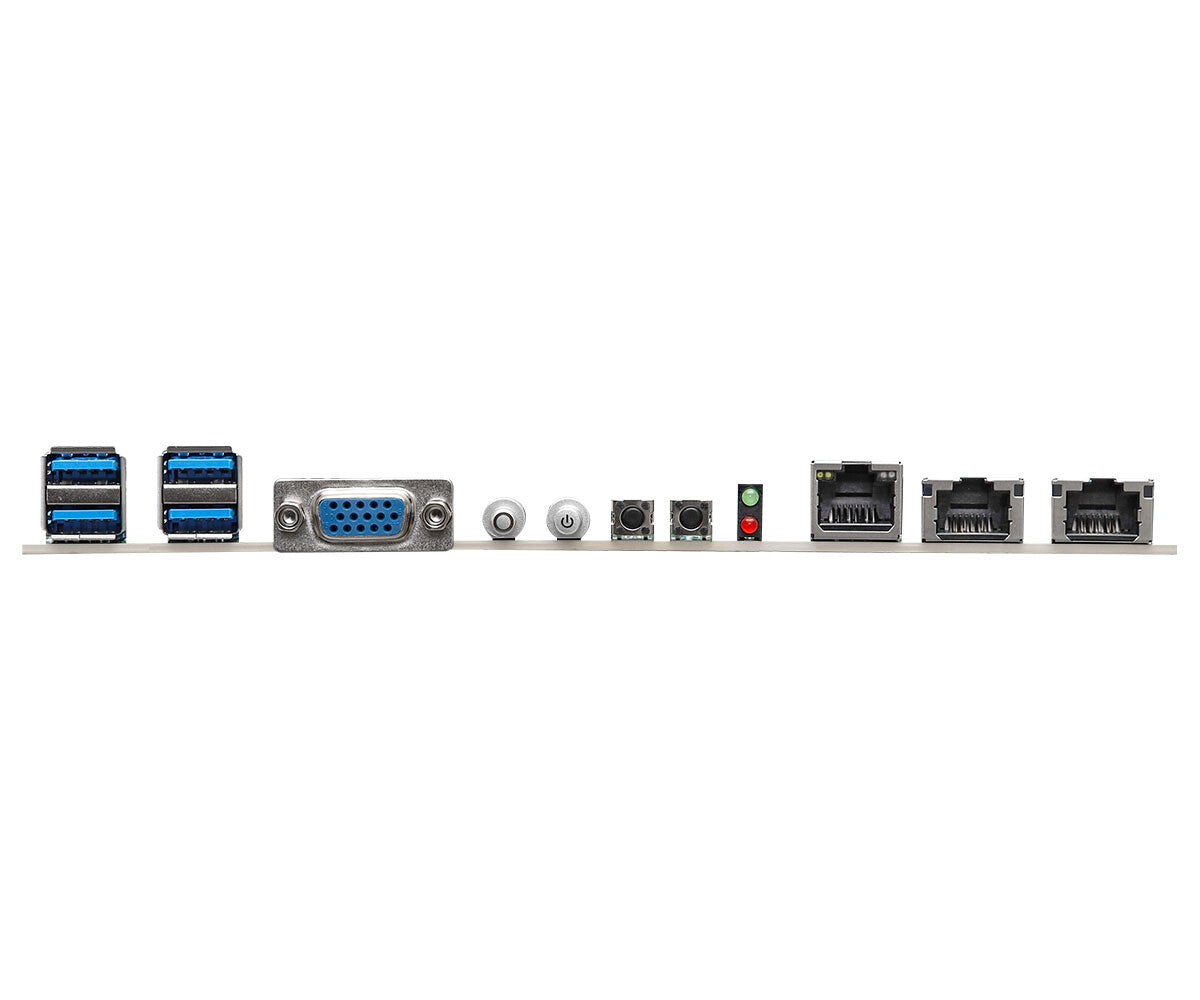

| Rear panel I/O ports | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Intel® I350 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| PC health monitoring | Fan, Temperature, Voltage |
| Product colour | Green, Grey |
| Motherboard chipset | AMD SoC |
| Motherboard chipset family | AMD |
| Component for | Server |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.5 |
| Clear CMOS button | Yes |
| ACPI version | 6.4 |
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
|---|---|
| Depth | 350 mm |
| Width | 430 mm |
