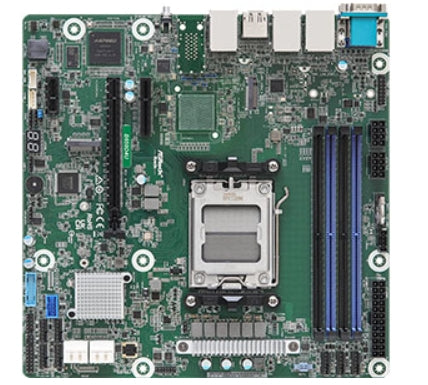

Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX
£318.99
Couldn't load pickup availability
- Micro-ATX (9.6"x 9.6")
- Support AMD Ryzen 7000 series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (1GbE) by Intel® i210
- 4 SATA 6Gb/s
- 1 HDMI, 1 DisplayPort
- Remote management (IPMI)
| Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 5200 MHz |
| Supported memory clock speeds | 3600,5200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory voltage | 1.1 V |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
|---|---|
| Number of COM connectors | 1 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |

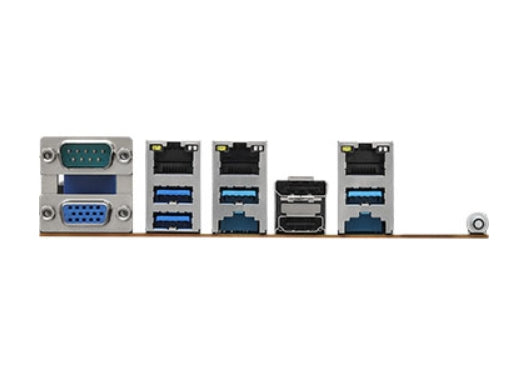

| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| PC health monitoring | CPU, Fan, Voltage |
| Motherboard chipset | AMD B650 Express |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | Server |
| Expansion slots | |
|---|---|
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.5 |
| ACPI version | 6.4 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Depth | 243.8 mm |
| Width | 243.8 mm |
