ASUS Dual -RX9060-8G AMD Radeon RX 9060 8 GB GDDR6
Couldn't load pickup availability
- AMD Radeon RX 9060 8 GB GDDR6
- 7680 x 4320 pixels 128 bit 18 Gbit/s PCI Express 5.0

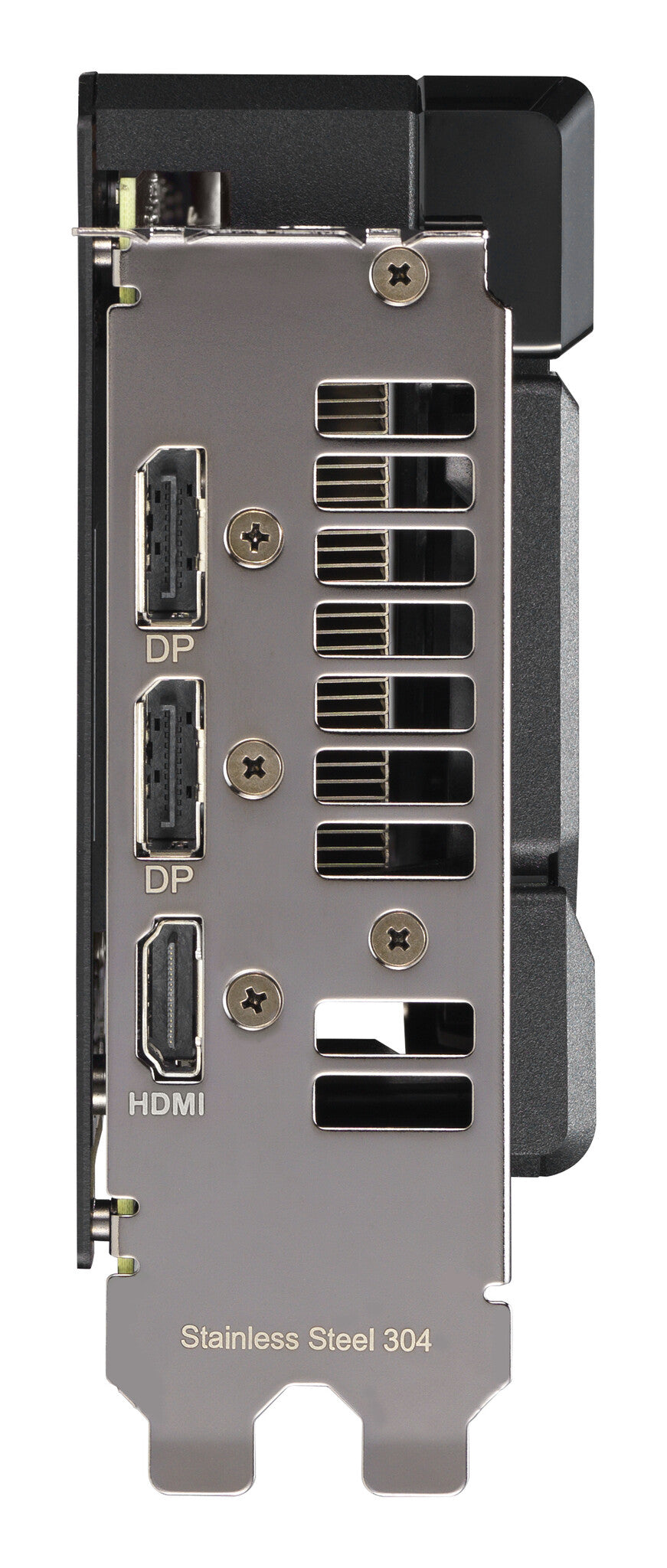

- HDMI ports quantity: 1 DisplayPorts quantity: 2
- OpenGL version: 4.6
- 1x 8-pin

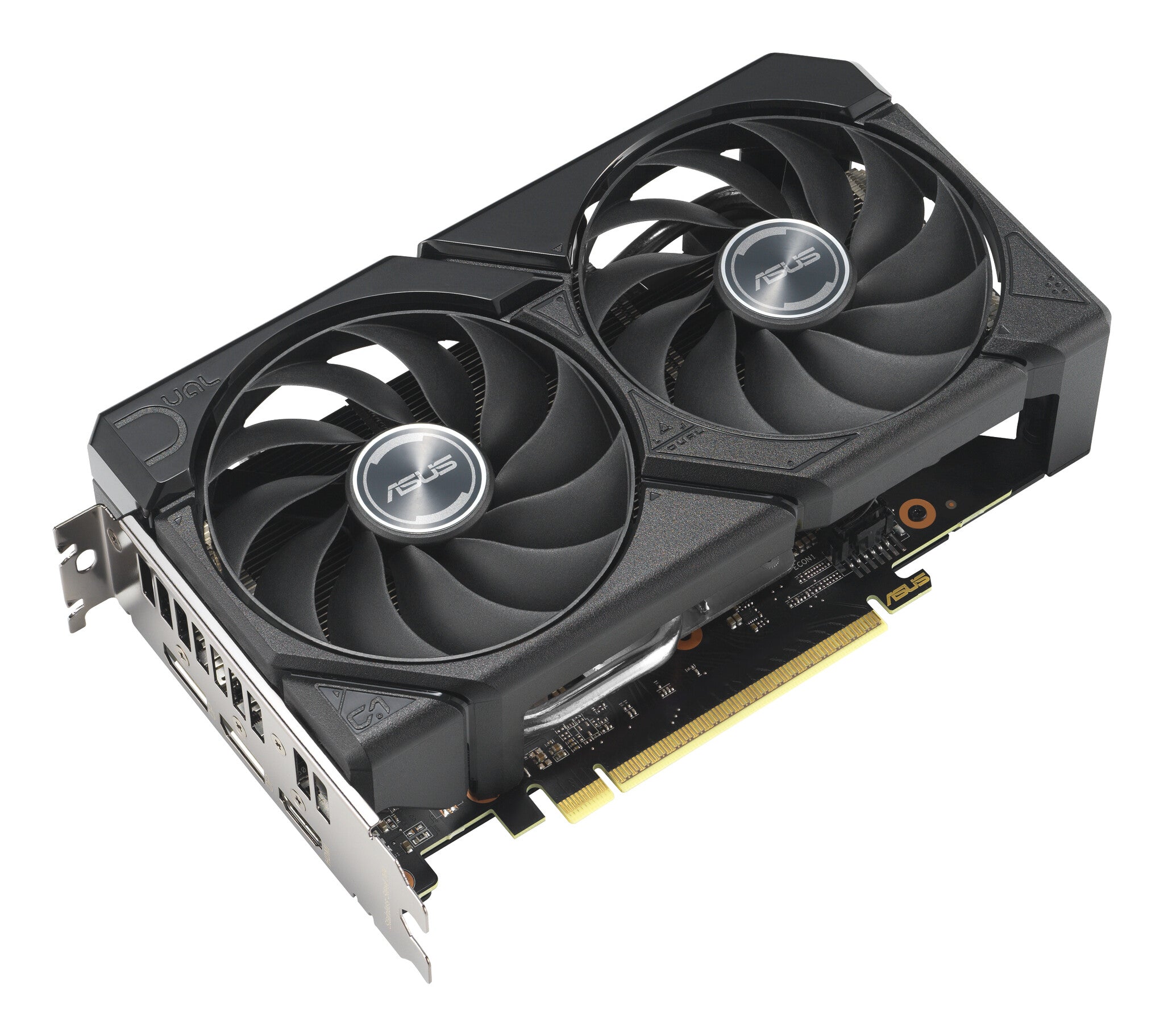

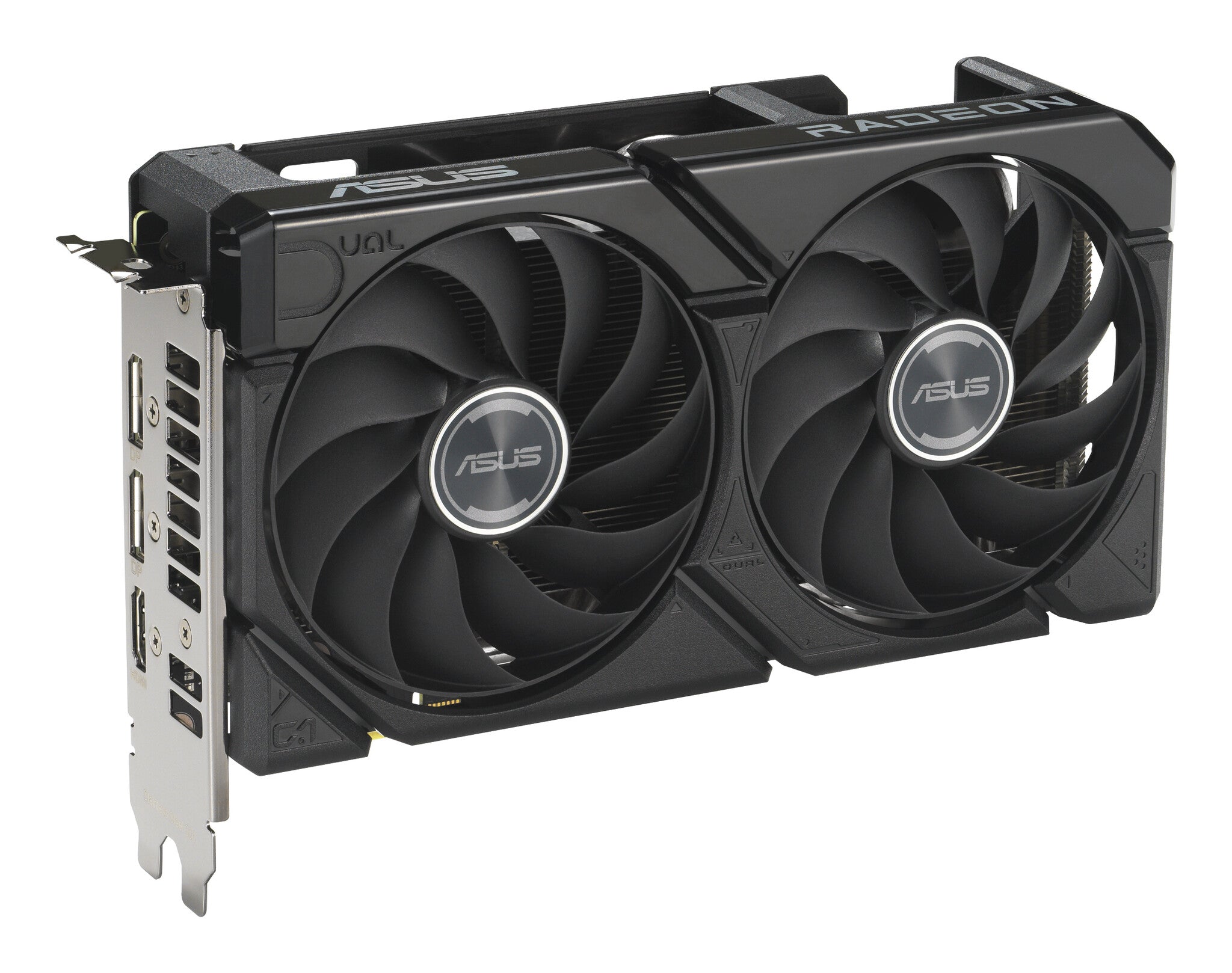

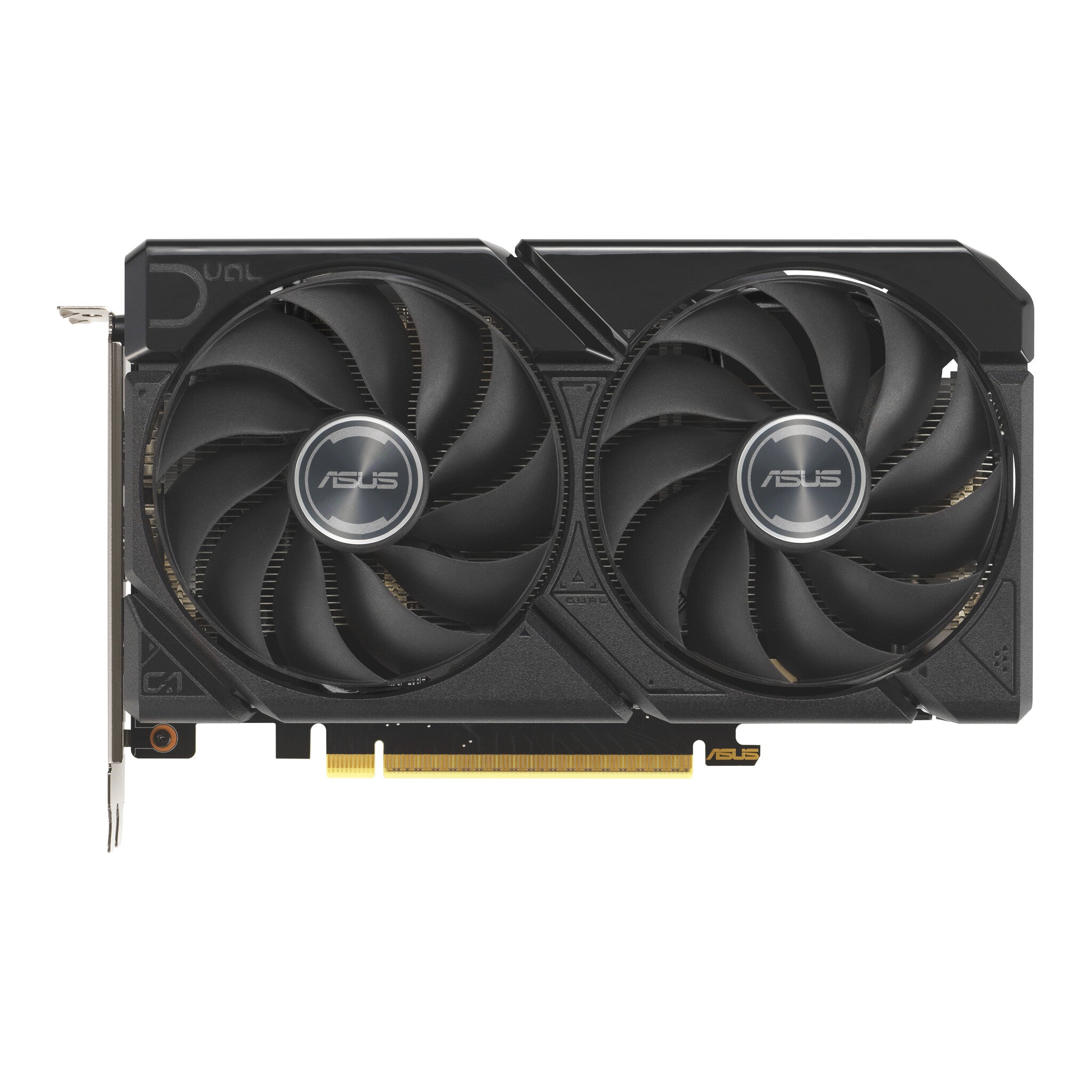

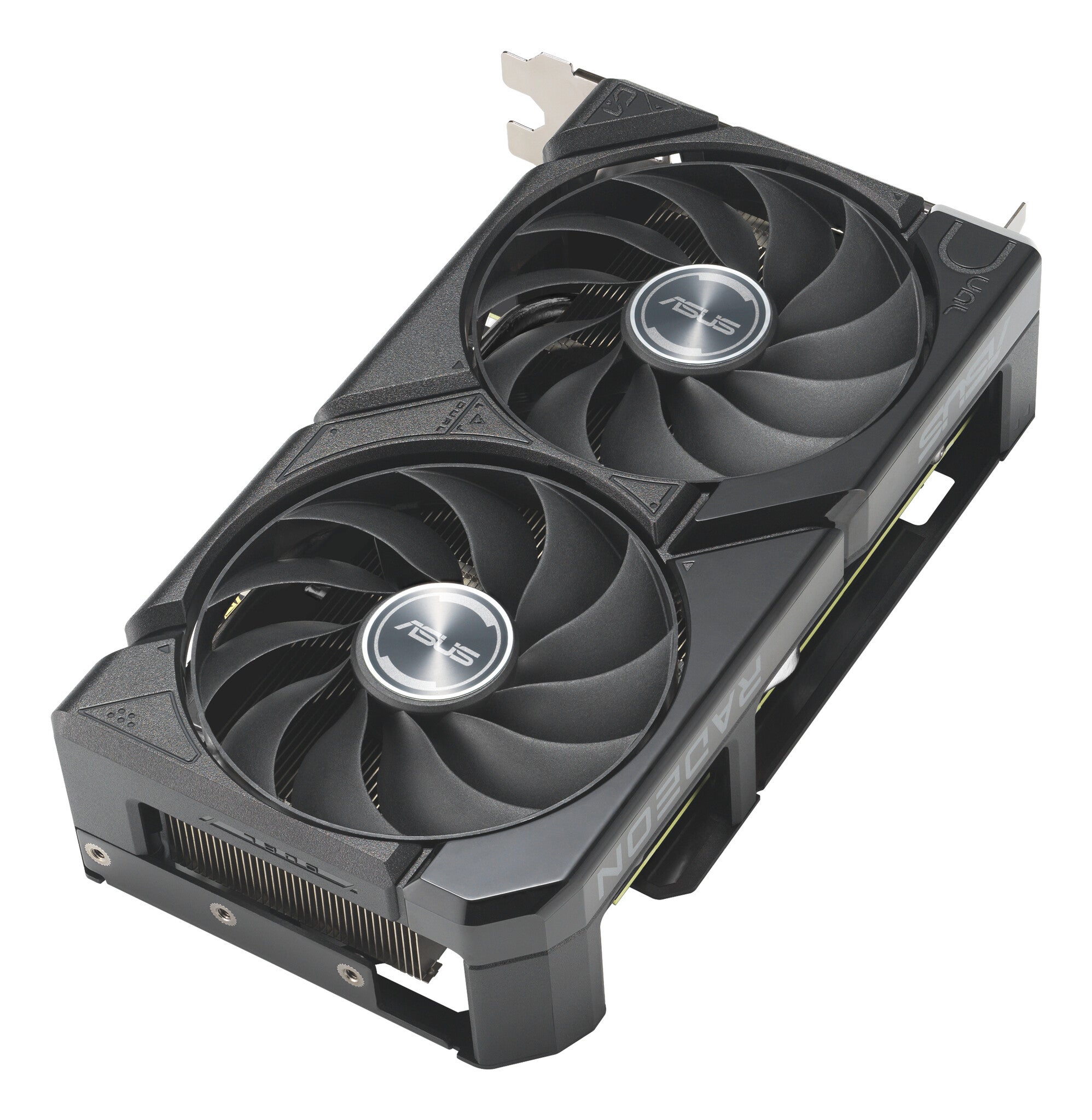

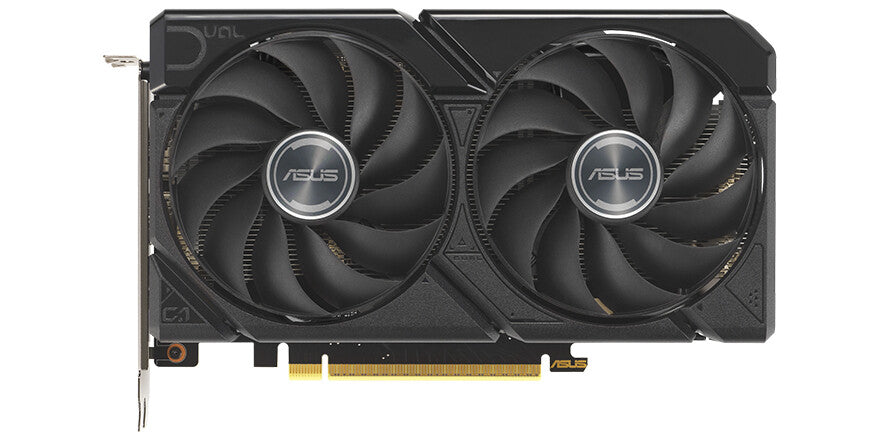

Dual Radeon™ RX 9060
Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design

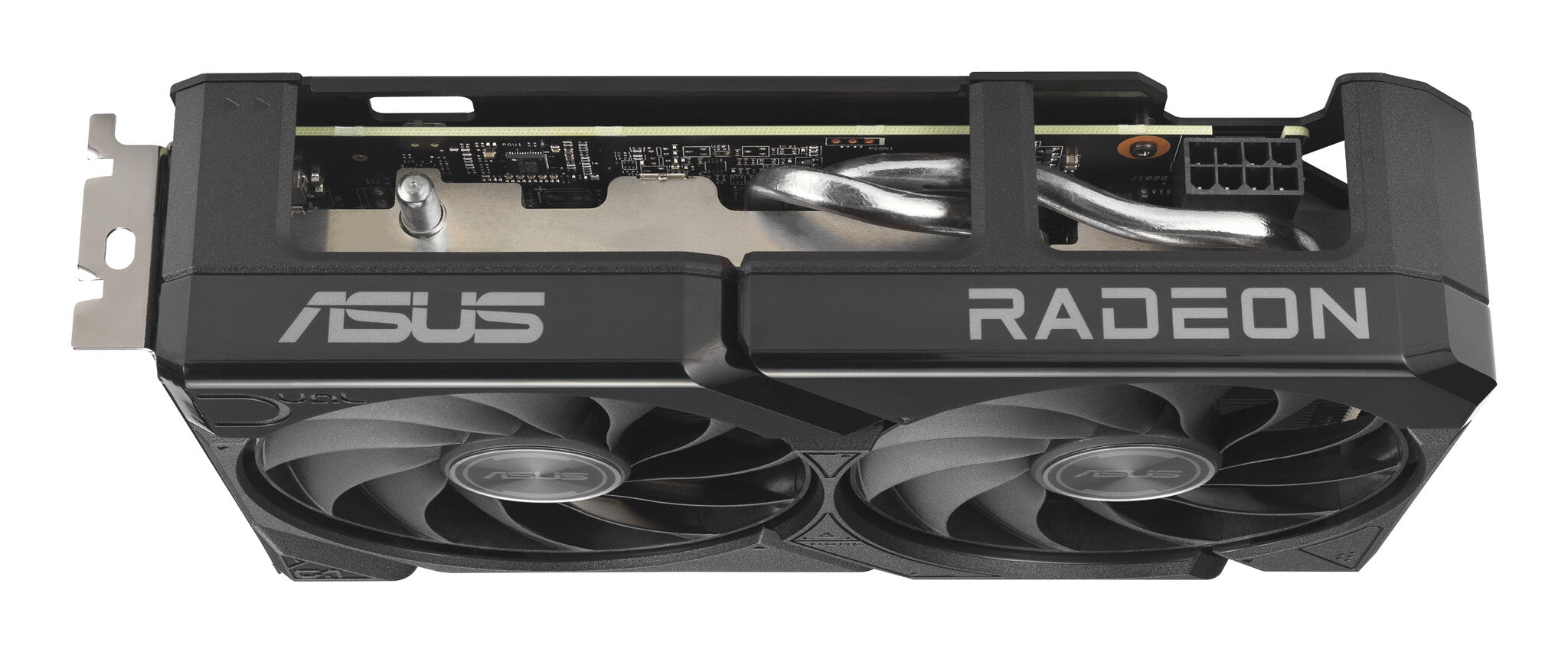

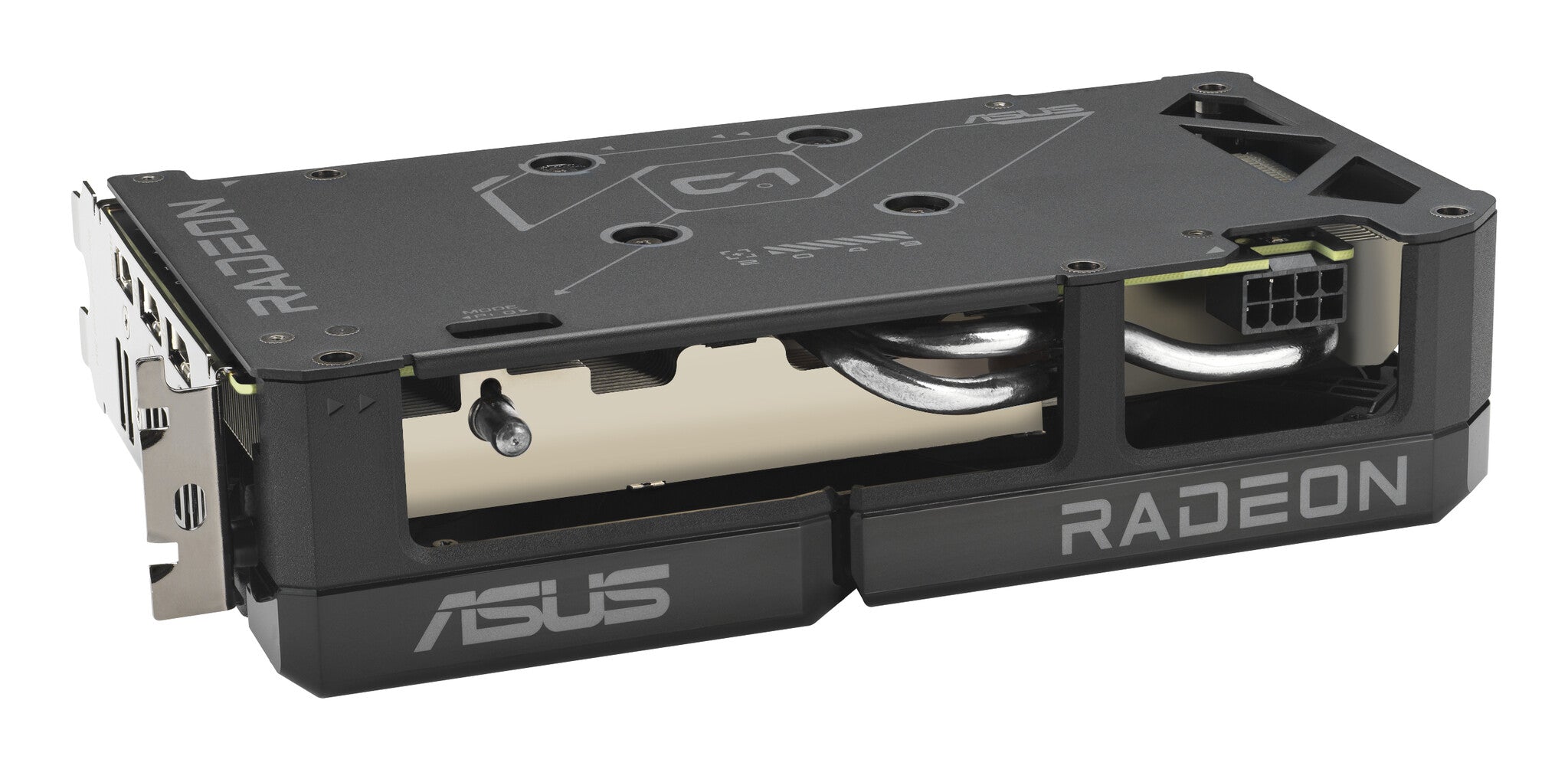

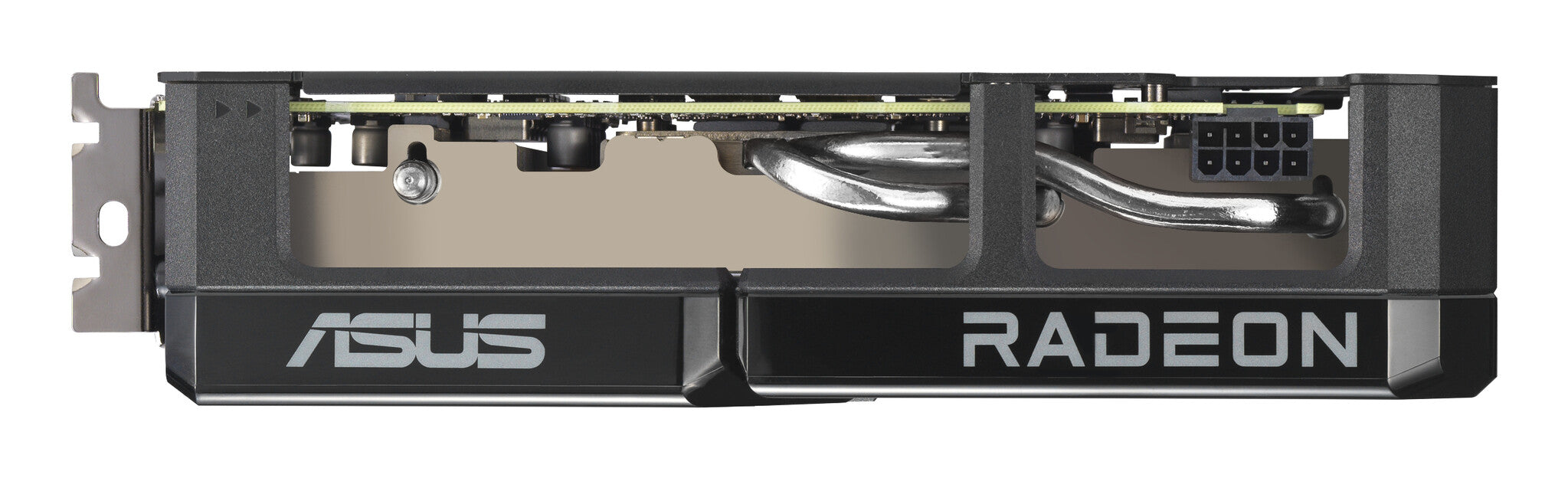

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades

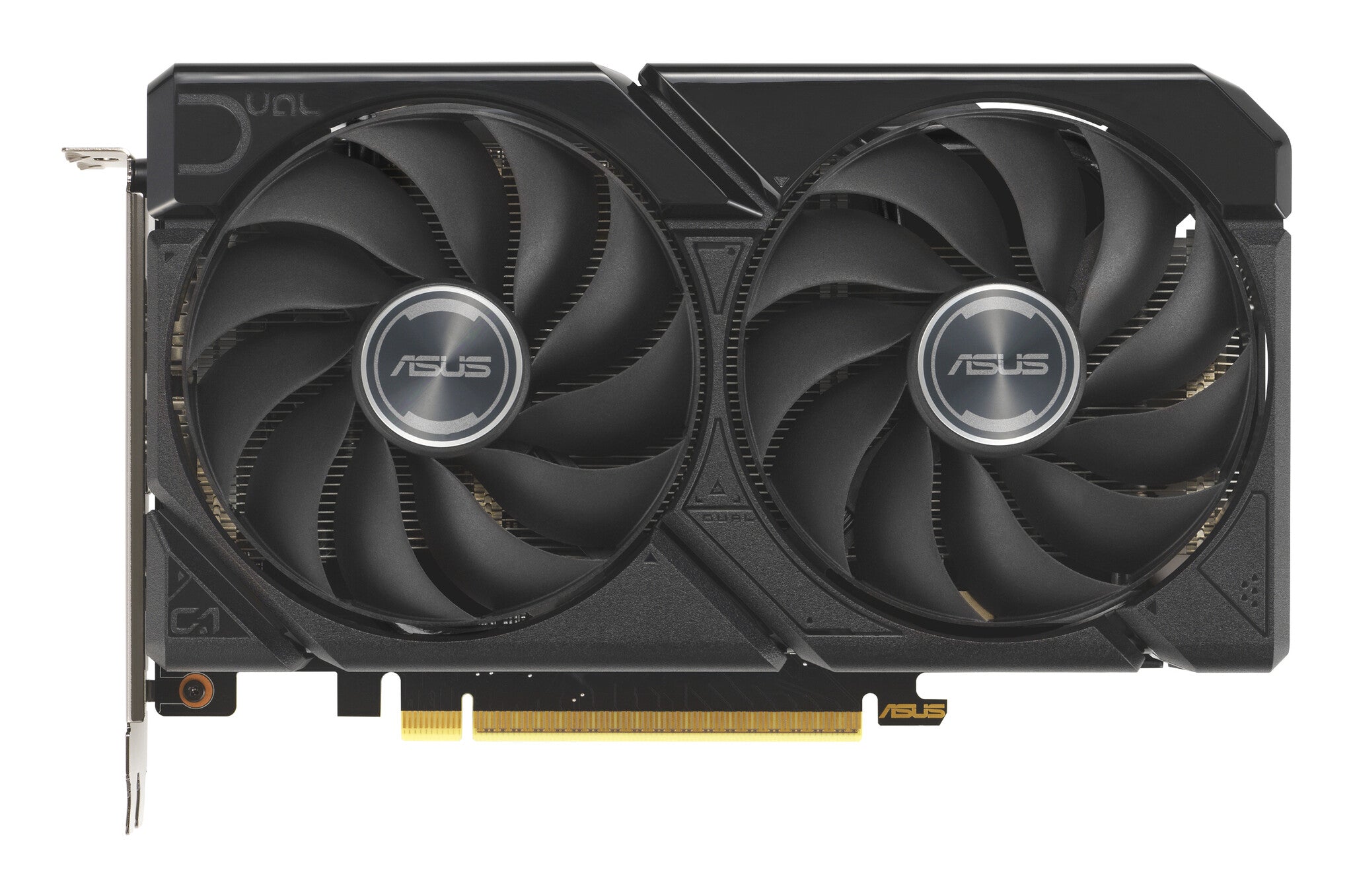

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Stream processors | 1792 |
| Maximum displays per videocard | 3 |
| Processor boost clock speed (Gaming mode) | 2410 MHz |
| Processor boost clock speed (OC mode) | 3000 MHz |
| Processor boost clock speed | 2990 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 9060 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1a |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 5.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2.5 |
| Number of fans | 2 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
|---|---|
| Height | 120 mm |
| Depth | 49 mm |
| Length | 202 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| General | |
|---|---|
| Product family | Dual |
