Elo Touch Solutions I-Series E850204 All-in-One PC/workstation Intel® Core™ i3 i3-8100T 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen All-in-One tablet PC 8 GB DDR4-SDRAM 128 GB SSD Windows 10 Wi-Fi 5 (802.11ac) Black
Couldn't load pickup availability
- All-in-One tablet PC Black 100 W
- Intel® Core™ i3 i3-8100T 3.1 GHz Processor cores: 4
- Touchscreen 39.6 cm (15.6") Full HD 1920 x 1080
- 8 GB DDR4-SDRAM 2666 MHz 1 x 8 GB
- 128 GB SSD
- Intel® UHD Graphics 630
- Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
- Windows 10
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts

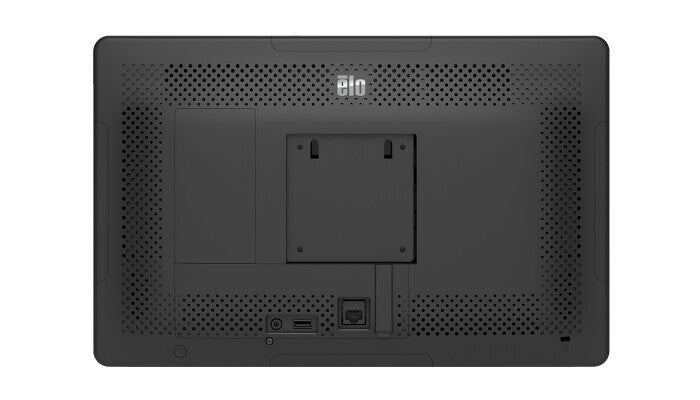

With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Response time | 25 ms |
| Screen shape | Flat |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8100T |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 3.1 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 35 W |
| Configurable TDP-down frequency | 2.4 GHz |
| Configurable TDP-down | 25 W |
| Processor code | SR3Y8 |
| Stepping | B0 |
| Tjunction | 82 °C |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Maximum number of PCI Express lanes | 16 |
| Processor codename | Coffee Lake |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| PCI Express slots version | 3.0 |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Storage | |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Number of displays supported (on-board graphics) | 3 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card 4K support | Yes |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Camera | |
|---|---|
| Built-in camera | No |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Performance | |
|---|---|
| Product type | All-in-One tablet PC |
| Motherboard chipset | Intel® H310 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 10 |
| Processor special features | |
|---|---|
| Intel® Smart Cache | Yes |
| Processor ARK ID | 129944 |
| Intel TSX-NI version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Thermal solution specification | PCG 2015A |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | Yes |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Pen | |
|---|---|
| Pen included | No |
| General | |
|---|---|
| Product family | I-Series |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 384.2 mm |
| Depth (with stand) | 43.8 mm |
| Height (with stand) | 246.4 mm |
| Weight (with stand) | 2.2 kg |
| Package width | 462 mm |
| Package depth | 216 mm |
| Package height | 346 mm |
| Package weight | 4.3 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Other features | |
|---|---|
| 3D | No |
| Detachable display | No |
