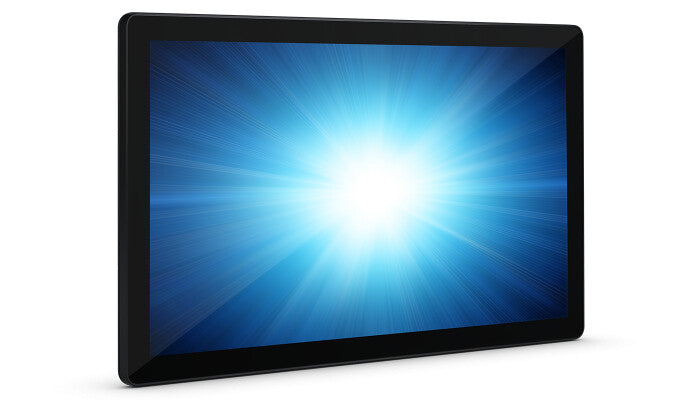

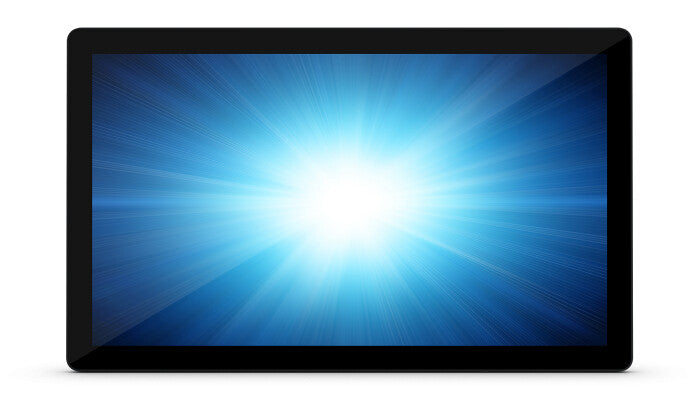

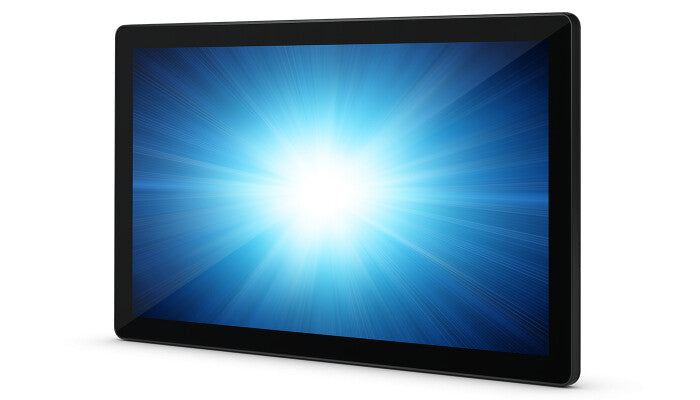

Elo Touch Solutions I-Series E693211 All-in-One PC/workstation Intel® Core™ i5 i5-8500T 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One tablet PC 8 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Black
Couldn't load pickup availability
- All-in-One tablet PC Black 100 W
- Intel® Core™ i5 i5-8500T 2.1 GHz Processor cores: 6
- Touchscreen 54.6 cm (21.5") Full HD 1920 x 1080
- 8 GB DDR4-SDRAM 2666 MHz 1 x 8 GB
- 128 GB SSD
- Intel® UHD Graphics 630
- Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts

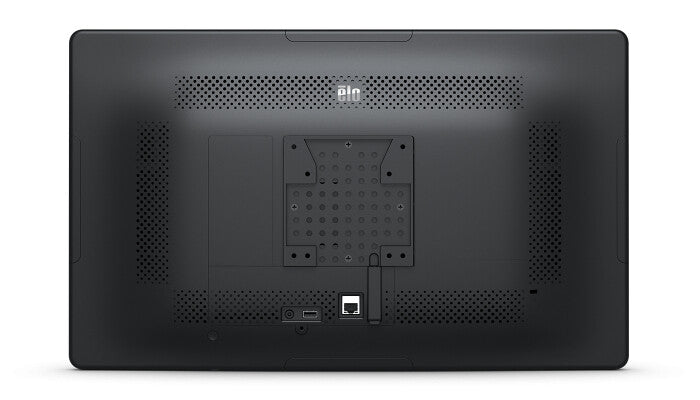

With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
| Display | |
|---|---|
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Response time | 14 ms |
| Display brightness | 225 cd/m² |
| Native aspect ratio | 16:9 |
| Touch technology | Multi-touch |
| LED backlight | Yes |
| HD type | Full HD |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Processor | |
|---|---|
| ECC supported by processor | No |
| Memory channels supported by processor | Dual |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| PCI Express slots version | 3.0 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Tjunction | 100 °C |
| Stepping | U0 |
| Processor code | SR3XD |
| Bus type | DMI3 |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.6 GHz |
| Thermal Design Power (TDP) | 35 W |
| 64-bit computing | Yes |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 9 MB |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor threads | 6 |
| Processor cores | 6 |
| Processor model | i5-8500T |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 2666 MHz |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Compatible memory cards | Not supported |
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E92 |
| On-board graphics card 4K support | Yes |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| Audio | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Built-in camera | No |
| Network | |
|---|---|
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel Q370 |
| Product type | All-in-One tablet PC |
| Software | |
|---|---|
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Idle States | Yes |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Scalability | 1S |
| Intel Clear Video Technology | Yes |
| Thermal solution specification | PCG 2015A |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Execute Disable Bit | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 129941 |
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50-60 Hz |
| AC adapter power | 100 W |
| Pen | |
|---|---|
| Pen included | No |
| General | |
|---|---|
| Product family | I-Series |
| Weight & dimensions | |
|---|---|
| Package weight | 7 kg |
| Package height | 437 mm |
| Package depth | 196 mm |
| Package width | 625 mm |
| Weight (with stand) | 5.2 kg |
| Height (with stand) | 319.2 mm |
| Depth (with stand) | 52.6 mm |
| Width (with stand) | 525.9 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Other features | |
|---|---|
| Detachable display | No |
| 3D | No |
