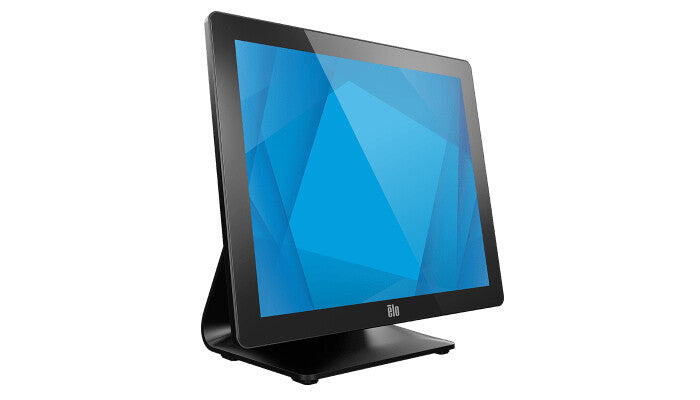

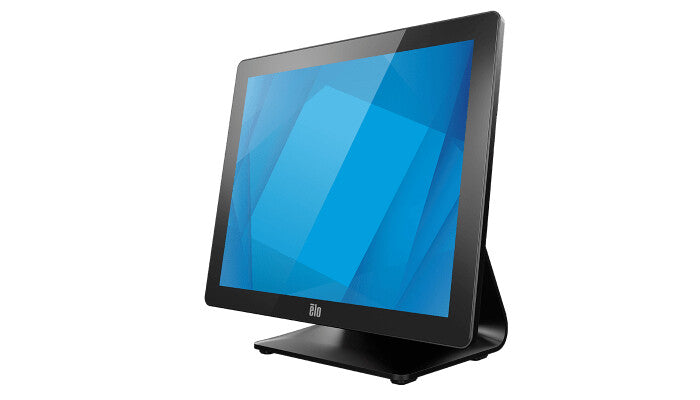

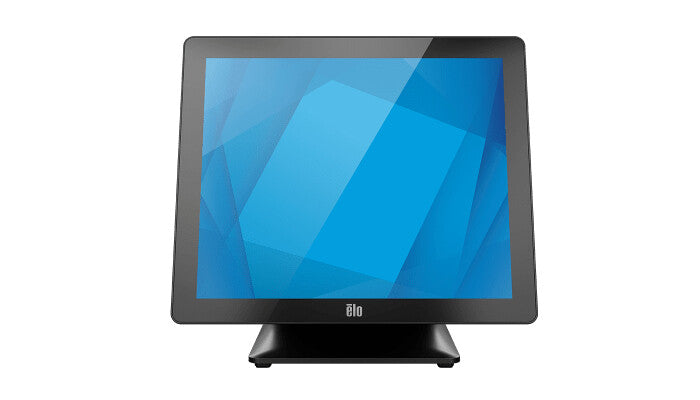

Elo Touch Solutions I-Series 3 Intel® Core™ i7 i7-1265UL 43.2 cm (17") 1280 x 1024 pixels Touchscreen All-in-One tablet PC 16 GB DDR5-SDRAM 128 GB SSD Windows 10 Wi-Fi 6E (802.11ax) Black
£2,505.99
Couldn't load pickup availability
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 24V Powered USB
- 2x 12V Powered USB
- 12V/24V Cash Drawer
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with
and without stand options, you can easily configure the I‑Series
to fit the needs of your business - from signage and point-of-sale
to self-service, automation controls and more.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th
Generation processors, integrated Trusted Platform Modules, Intel
vPro™ and the Windows 10 operating system, the I‑Series 3 delivers
the dependability businesses need.
| Display | |
|---|---|
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Response time | 25 ms |
| Panel type | TFT |
| Display brightness | 250 cd/m² |
| Native aspect ratio | 5:4 |
| Touchscreen | Yes |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Efficient-core Max Turbo Frequency | 2.7 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient cores | 8 |
| Processor frequency | 1.8 GHz |
| Processor threads | 12 |
| Processor model | i7-1265UL |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 4800 MHz |
| Memory slots type | SO-DIMM |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Product type | All-in-One tablet PC |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 |
| Power | |
|---|---|
| Power consumption (typical) | 54 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| General | |
|---|---|
| Product family | I-Series |
| Weight & dimensions | |
|---|---|
| Package height | 539 mm |
| Package depth | 315 mm |
| Package width | 529 mm |
| Height (with stand) | 371.2 mm |
| Depth (with stand) | 205.6 mm |
| Width (with stand) | 393.4 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Other features | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
