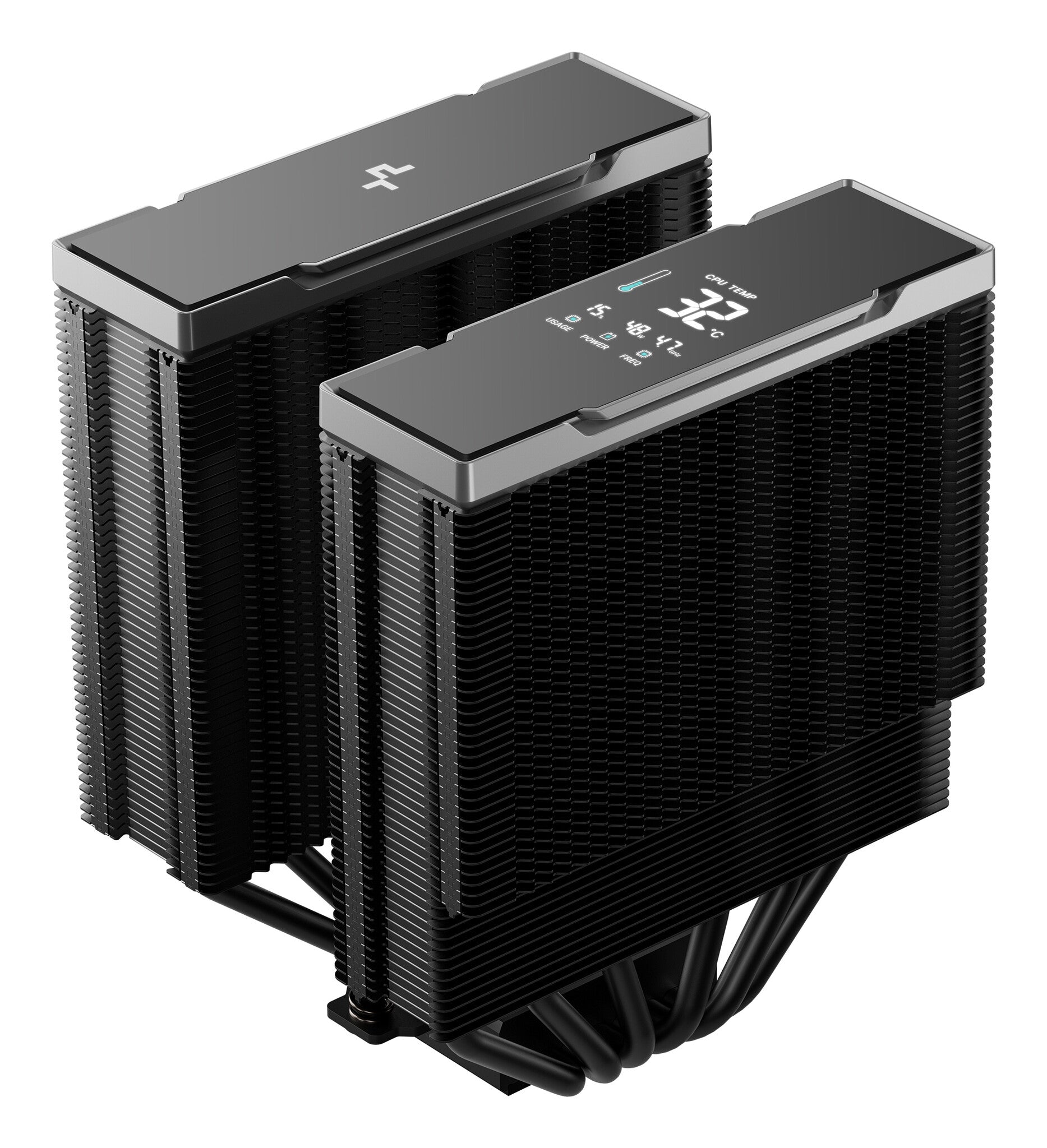

DeepCool AK620 G2 DIGITAL NYX Dual Tower CPU Cooler

Further improved second generation of the iconic AK DIGITAL lineup with upgraded performance and a bold new aesthetic. It features six advanced copper heat pipes, a dense dual-tower heatsink, newly designed silent fans,?and now sports a high-end quad-segmented digital display that delivers elite cooling backed by upgraded tech and real-time insight.

AI-TUNED CHILL. POWERED BY DeepCreative
With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

NEXT GENERATION PERFORMANCE
Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK620 G2 DIGITAL NYX combines improved performance with a slightly smaller size compared to its predecessor.

THE DIGITAL TOUCH
The standout addition of the AK620 G2 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

PROVEN AK DESIGN
The AK620 G2 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and six copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.

COOL, QUIET, AND POWERFUL

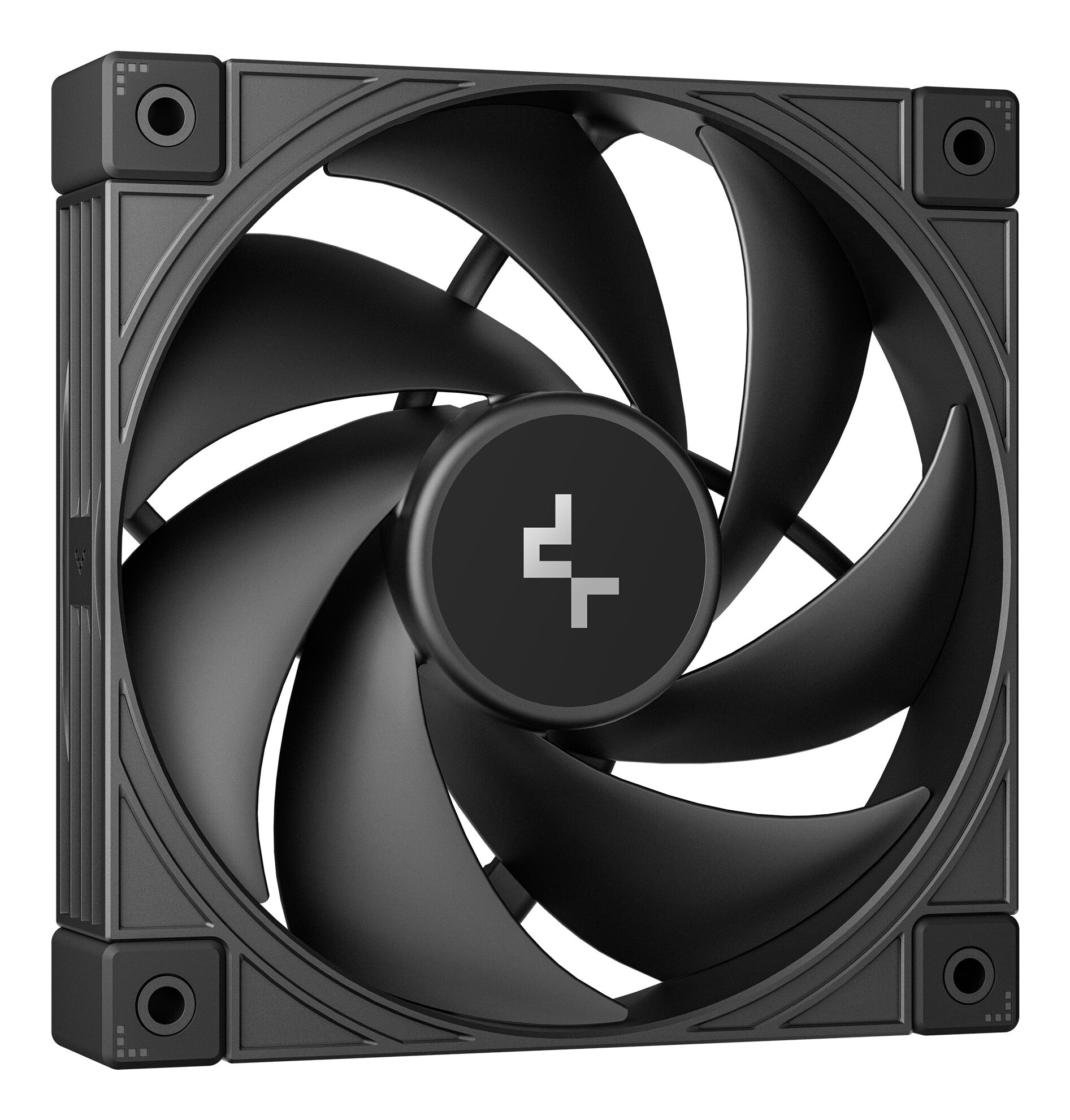

Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK620 G2 DIGITAL NYX's fans operate smoothly and quietly.

MULTI-PLATFORM PERFORMANCE

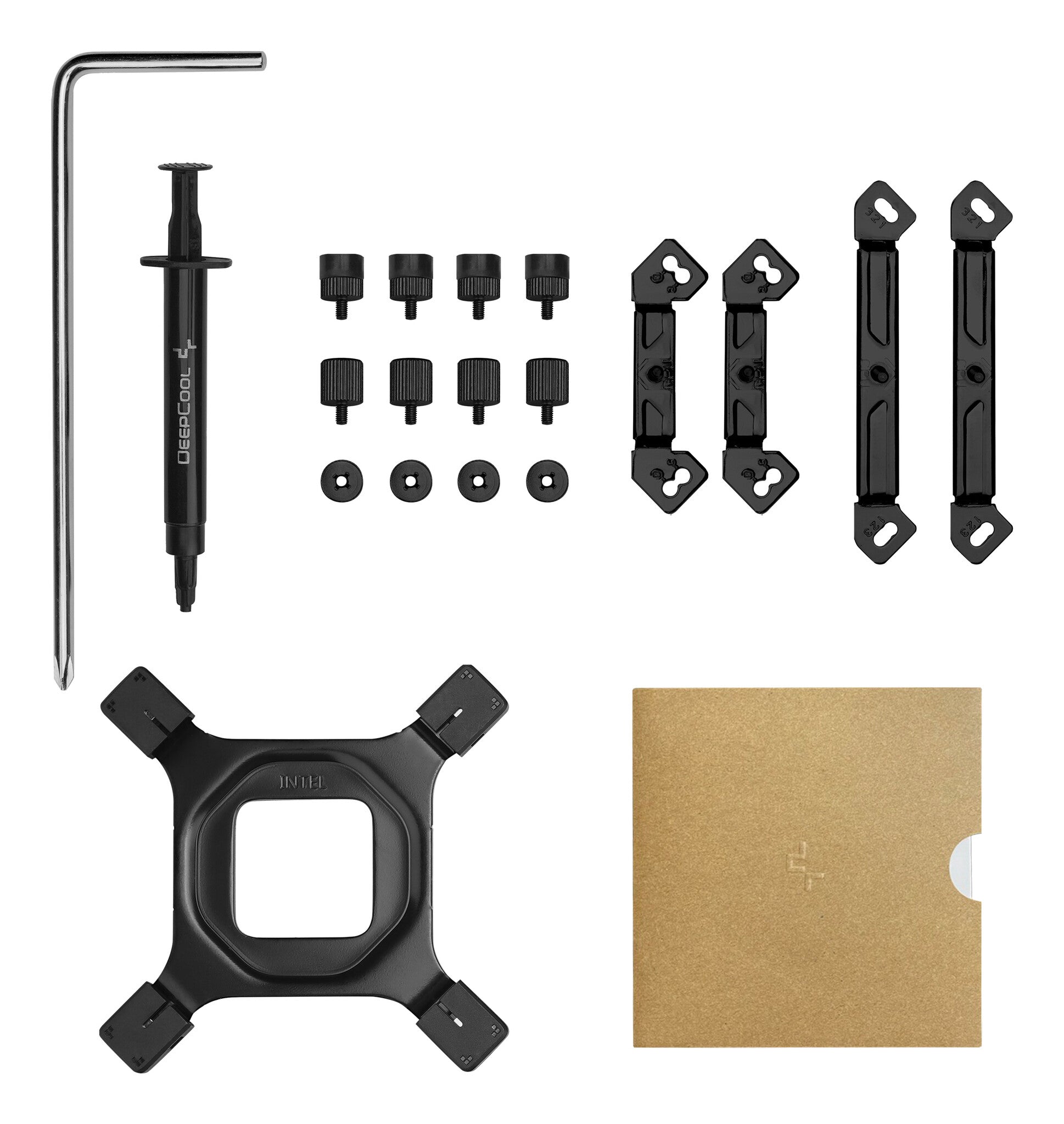

The all-metal mounting bracket kit ensures sturdy, easy installation on both Intel and AMD platforms, offers an offset mounting solution for multi-platform systems, and comes complete with additional tools.

Specifications

Product Dimensions
127x144x159 mm(LxWxH)

Heatsink Dimensions
125x115x153 mm(LxWxH)

Net Weight
1386 g

Heatpipe
6 mmx6 pcs

Fan Dimensions
120x120x25 mm(LxWxH)

Fan Speed
2000±10% RPM(max)

Fan Airflow
57.76 CFM

Fan Air Pressure
2.78 mmAq

Fan Noise
=28.87 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.19 A

Fan Power Consumption
2.28 W

Display Module Rated Current
0.13 A±10%

Display Module Rated Voltage
5 VDC

Display Module Power Consumption
0.65 W

Display Area
29x39 mm

Performance
Suitable location	Processor
Type	Air cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow	57.76 cfm
Maximum air pressure	2.78 mmH2O
Fan diameter 2	12 cm
Fan 2 rotational speed (max)	2000 RPM
Pulse-width modulation (PWM) support	Yes
Fan noise level (max)	28.87 dB
Fan bearing technology	Hydro Dynamic Bearing (HDB)
Quantity per pack	1 pc(s)
Fan speed (max)	2200 RPM

Design
Product colour	Black
Radiator material	Aluminum
Number of fans	2 fan(s)
Number of fan blades	7
Number of heat pipes	6
Fan connector	4-pin
Display size (HxV)	29 x 39 mm

Power
Fan power consumption	2.28 W
Fan current	0.19 A
Fan voltage	12 V

Weight & dimensions
Width	144 mm
Radiator width	11.5 cm
Radiator depth	12.5 cm
Radiator height	15.3 cm
Depth	127 mm
Height	159 mm
Weight	1.39 kg
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm

Packaging content
Package type	Box
Mounting kit	Yes
Screws included	Yes
CPU bracket(s)	Yes

Other features
Built-in display	Yes
