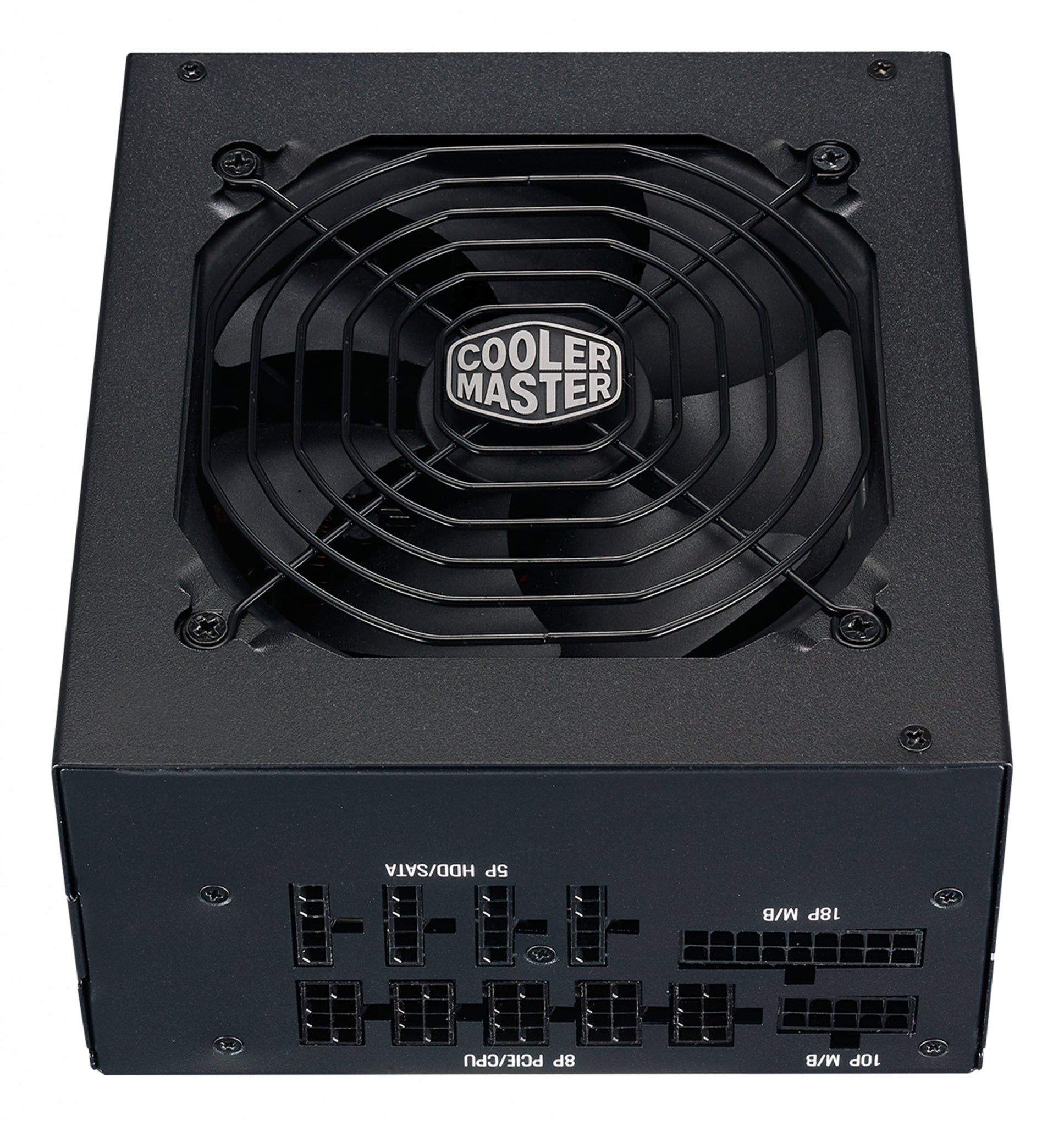

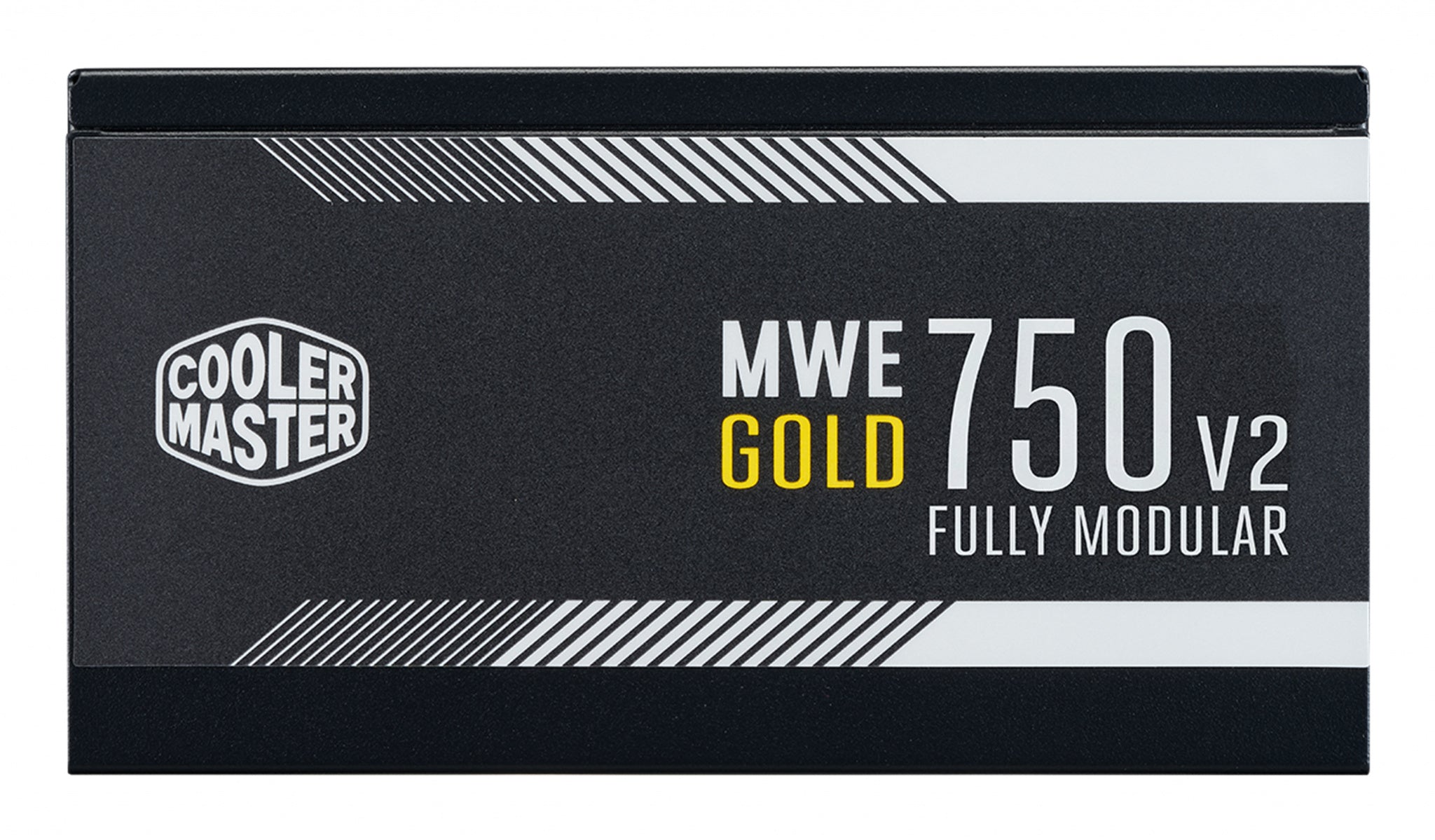

Cooler Master MWE Gold 750 V2 ATX 3.0 Ready power supply unit 750 W 24-pin ATX Black
Couldn't load pickup availability
- ATX 3.0 support
- A 90-degree 12VHPWR adapter cable
- High temperature resilience
- High-quality Japanese capacitors
- Fully modular cabling
LEVEL UP YOUR POWER
Cooler Master presents the MWE Gold V2 ATX 3.0 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
ATX 3.0 support & a durable 12VHPWR adapter cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.
Three 8-pin connectors
Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.
CERTIFIED EFFICIENCY
The MWE Gold V2 ATX 3.0 Ready is certified to achieve more than 90% efficiency at typical loads.
High temperature resilience

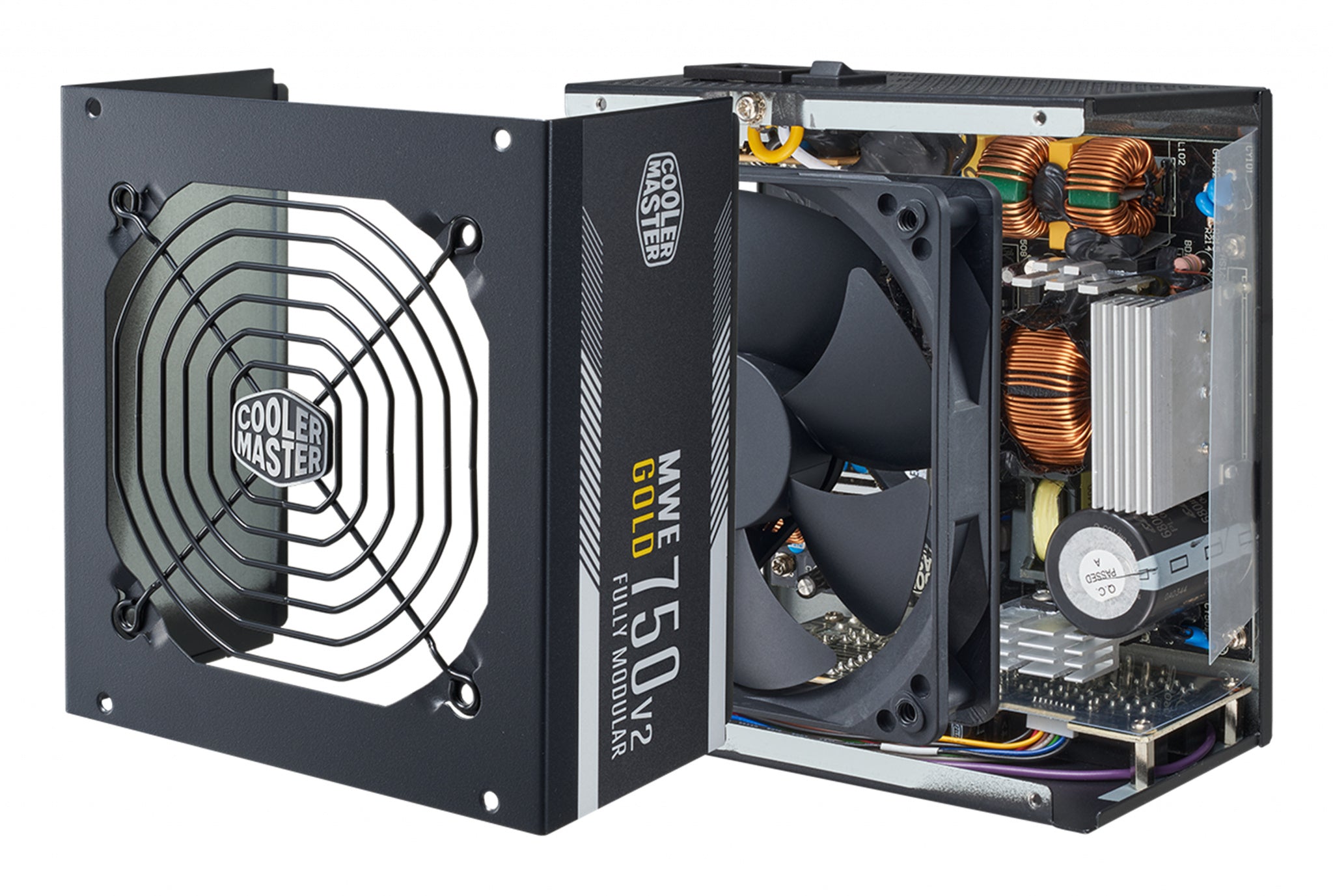

A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.

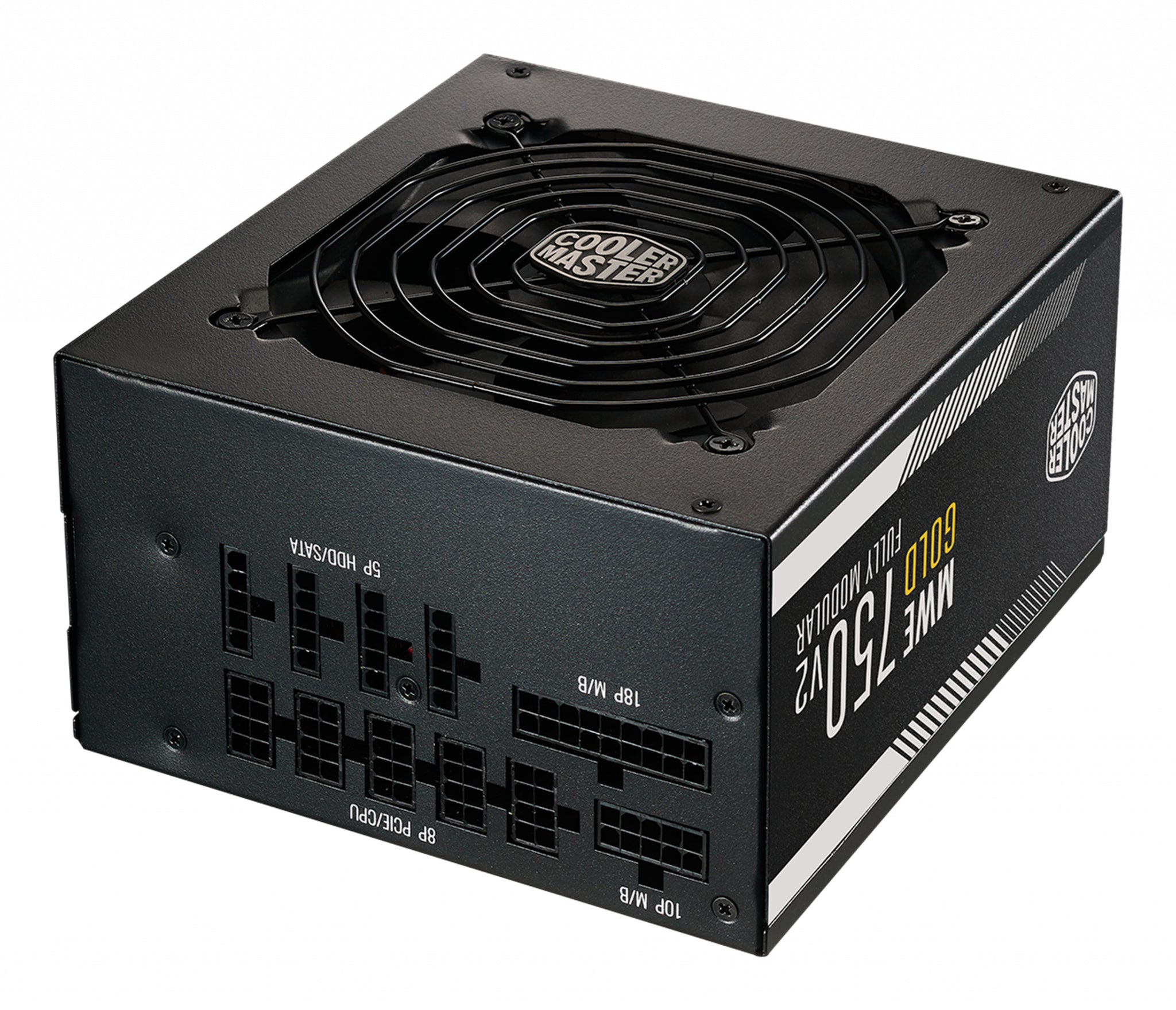

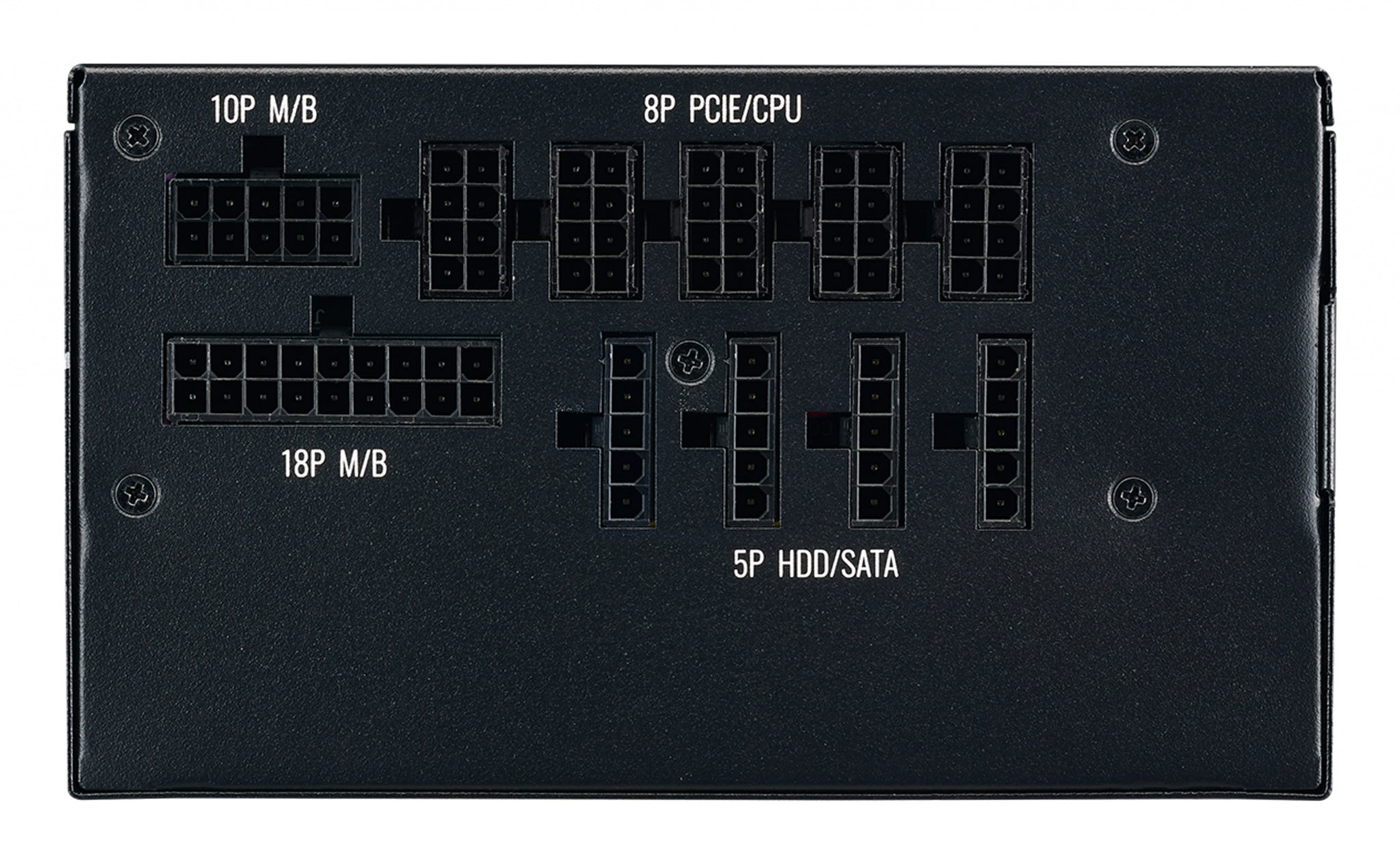

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 5 - 10 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express power cable length | 67 cm |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 860,740,620,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 500,620,740,860 mm |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HDB |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC/Server |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
|---|---|
| Certification | ErP 2014 Lot 3 |
| Compliance certificates | BIS, BSMI, CCC, EAC, Federal Communications Commission (FCC), RCM, cTUVus, UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 2.62 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.9 kg |
| Package height | 120 mm |
| Package depth | 310 mm |
| Package width | 194 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 620 mm |
| Master (outer) case width | 325 mm |
| Master (outer) cases per pallet | 16 pc(s) |
| Other features | |
|---|---|
| EPS cable length | 65 cm |
