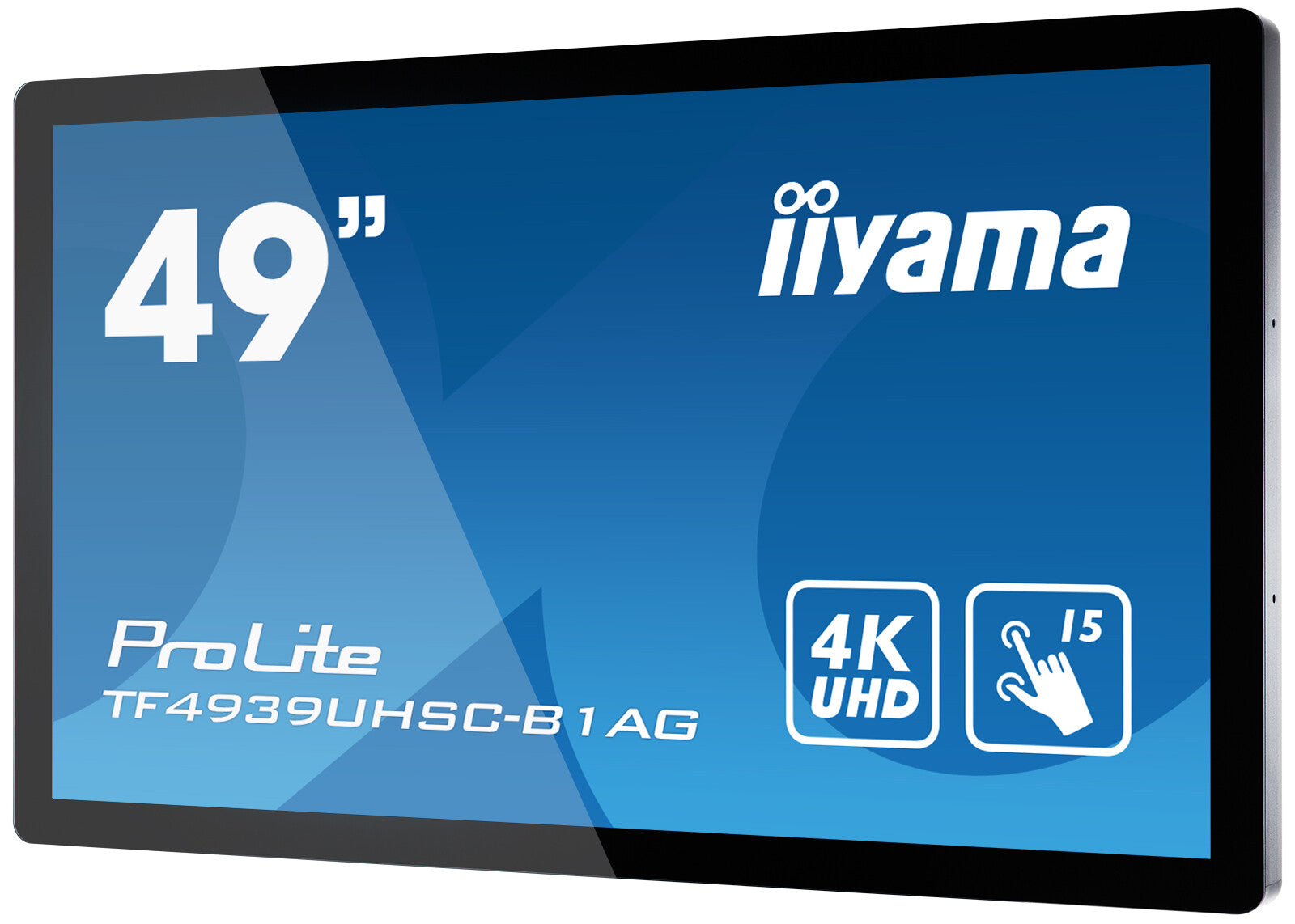

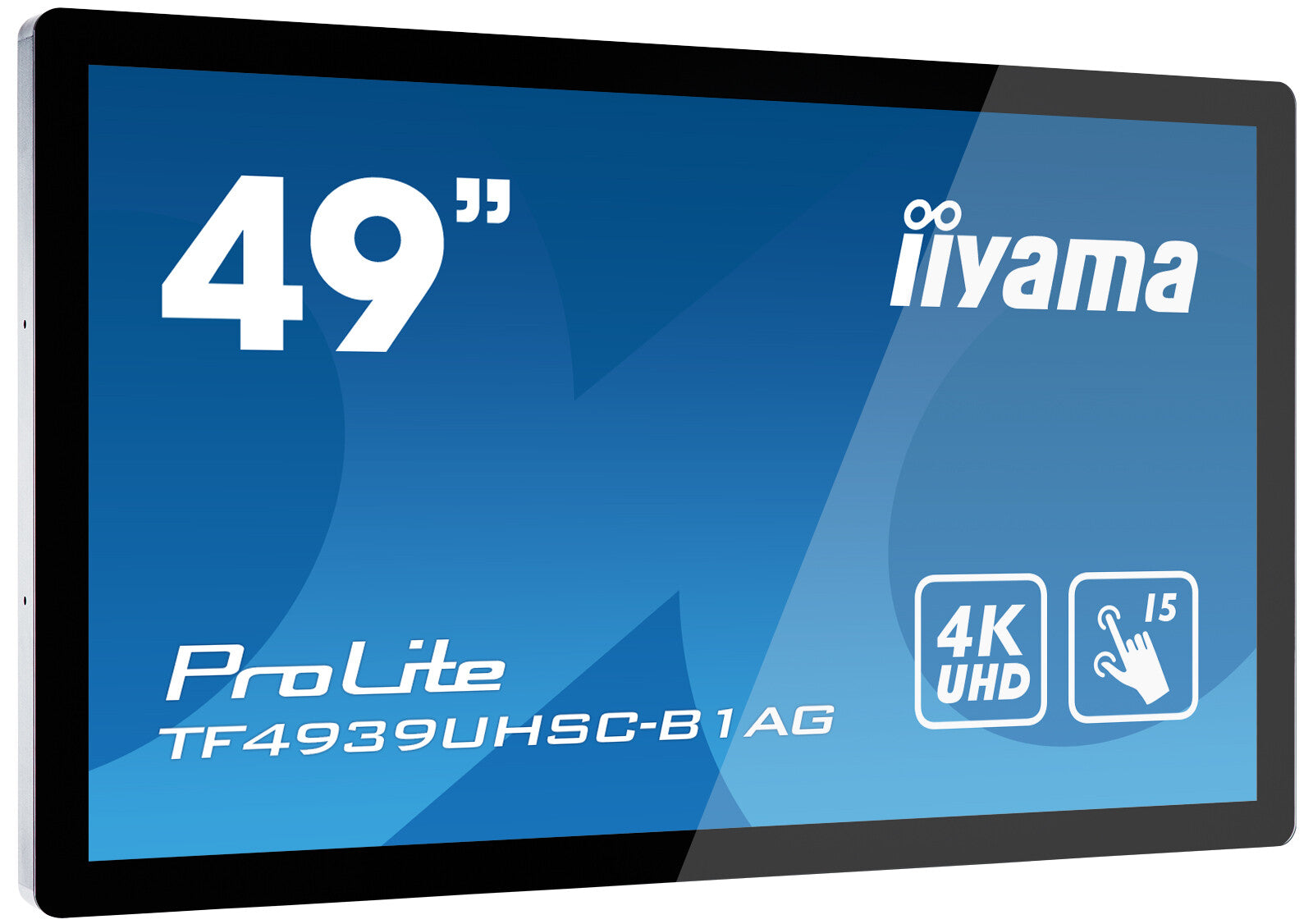

iiyama ProLite TF4939UHSC-B1AG computer monitor 124.5 cm (49") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Multi-user Black
£2,767.99
Couldn't load pickup availability
- 124.5 cm (49") Black
- Built-in speaker(s)
- HDMI version: 1.4/2.0 DisplayPorts quantity: 1 DisplayPort version: 1.2
- Screen shape: Flat
- Maximum refresh rate: 60 Hz Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
- 3840 x 2160 pixels 4K Ultra HD Panel type: IPS
- Energy efficiency class (SDR): G ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE

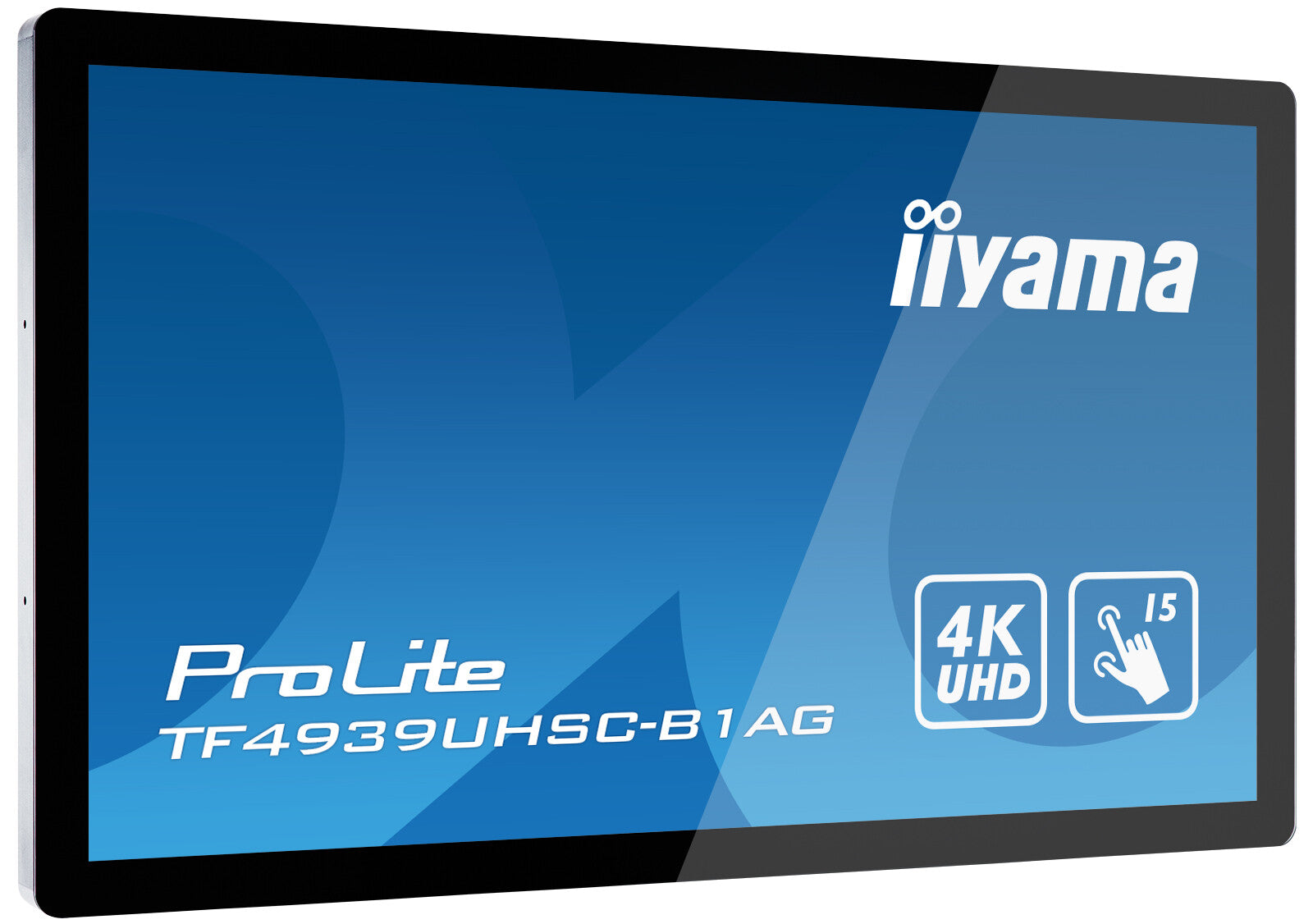

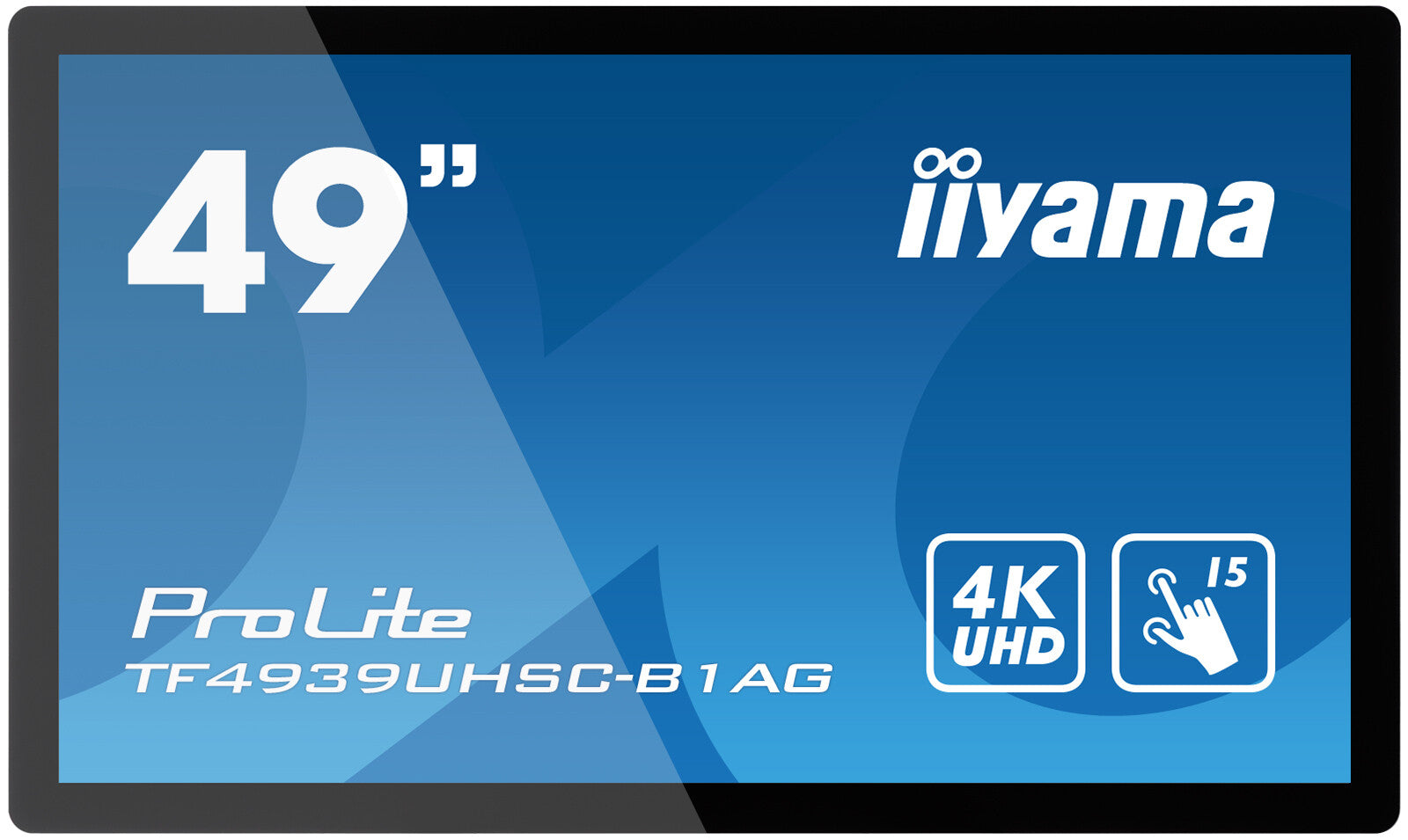

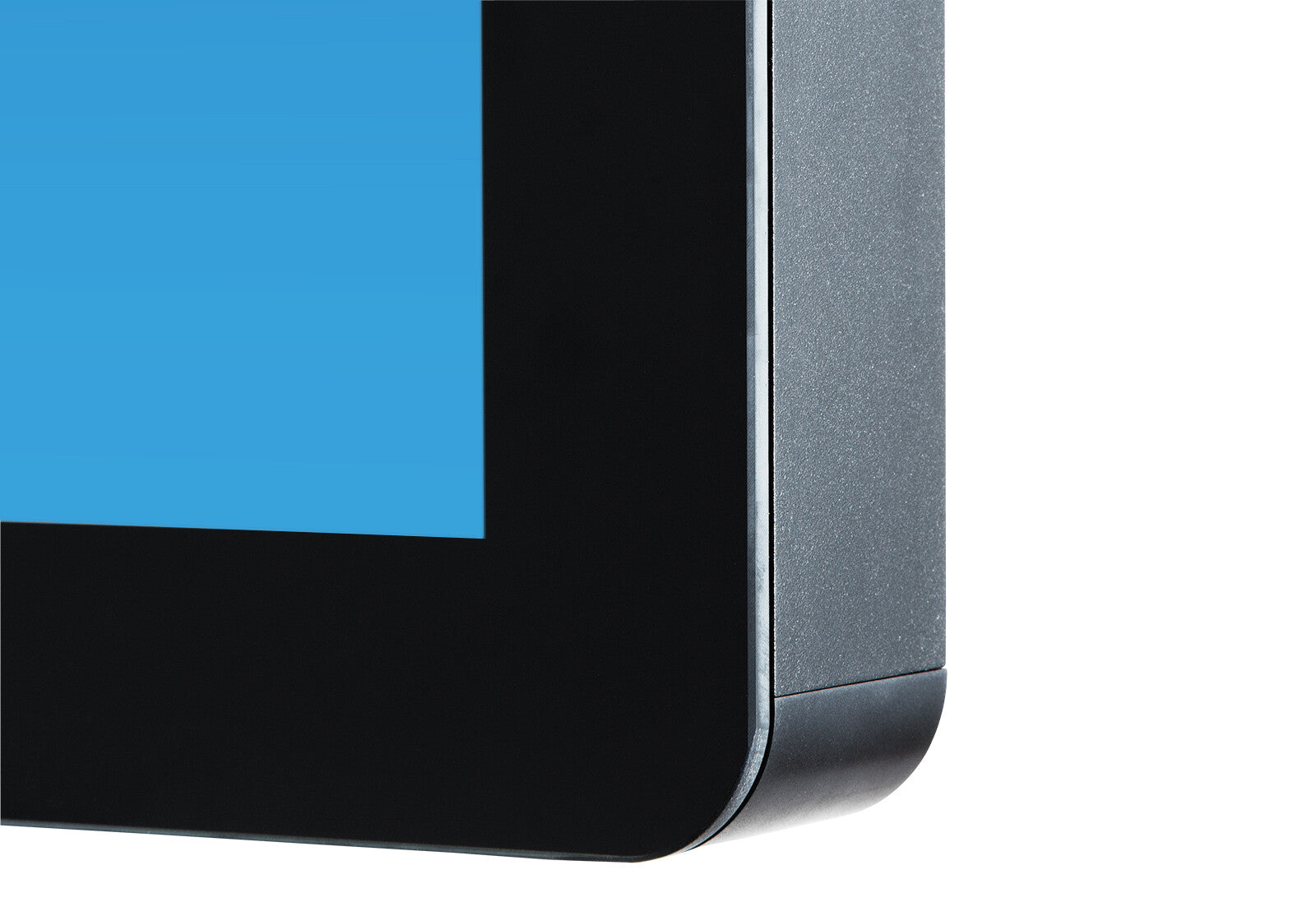

The 4K UHD (3840x2160) Open Frame TF4939UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF4939UHSC-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.
| Display | |
|---|---|
| Display diagonal | 124.5 cm (49") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 15 |
| Display brightness (typical) | 500 cd/m² |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1100:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2796 x 0.2796 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 107.6 cm |
| Viewable size, vertical | 60.6 cm |
| Digital vertical frequency | 30 - 83 Hz |
| Display diagonal (metric) | 123 cm |
| Surface hardness | 7H |
| Colour depth | 8 bit |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Palm rejection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 16 W |
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Front bezel colour | Black |
| Glass thickness | 3 mm |
| Ports & interfaces | |
|---|---|
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | Yes |
| Audio output | 1 |
| HDCP | Yes |
| RS-232C | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|

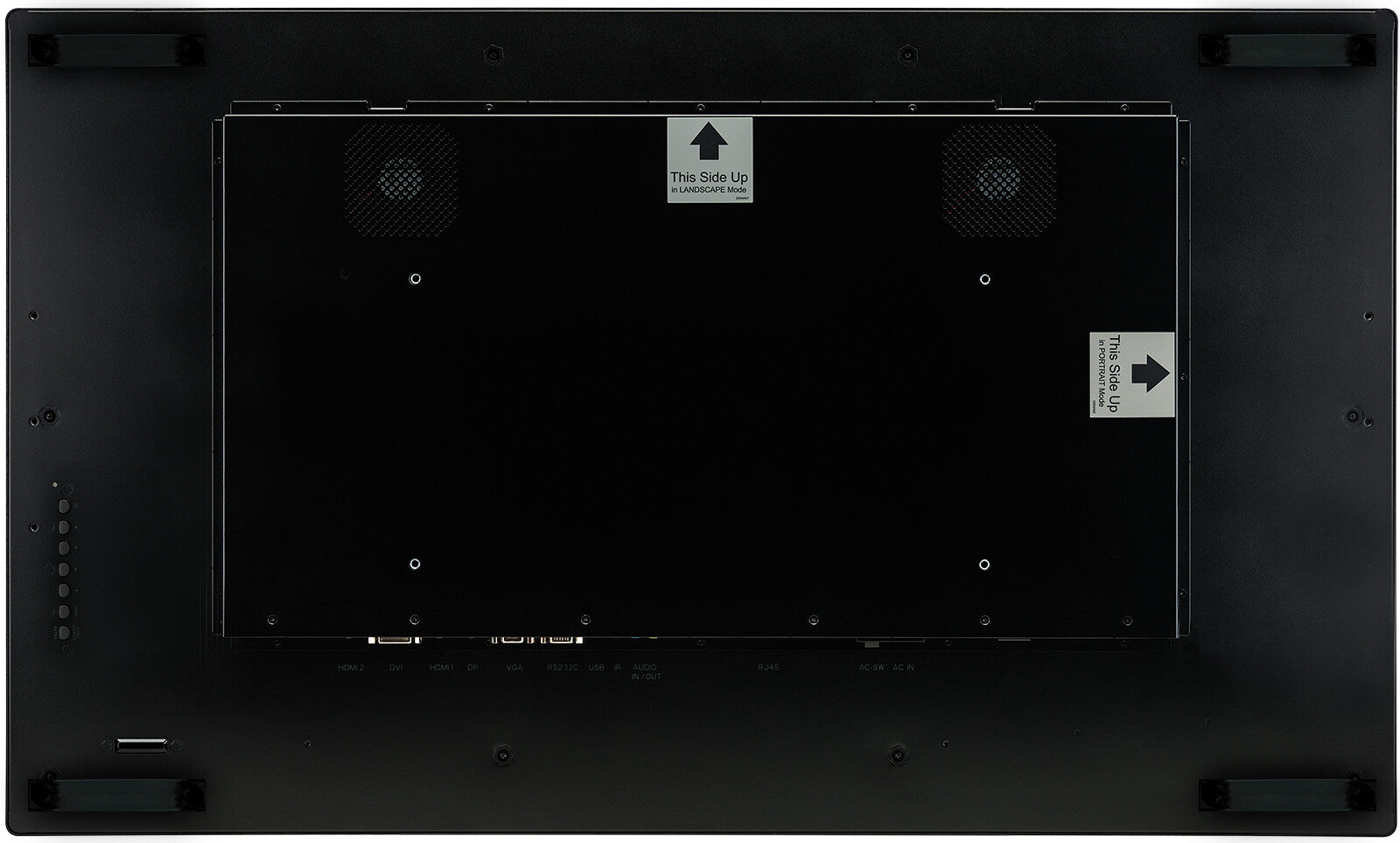

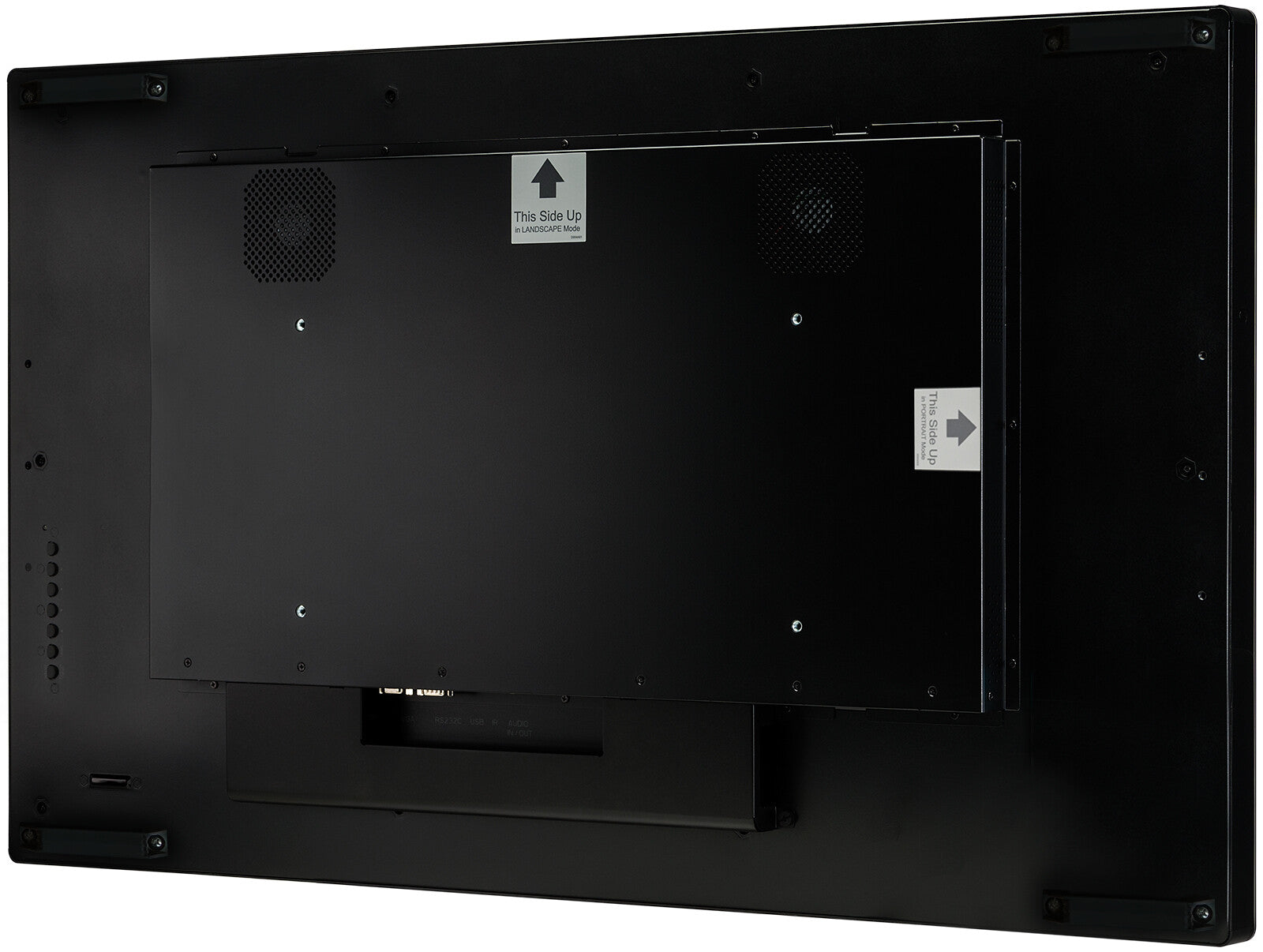

| VESA mounting | Yes |
| Panel mounting interface | 400 x 200 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Dutch, Polish, Russian |
| Number of OSD languages | 8 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 132.6 kWh |
| Power consumption (typical) | 135 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 1130 mm |
| Depth (with stand) | 72.5 mm |
| Height (with stand) | 660.5 mm |
| Weight (with stand) | 31 kg |
| Width (without stand) | 1130 mm |
| Depth (without stand) | 72.5 mm |
| Height (without stand) | 660.5 mm |
| Weight (without stand) | 31 kg |
| Bezel width (side) | 2.7 cm |
| Bezel width (top) | 2.7 cm |
| Bezel width (bottom) | 2.7 cm |
| Packaging data | |
|---|---|
| Package width | 1280 mm |
| Package depth | 245 mm |
| Package height | 835 mm |
| Package weight | 36.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 3 mm |
| Active display area (W x H) | 1076 x 606.5 mm |
| Bezel width | 2.7 cm |

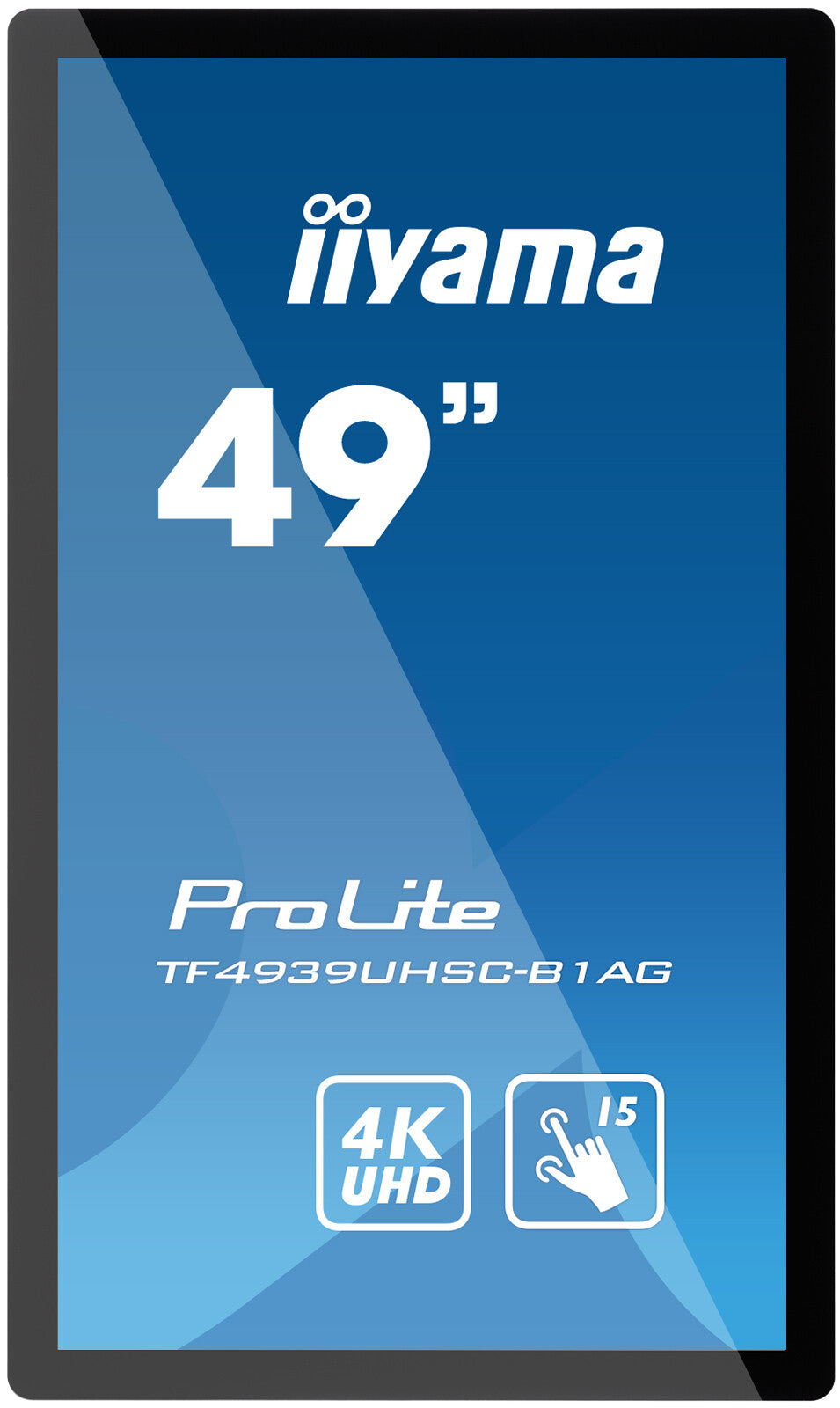

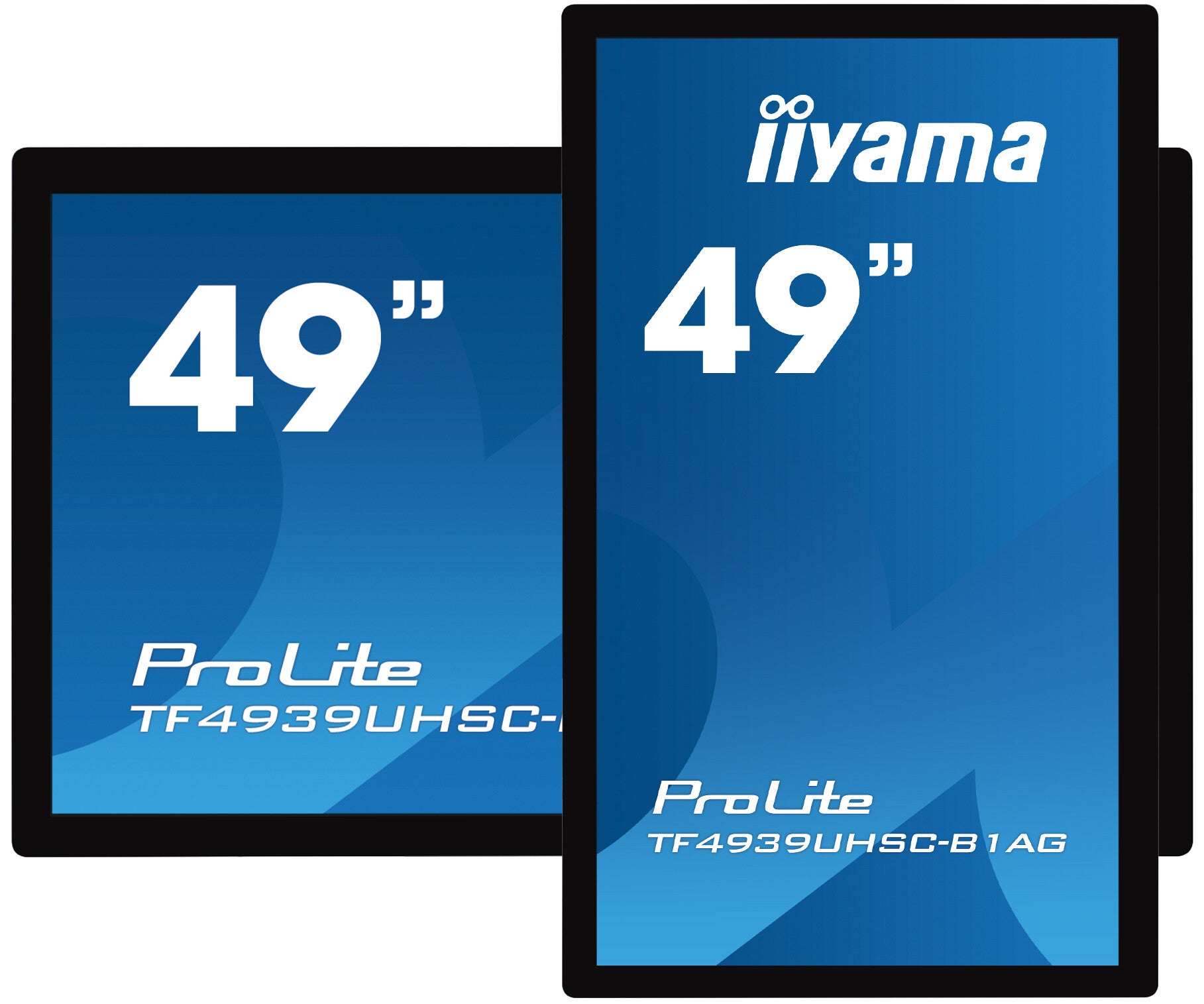

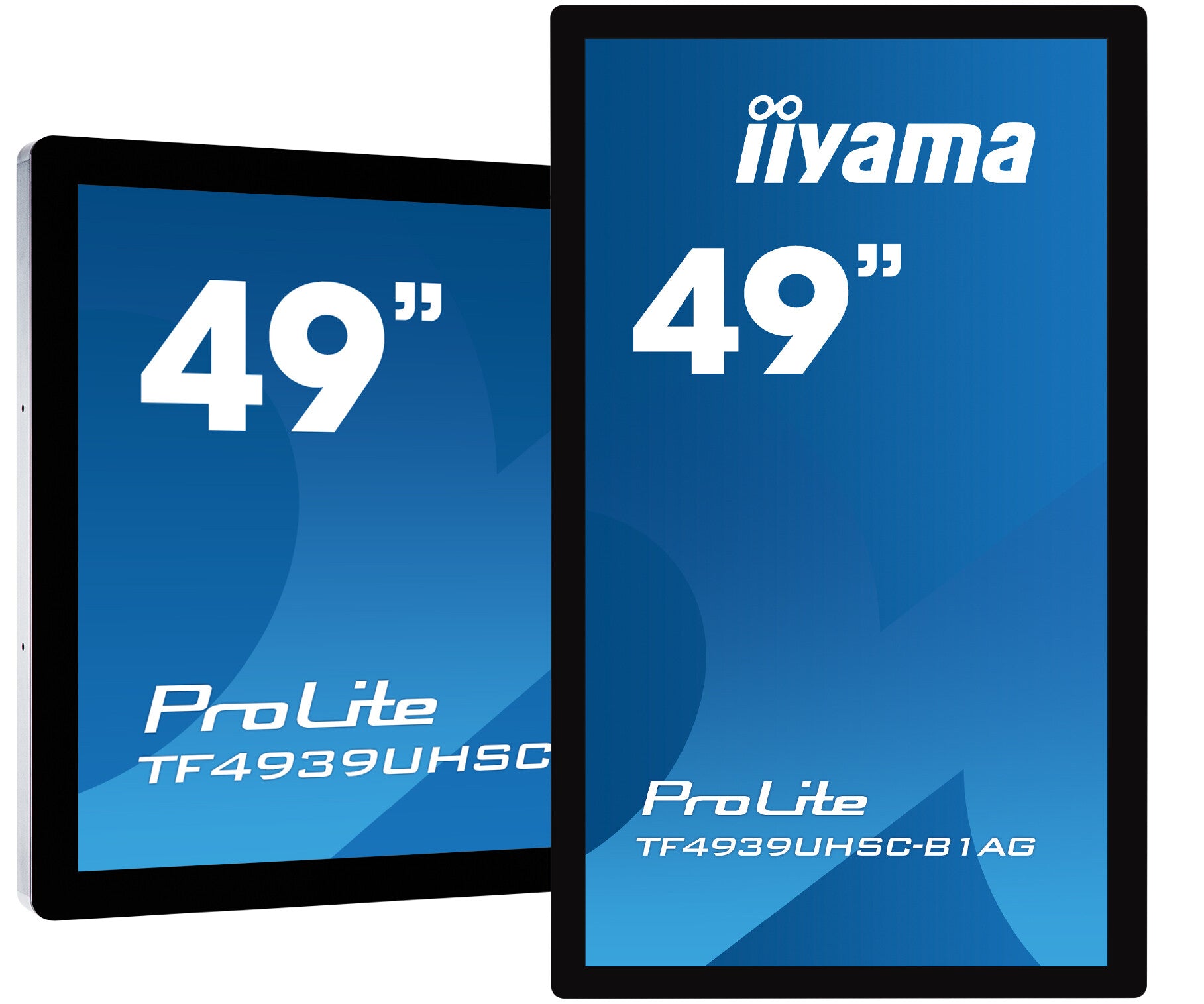

| Placement supported | Horizontal/Vertical |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Depth | 72.5 mm |
| Width | 1130 mm |
| Height | 660.5 mm |
| Weight | 31 kg |
| Display viewable area (HxV) | 1076 x 606.5 mm |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Control panel | power, menu, exit, up, down |
| User controls | picture (backlight, contrast, brightness, sharpness, H/V-position, phase, Chroma, adjust screen, colour temp., picture mode), sound (treble, bass, balance, volume, mute, speaker, audio source), screen (aspect, Touch feature, reset), settings (OSD time, OSD H/V position, language, schedule, power save, control setting, network setting, advanced, information, all reset) |
| Touch method | stylus, finger, glove (latex) |
| Logistics data | |
|---|---|
| Products per pallet | 8 pc(s) |
| Pallet net width | 130 cm |
| Pallet net length | 179.6 cm |
| Pallet net height | 125 cm |
| Harmonized System (HS) code | 85285210 |
