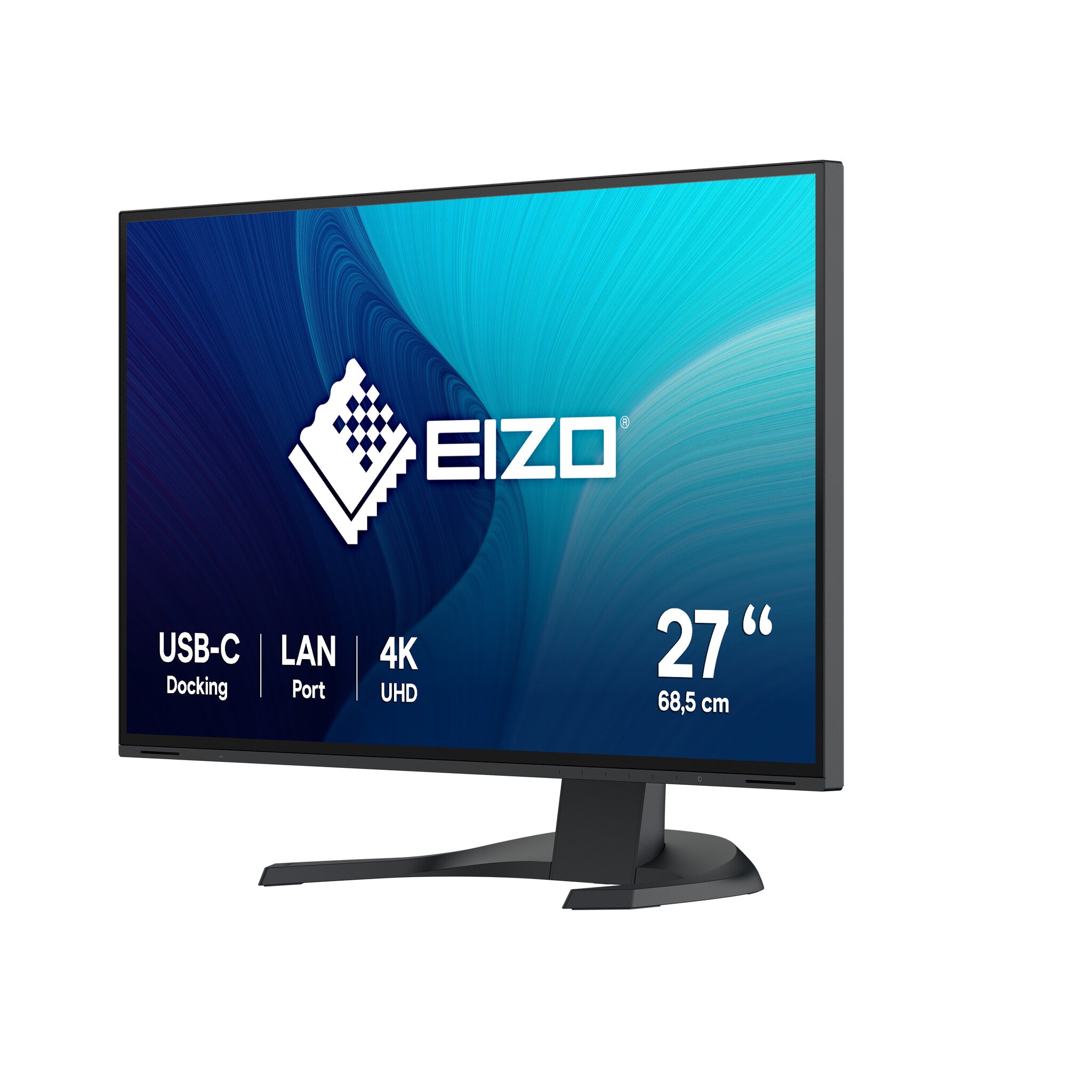

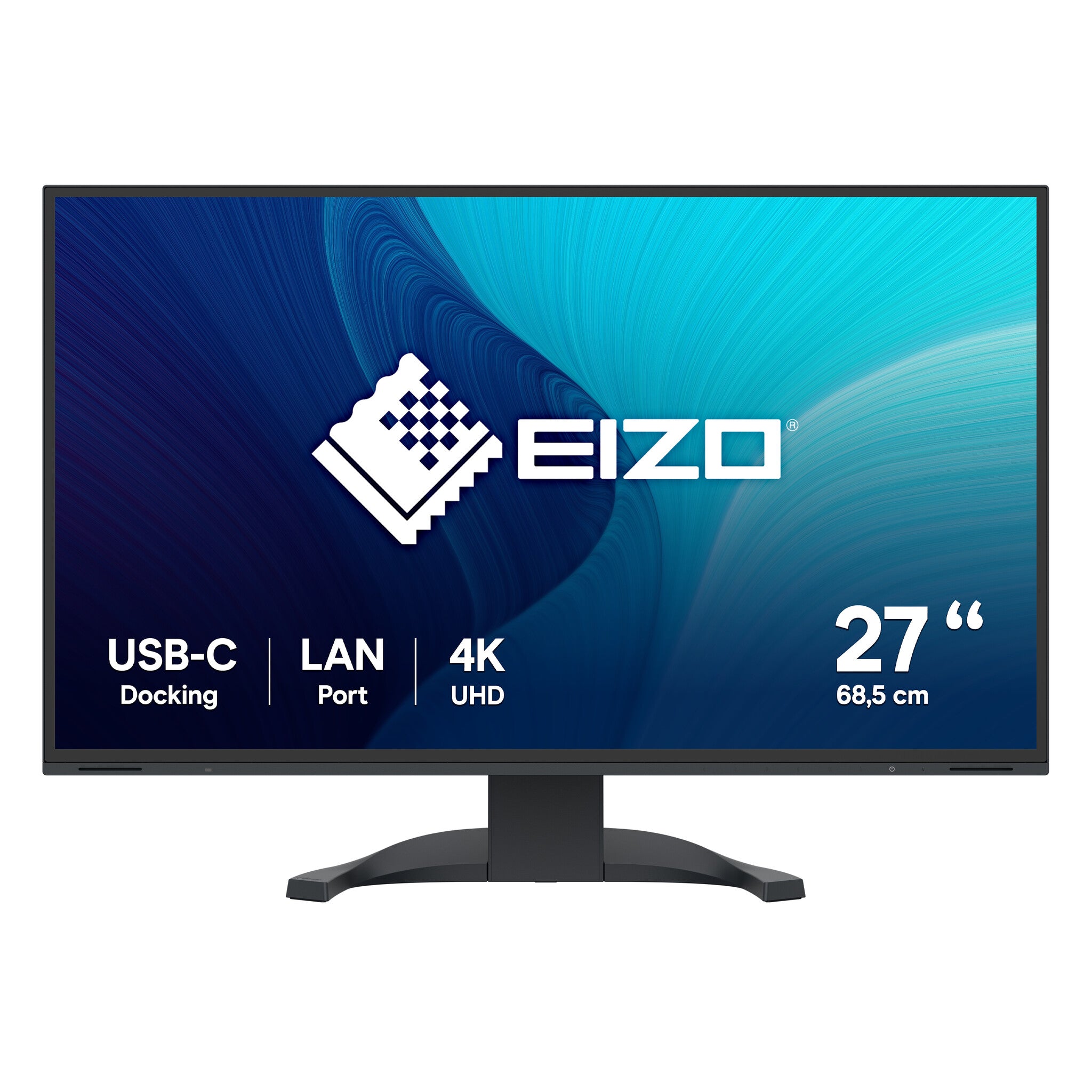

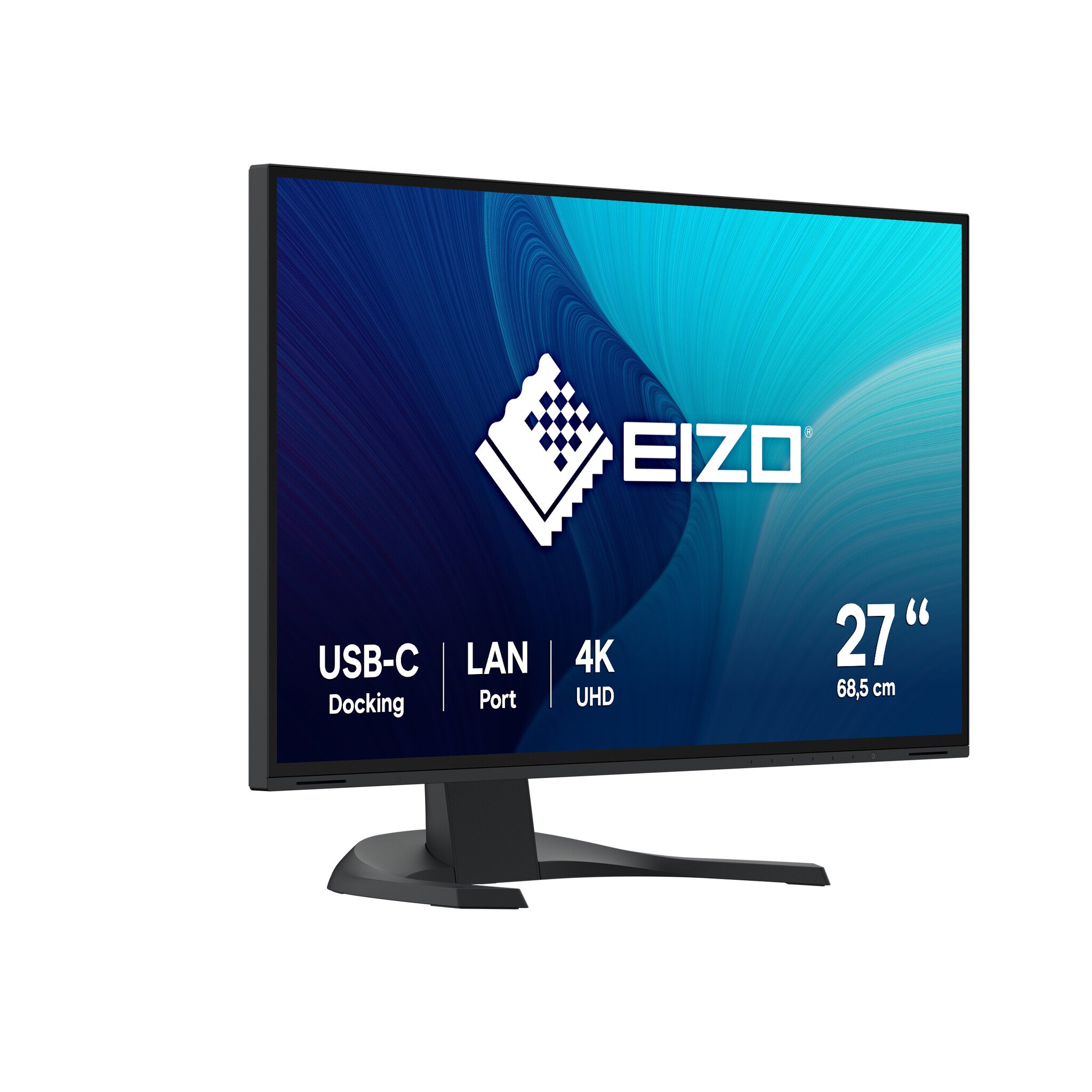

EIZO FlexScan EV2740X-BK computer monitor 68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LCD Black
£809.99
Couldn't load pickup availability
- 27" 4K monitor with large-screen display and fine 163 ppi resolution
- Docking function thanks to USB-C port with DisplayPort signal channel, LAN and power supply up to 94 watts
- Choice of black or white housing color
- Extremely slim case frame: super-compact and ultra-chic design
- Contrast 2000:1, brightness 350 cd/m2, 178° viewing angle
- Auto EcoView and EcoView Optimizer for maximum energy savings and optimal ergonomics
- Signal inputs: USB-C (DisplayPort Alt Mode), DisplayPort, 2 x HDMI
- Picture-by-Picture for 2 signal sources and KVM switch function
- Demonstrably produced in an environmentally and socially responsible manner
The EV2740X makes a clear statement for performance. 4K UHD resolution, USB-C docking and 94 W Power Delivery are convincing. Its 163 dpi display quality ensures crisp graphics and text. Docking convenience via its USB-C interface makes the FlexScan EV2740X the ideal display solution for professional office or CAD applications. Switching smoothly between office and home office is a breeze thanks to the USB-C port. Especially notebook and tablet users benefit from this. A single connection to the computer is sufficient for charging power, video signal, audio and USB data including network. The casing is available in black or white; even the cables are color-coordinated. The monitor is equipped with two HDMI ports as well as one DisplayPort and USB-C port each. With its two USB upstream ports, the EV2740X can be used as a keyboard/mouse switcher. For example, if both a home PC and a company computer are connected to the monitor in the home office, both computers can be operated with a single keyboard and mouse. When using its Picture-by-Picture function, it even displays two signal sources simultaneously.
| Display | |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 3840 x 2160 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 350 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 720 x 400, 1280 x 1024 (SXGA), 3840 x 2160, 800 x 600 (SVGA), 2560 x 1440, 1600 x 1200 (UXGA), 1024 x 768 (XGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 2000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.155 x 0.155 mm |
| Pixel density | 163 ppi |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Digital horizontal frequency | 31 - 135 kHz |
| Digital vertical frequency | 29 - 61 Hz |
| Display diagonal (metric) | 68.5 cm |
| Colour gamut standard | sRGB |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
|---|---|
| Market positioning | Office |
| Product colour | Black |
| Feet colour | Black |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 94 W |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Headphone out | Yes |
| Headphone outputs | 2 |
| Headphone connectivity | 3.5 mm |
| Built-in KVM switch | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 19.5 cm |
| Pivot | Yes |
| Pivot angle | 0 - 90° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Swedish |
| Power | |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.35 W |
| Power consumption (max) | 186 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 612 mm |
| Depth (with stand) | 242 mm |
| Height (with stand) | 565 mm |
| Weight (with stand) | 8.2 kg |
| Width (without stand) | 612 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 359 mm |
| Weight (without stand) | 5.5 kg |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Quick start guide | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO |
| Sustainability compliance | Yes |
| General | |
|---|---|
| Product family | FlexScan |
| Other features | |
|---|---|
| Picture-by-Picture (PbP) | Yes |
| Look-up table (LUT) bit depth | 14 |
| Automatic brightness control | Yes |
| Compliance certificates | CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE |
| Warranty period | 5 year(s) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 10, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
