Lenovo ThinkPad X1 Yoga (4th Gen) Intel® Core™ i5 i5-8265U Hybrid (2-in-1) 35.6 cm (14") Touchscreen Full HD 8 GB LPDDR3-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Grey
£1,637.99
Couldn't load pickup availability
- Intel Core i5-8265U (4C/8T, 1.6/3.9GHz, 6MB)
- 8GB LPDDR3-2133
- 256GB SSD M.2 2280 PCIe 3.0x4 NVMe Opal2
- Intel UHD Graphics
- Windows 10 Pro 64
The ultimate in flexibility

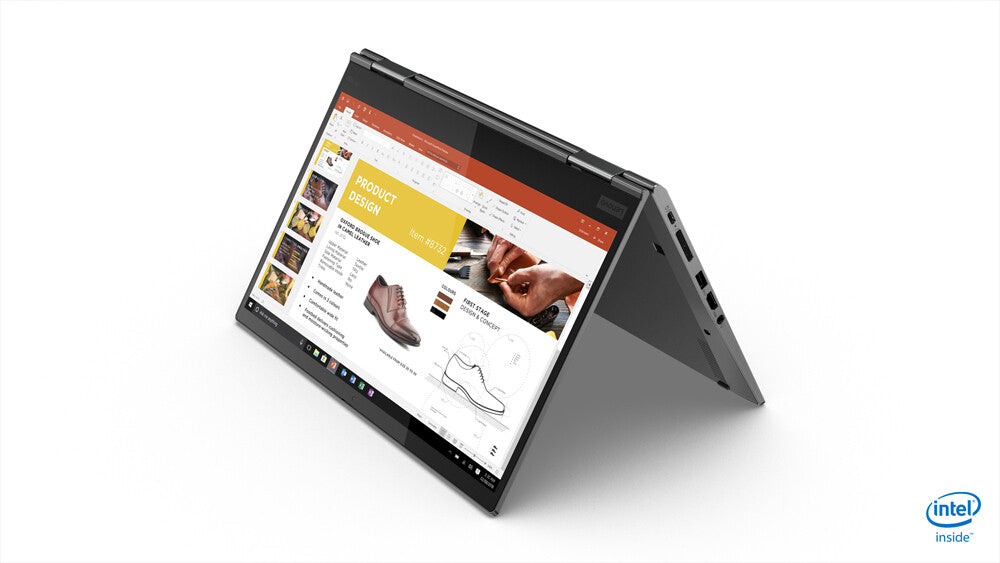

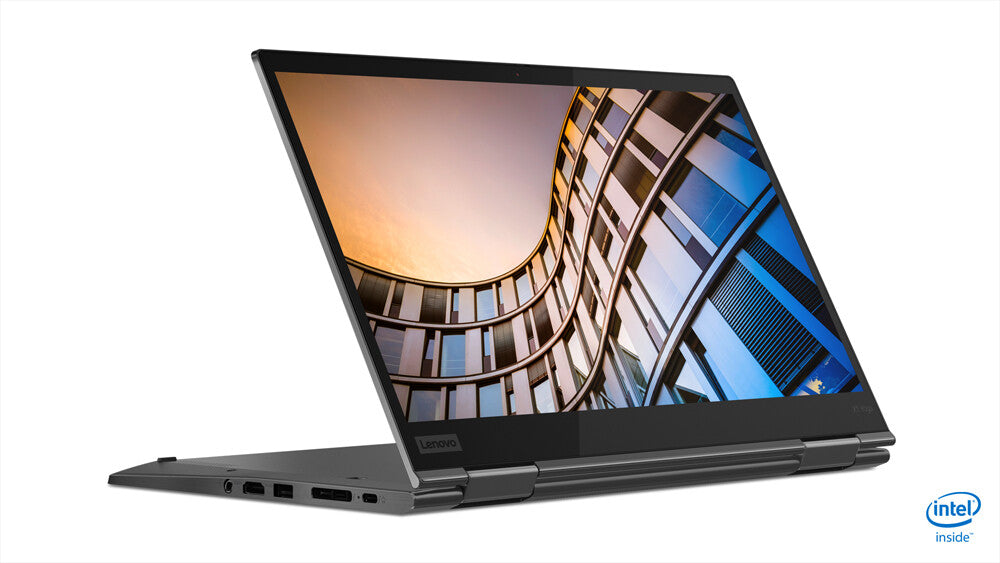

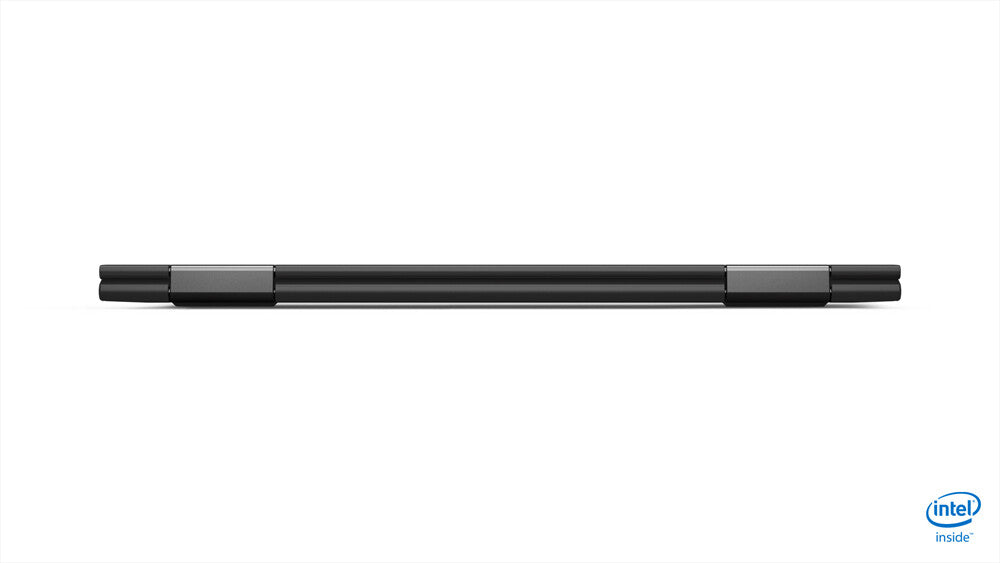

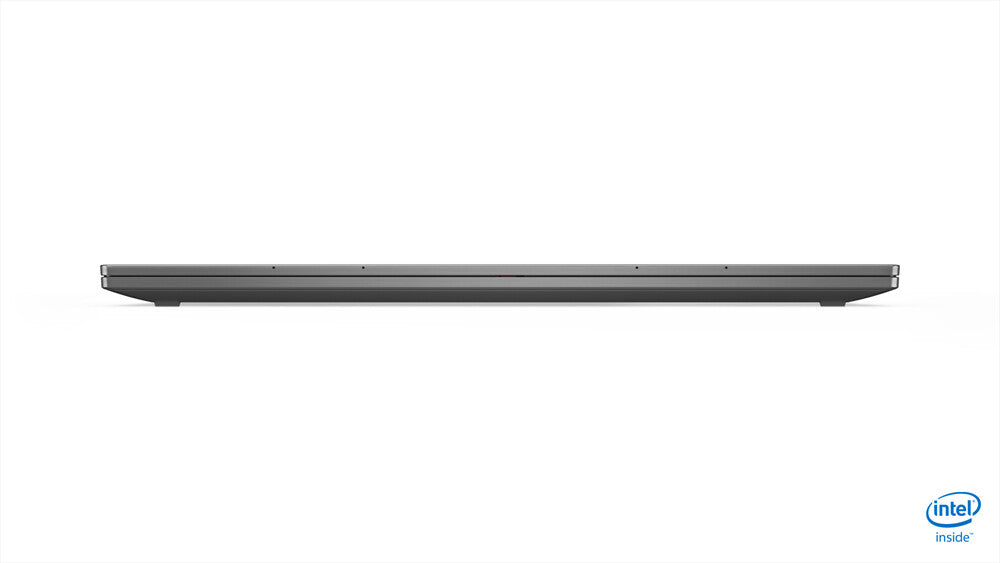

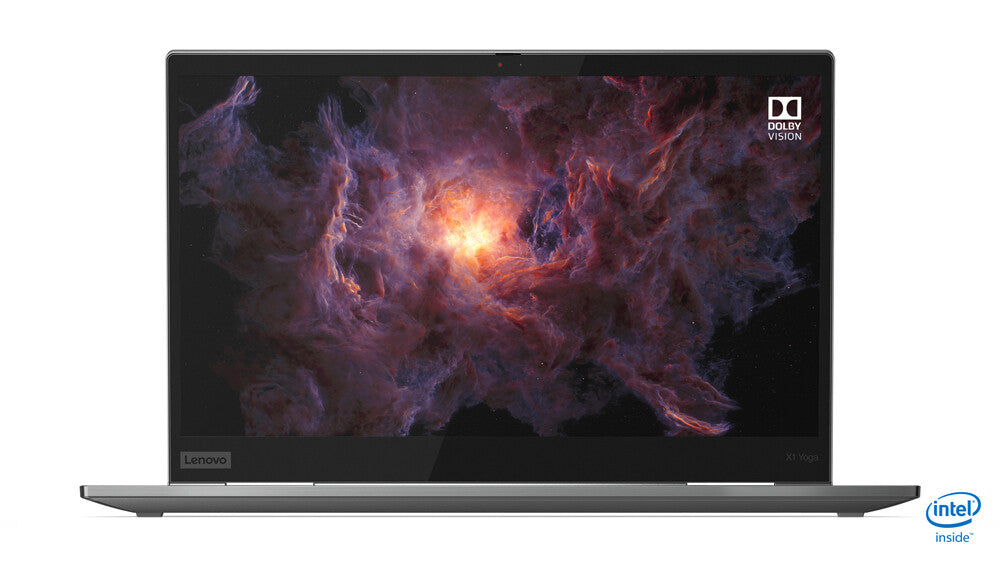

Thinner. Lighter. More secure. The ThinkPad X1 Yoga Gen 4 features the renowned 360-degree hinge to accommodate your style. This 14" 2-in-1 laptop features a built-in suite of ThinkShield security features to protect all your critical data. And with the choice of a 4K display with Dolby Vision™ and Dolby Atmos™ Speaker System, you can take your creativity—and your entertainment—to new levels.
| Design | |
|---|---|
| Housing material | Aluminium, Magnesium |
| Form factor | Convertible (Folder) |
| Colour name | Iron Gray |
| Product colour | Grey |
| Product type | Hybrid (2-in-1) |
| Display | |
|---|---|
| Contrast ratio (typical) | 800:1 |
| NTSC coverage (typical) | 72% |
| Colour gamut | 72% |
| Dual-screen | No |
| Display brightness | 400 cd/m² |
| Native aspect ratio | 16:9 |
| LED backlight | Yes |
| Panel type | IPS |
| Touch technology | Multi-touch |
| HD type | Full HD |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 2x2 |
| Tjunction | 100 °C |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 1.8 GHz |
| Thermal Design Power (TDP) | 15 W |
| Bus type | OPI |
| Processor codename | Whiskey Lake |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor socket | BGA 1528 |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| System bus rate | 4 GT/s |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor model | i5-8265U |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 8 GB |
| Memory clock speed | 2133 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR3-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | NVMe, PCI Express |
| NVMe | Yes |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card base frequency | 300 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 4 |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC3286 |
| Camera | |
|---|---|
| Auto focus | No |
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Installed |
| Near Field Communication (NFC) | Yes |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| 4G standard | LTE-A |
| Mobile network generation | 4G |
| Mobile network connection | Yes |

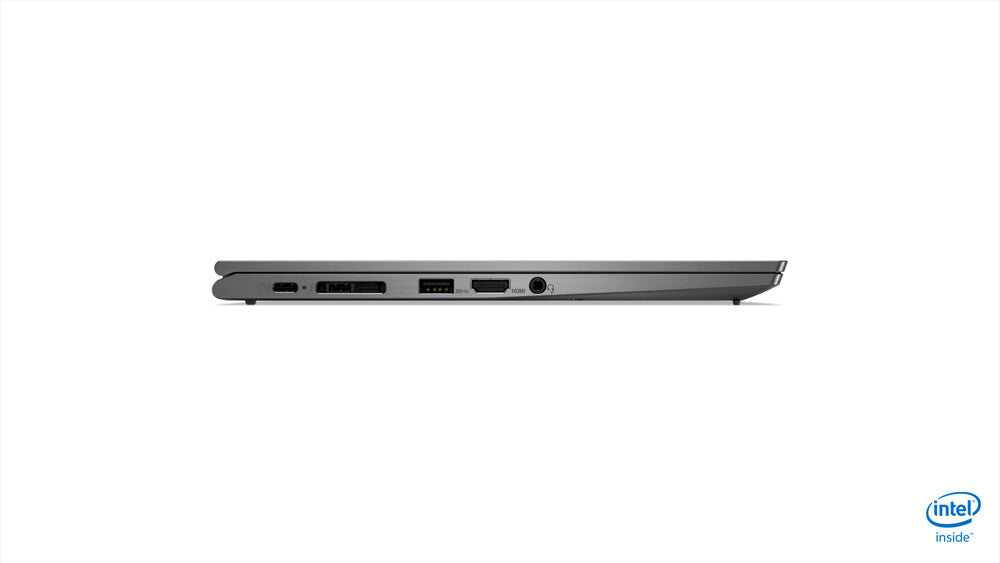

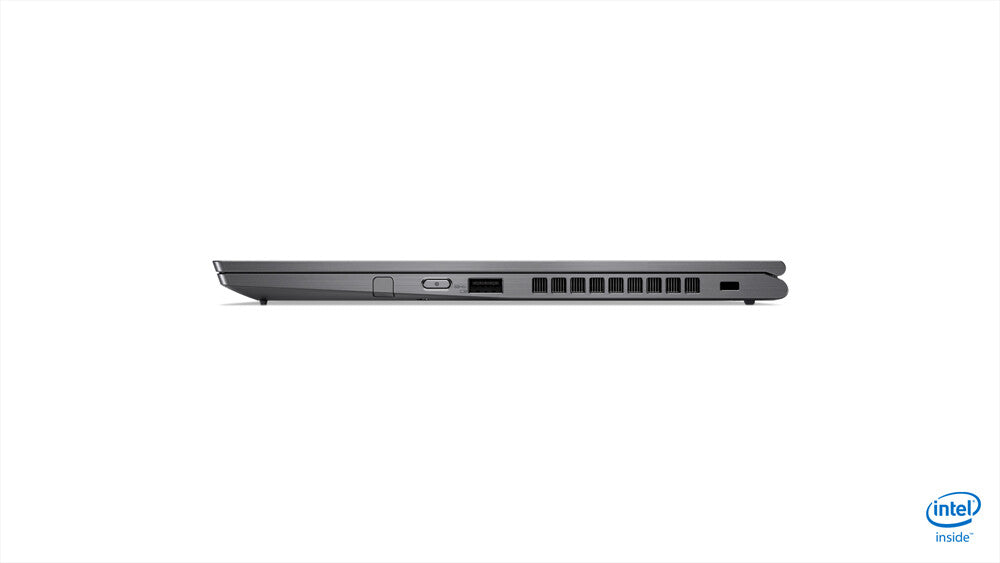

| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Docking connector | Yes |
| Combo headphone/mic port | Yes |
| HDMI version | 1.4b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46x24 mm |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Processor ARK ID | 149088 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Idle States | Yes |
| Battery | |
|---|---|
| Fast charging | Yes |
| Battery life (max) | 18.1 h |
| Battery capacity | 51 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Password protection type | HDD, Power on, Supervisor |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Smart card reader | No |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Height | 15.5 mm |
| Depth | 218 mm |
| Width | 323 mm |
| Weight | 1.36 kg |
| General | |
|---|---|
| Product family | ThinkPad |
| Product series | X |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Other features | |
|---|---|
| Maximum internal memory (64-bit) | 8 GB |
| 3D | No |
