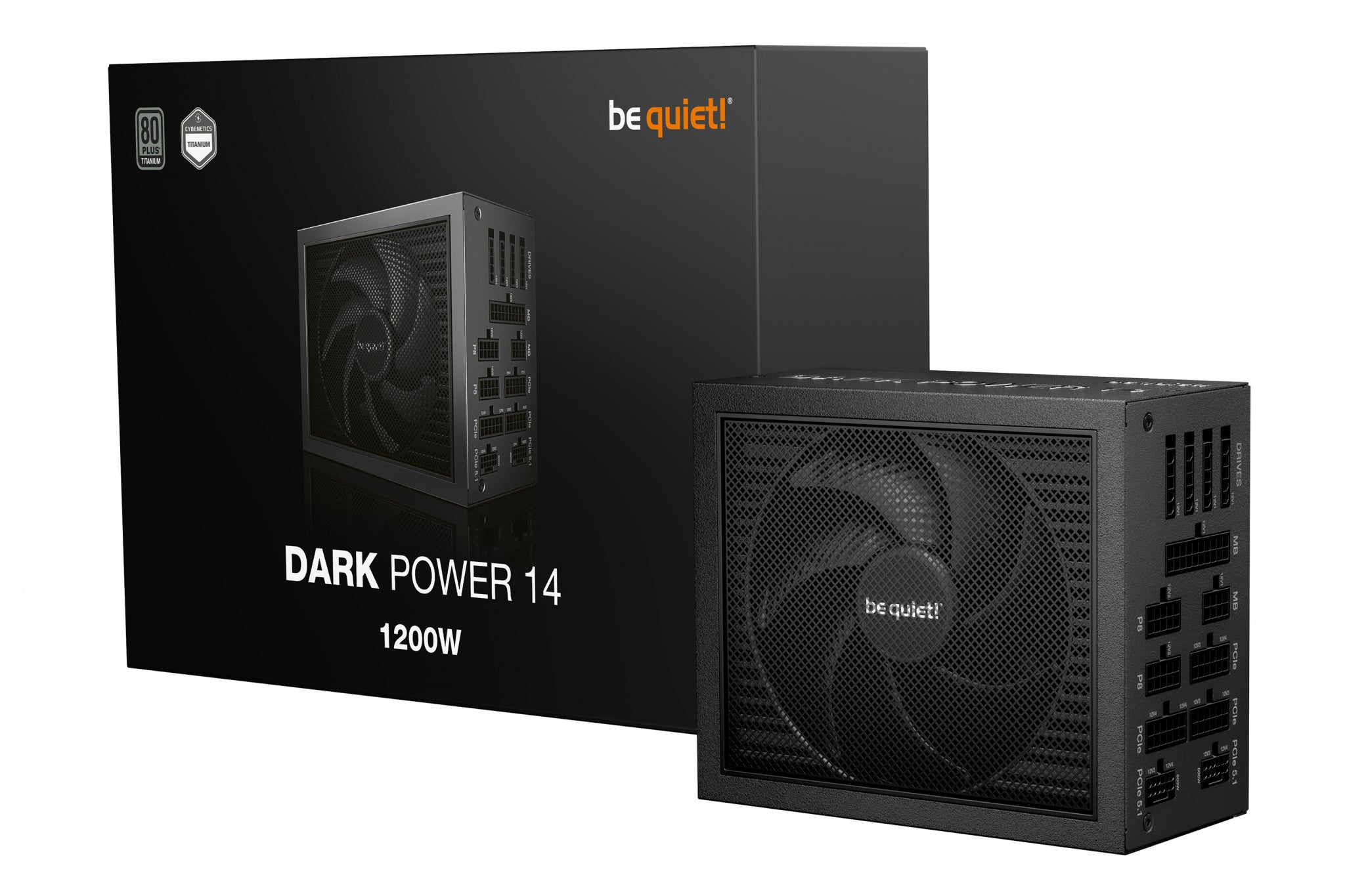

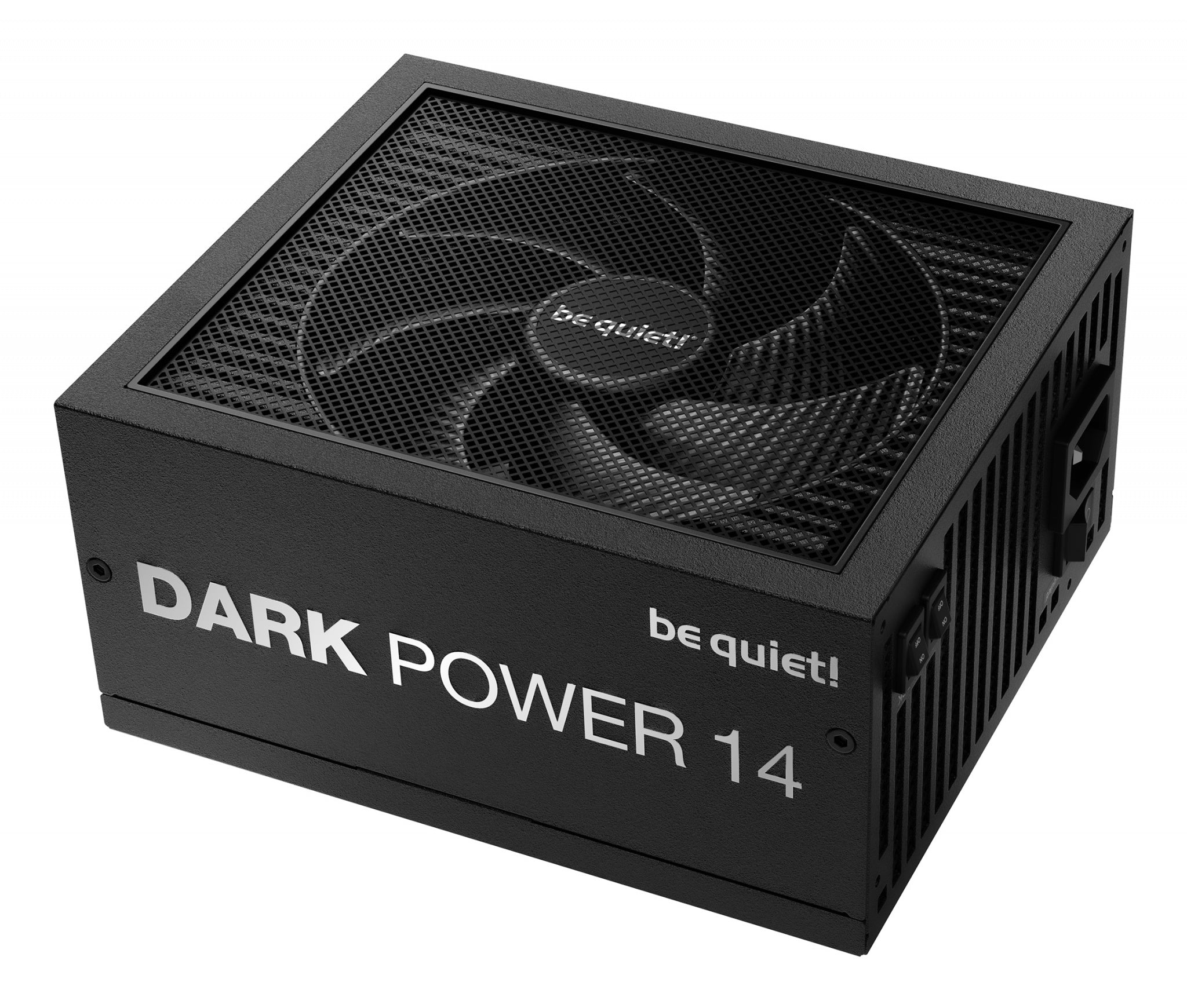

be quiet! Dark Power 14 1200 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
£223.99
Couldn't load pickup availability
- 1200 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Titanium
- Active 13.5 cm 0 - 2100 RPM
- Black
Dark Power 14 1200W features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.42 %)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Active and semi-passive cooling can be selected with the push of a button
- Aluminum heat sink to support the semi-passive cooling concept and improve longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
I am Titanium!
Dark Power 14 1200W is certified with 80 PLUS® Titanium and Cybenetics Titanium for a stunning energy efficiency rating of up to 95.4%. This provides lots of benefits for a high-end system, including less power consumption and an overall cooler and quieter operation.
With ATX 3.1 Compatibility

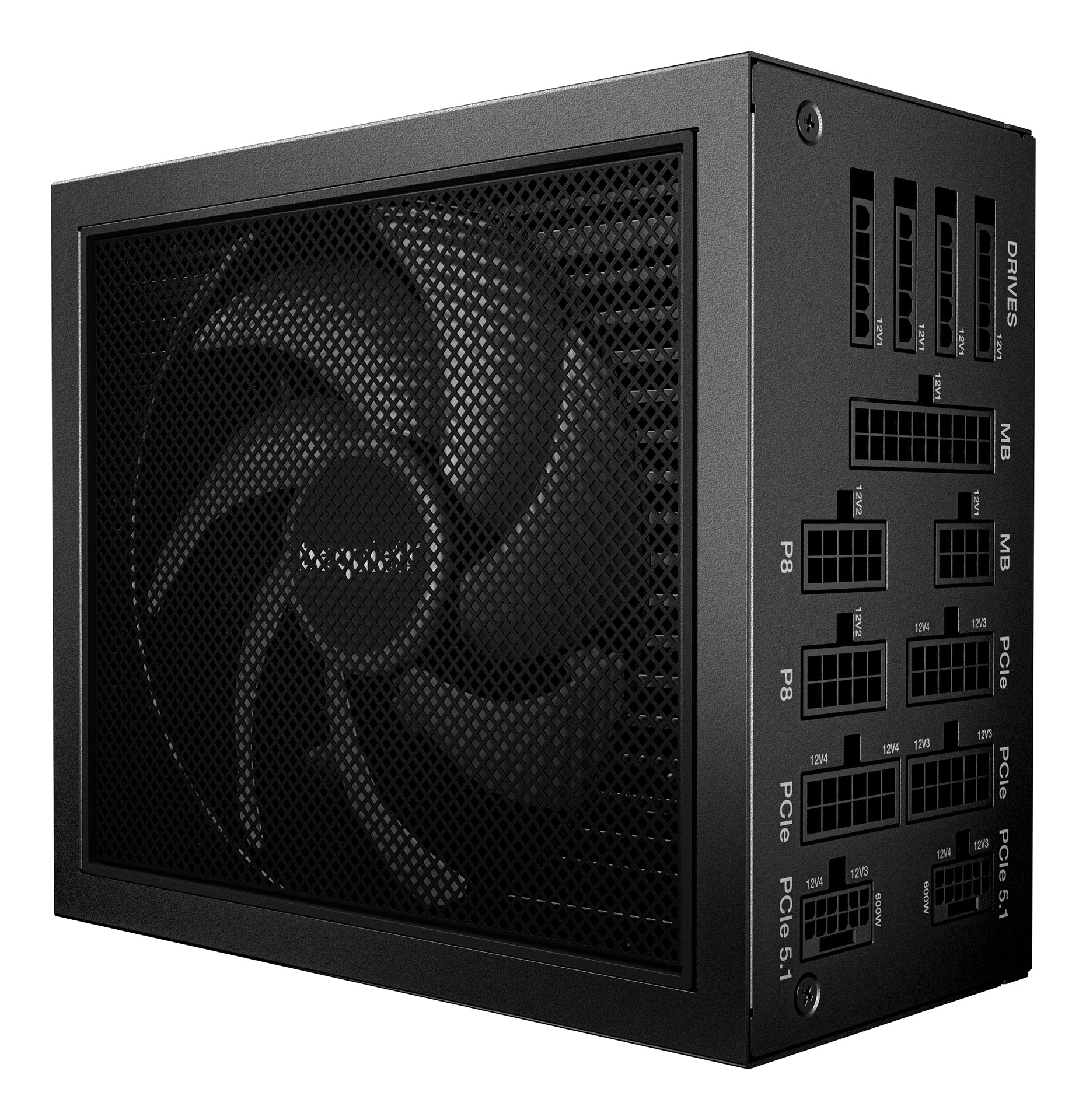

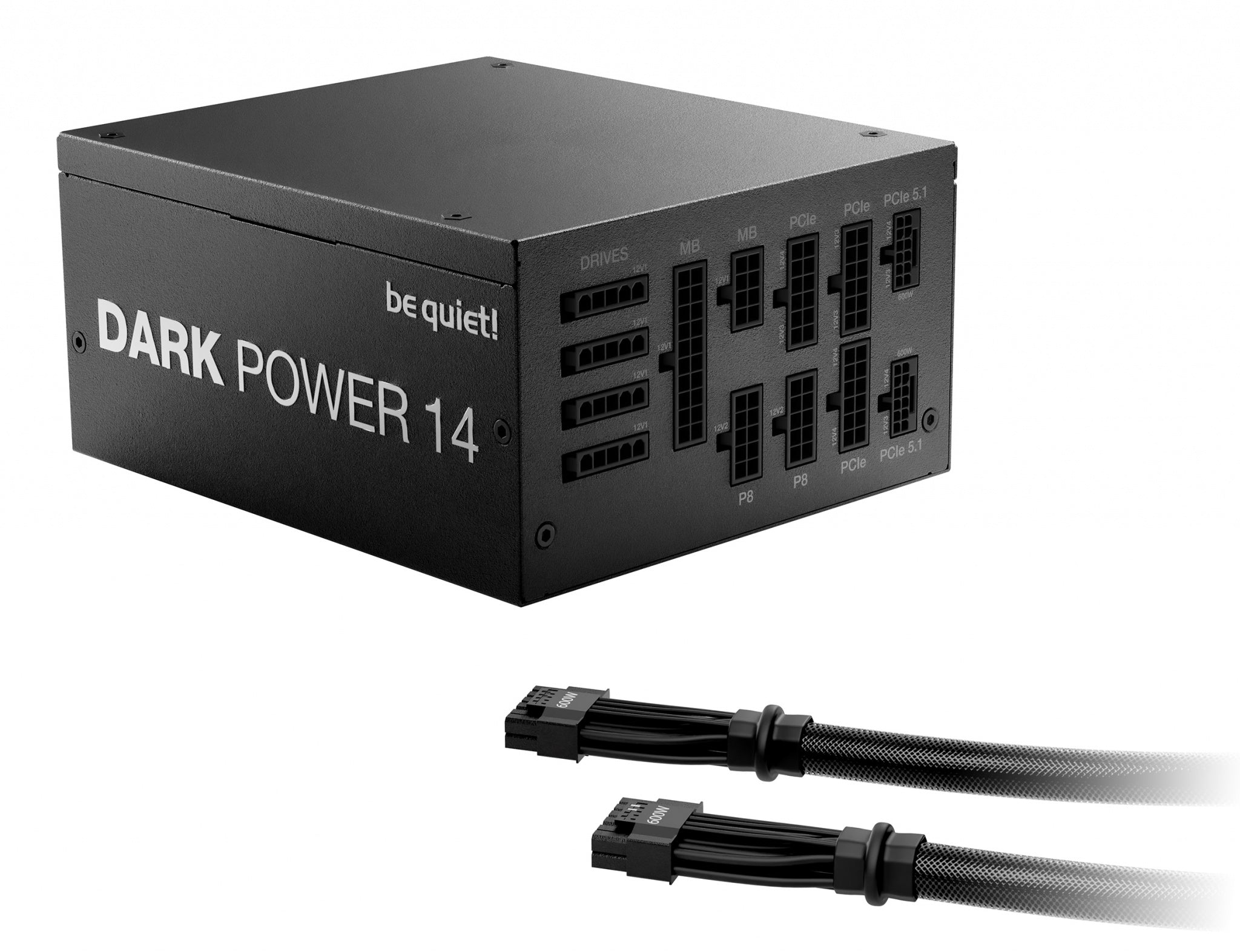

Dark Power 14 1200W is an ATX 3.1 PSU and comes with both native integration of the two 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and perfect for current and future high-end systems.
Switch Effortlessly Between Active and Semi-Passive Cooling

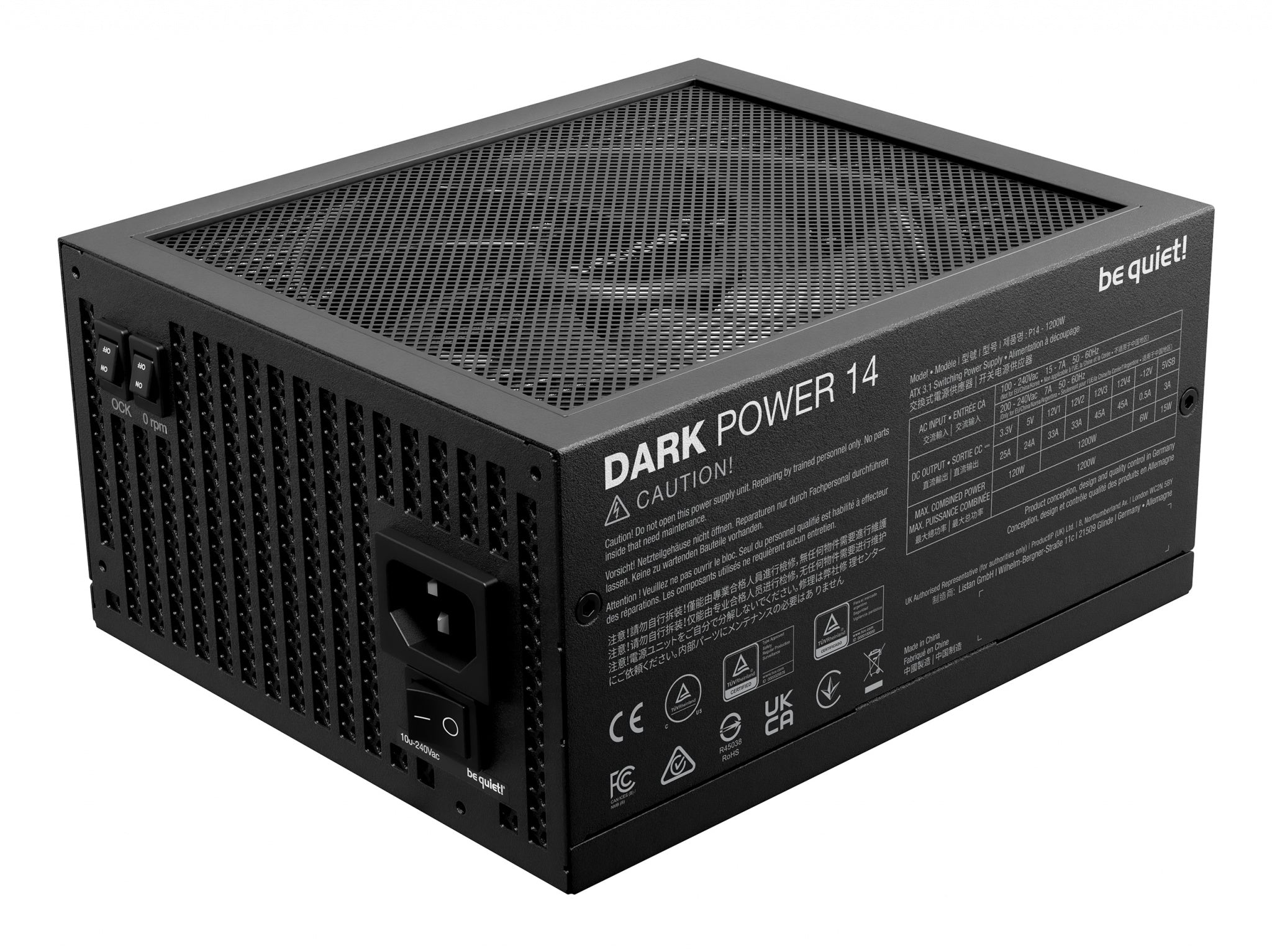

A button on the rear of the power supply allows switching between a balanced active cooling mode, where the Silent Wings fan spins all the time, or a semi-passive mode, where the fan does not spin under low load and only starts when additional cooling is required for more demanding operations. A post-ventilation setting keeps the fan spinning after cooling down for a short period of 2–5 minutes to prevent frequent and noisy starts and stops.
Heat Sink and Integrated Silent Wings

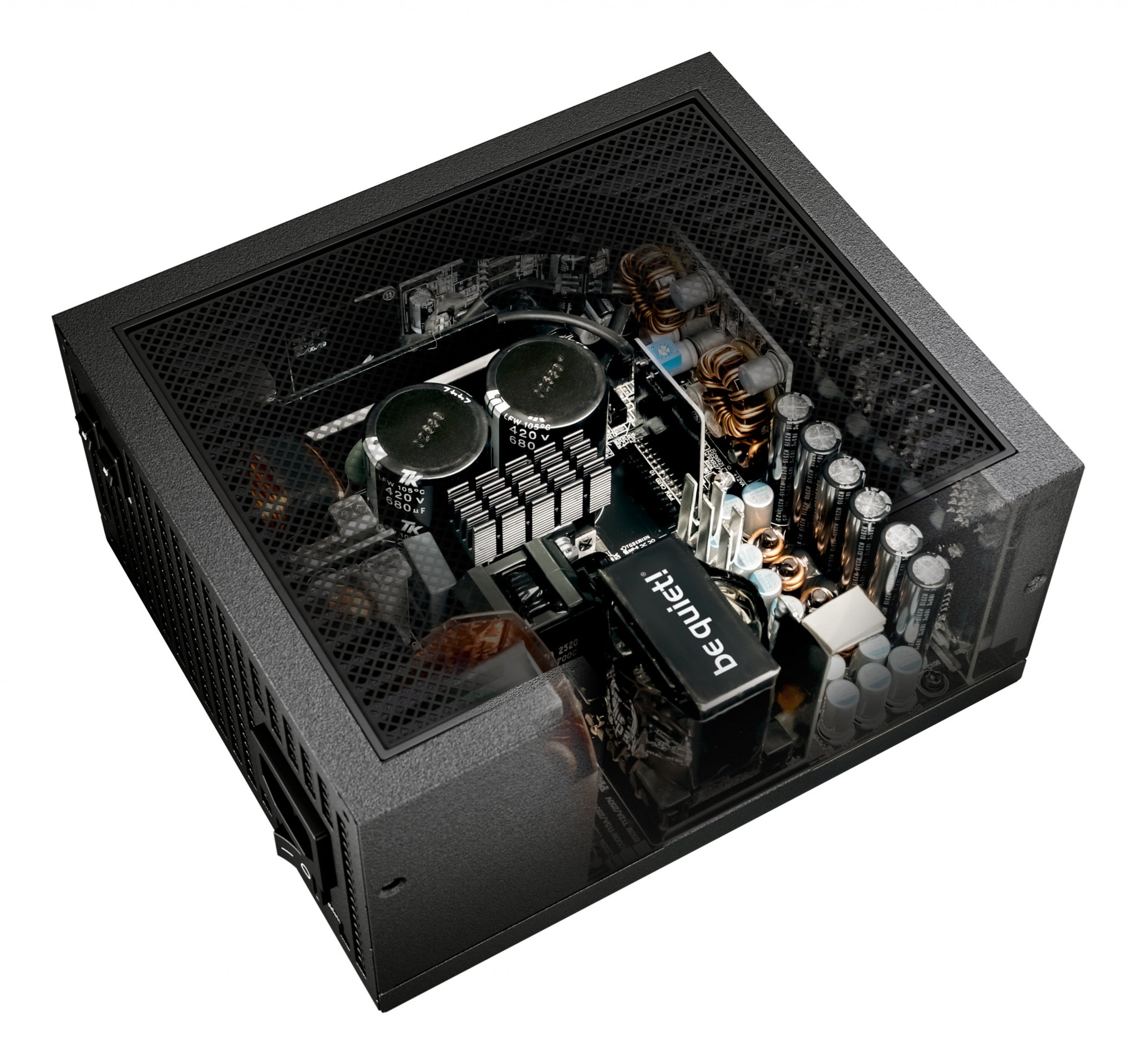

A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power 14 1200W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations and sits unshakably. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption.
Ready for Overclocking

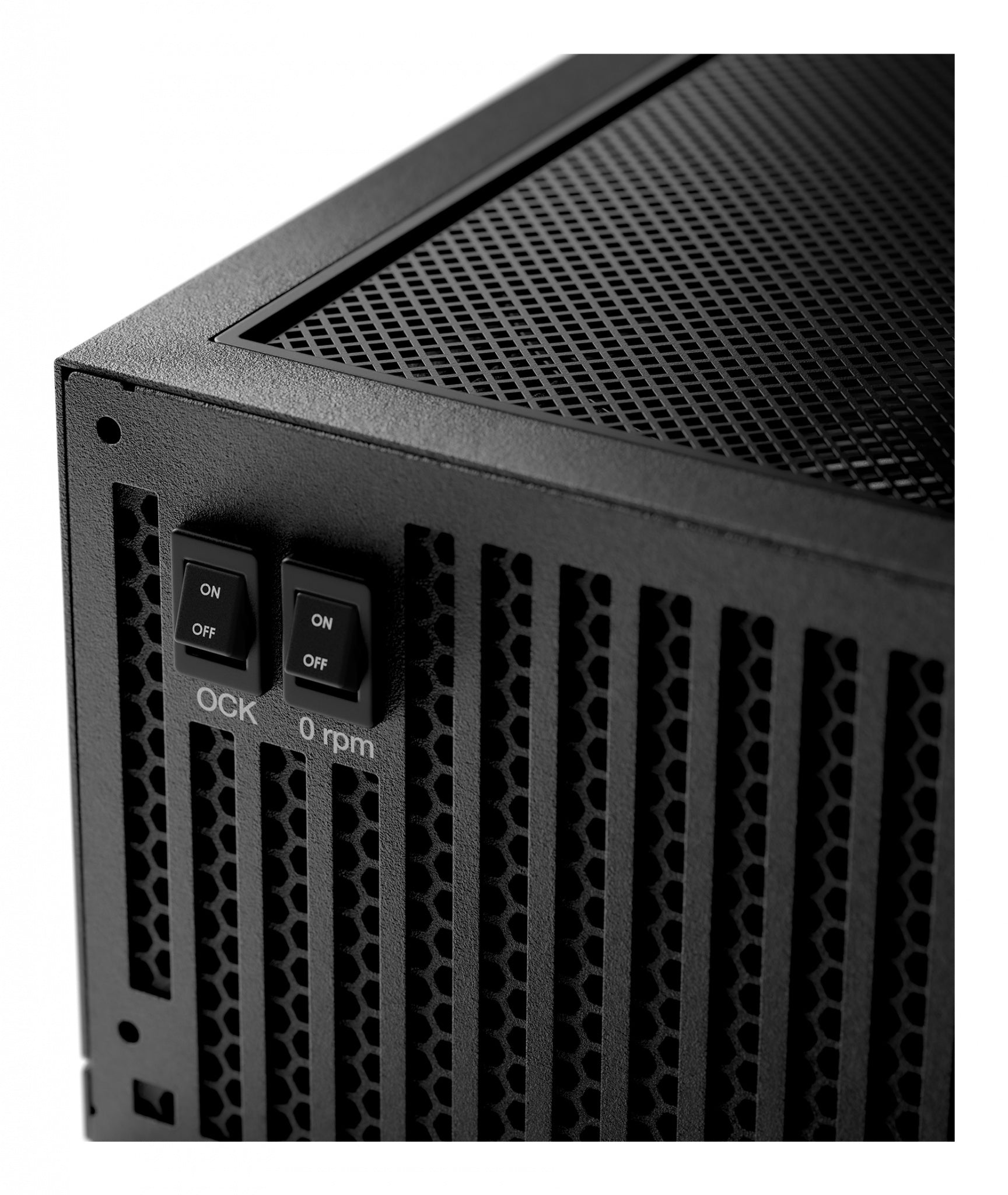

Dark Power 14 1200W is particularly suitable for overclocking. With the simple push of a button, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control between the default four 12V-rail mode and the alternative massive single-rail operation.
Higher Efficiency and Lower Ripple Noise
Dark Power 14 1200W is state-of-the-art technology. With an Active Rectifier and full bridge LLC Technology it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
105°C Capacitors from Japan
Each component in Dark Power 14 1200W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life.
Perfectly Modular

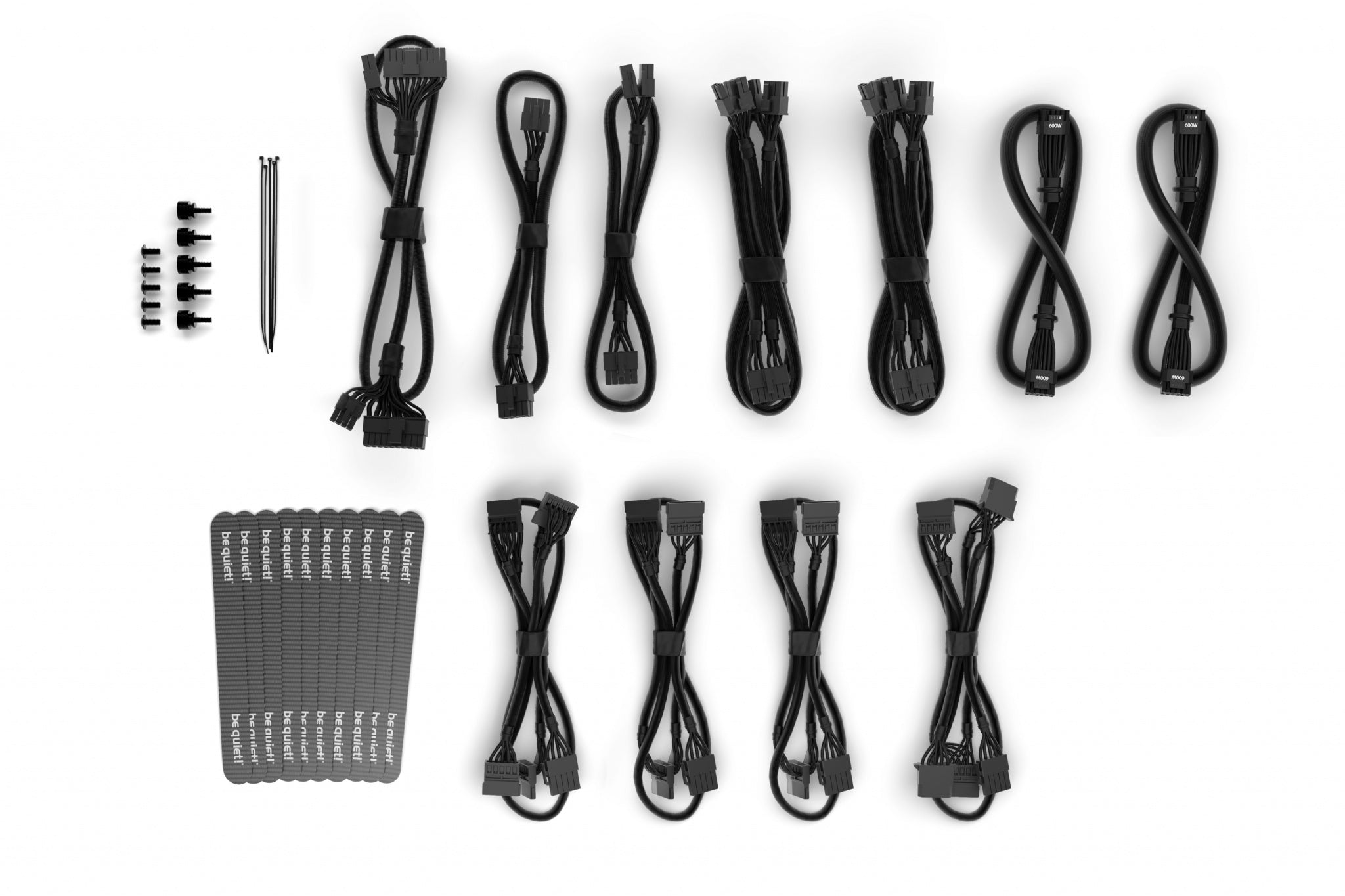

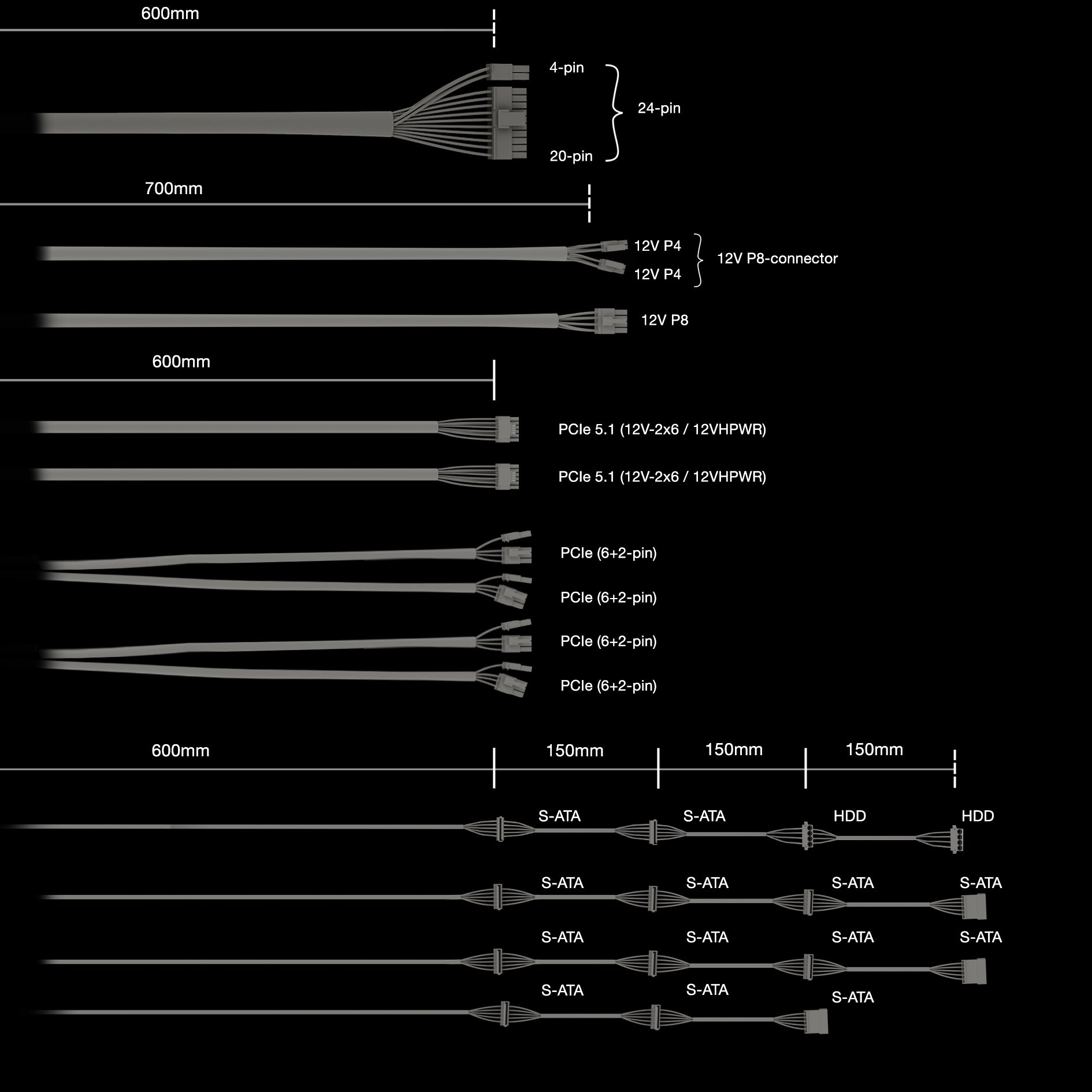

Modular, sleeved cables measuring up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
| Power | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Hold time | 19.5 ms |
| Efficiency | 93.1% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 24 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V1) | 33 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+3.3V) | 120 W |
| Number of +12V rail(s) | 4 |
| Power factor | 0.98 |
| Maximum input current (@220V) | 5 A |
| Maximum input current (@110V) | 10 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 1300 W |
| Total power | 1200 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (12-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 900,1050 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power cables | 13 |
| SATA power cable length | 600,750,900,1050 mm |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |

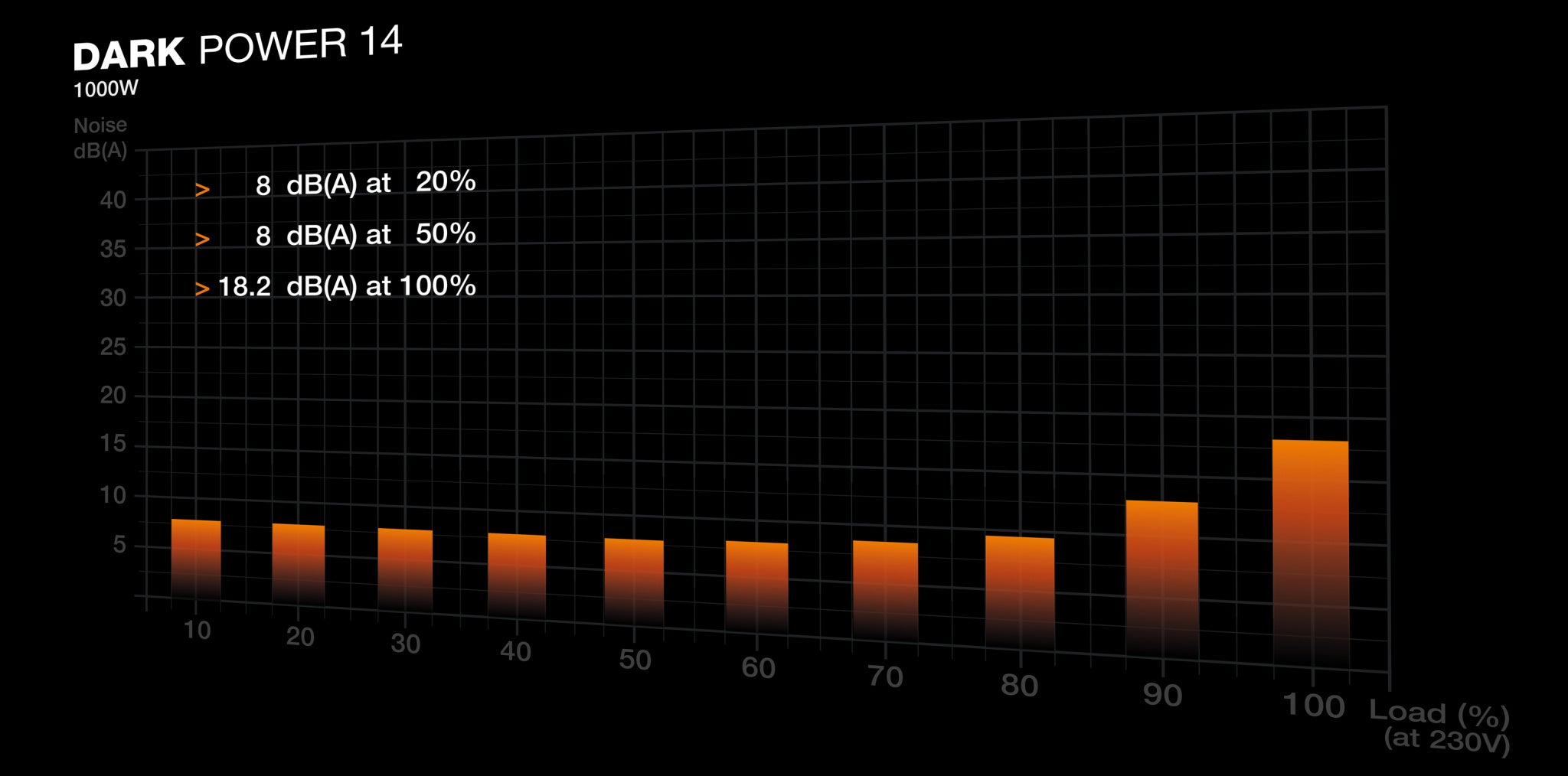

| Noise level | 21.1 dB |
| EPS version | 2.92 |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| On/off fan switch | Yes |
| Fan speed | 0 - 2100 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Height | 86 mm |
| Depth | 175 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 3.7 kg |
| Package height | 355 mm |
| Package depth | 126 mm |
| Package width | 230 mm |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 52.8 cm |
| Shipping (inner) case width | 36.8 cm |
| Shipping (inner) case height | 26 cm |
| Shipping (inner) case net weight | 20.1 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Other features | |
|---|---|
| Cable ties included | Yes |
| Screws included | Yes |
