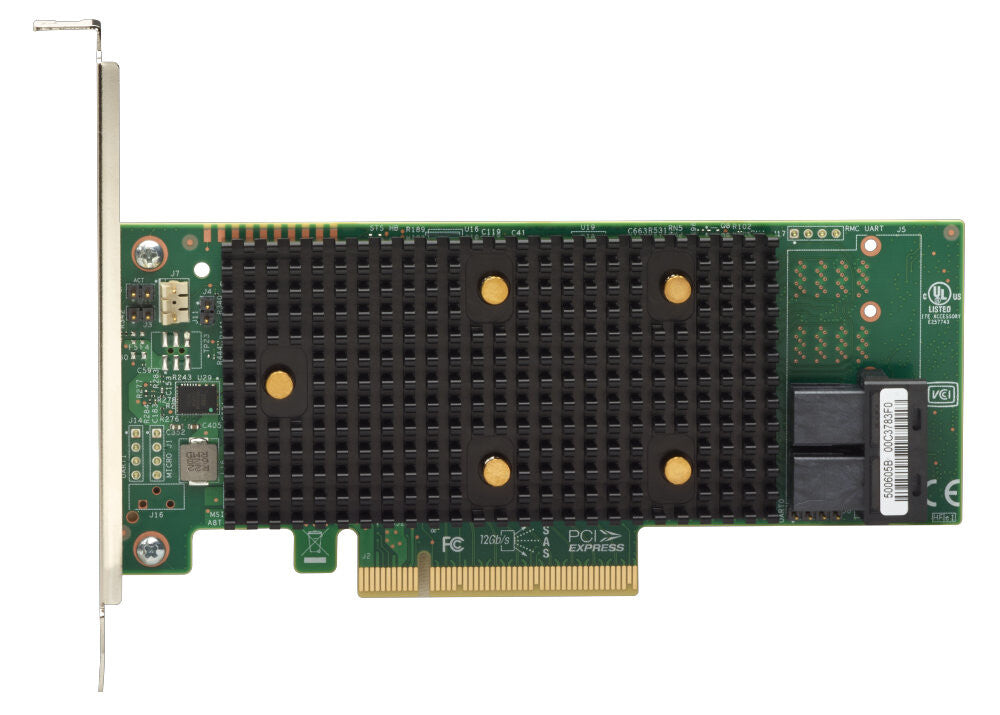

Lenovo 4Y37A09727 RAID controller PCI Express x8 3.0 12 Gbit/s
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £216.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Supported storage drive interfaces: PCI Express
- Host interface: PCI Express x8
- RAID levels: 0, 1, 10
- 12 Gbit/s
- SSD support
- Number of devices supported: 16
The ThinkSystem RAID 530 family are entry-level 12 Gb SAS/SATA internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0/1/10/5/50, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 530-4i and 530-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specifications
Ports & interfaces
| Internal SAS ports | 16 |
|---|---|
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | PCI Express |
Performance
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)WEEE |
|---|---|
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 16 |
| JBOD function | Yes |
| Chipset | LSI SAS3416 |
| SSD support | Yes |
| Form factor | Low Profile PCIe |
| Data transfer rate | 12 Gbit/s |
| RAID levels | 0, 1, 10 |
Show all 19 specificationsShow fewer specifications
System requirements
| Linux operating systems supported | Yes |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 55 °C |
