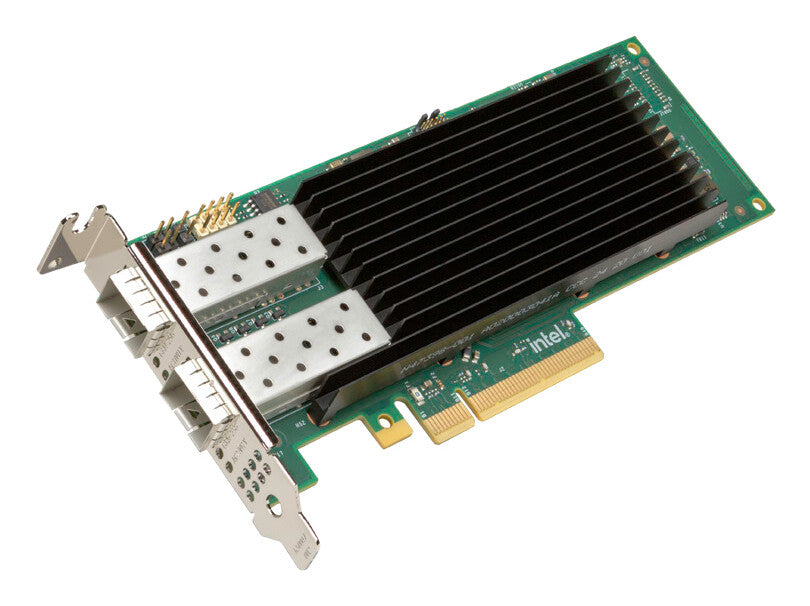

Intel E835-XXVDA2 Internal Fiber 25000 Mbit/s
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £76.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Wired
- PCI Express 4.0 Fiber
- Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server
Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP28 |
| Fiber ports quantity | 2 |
| PCI version | 4.0 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Maximum data transfer rate | 25000 Mbit/s |
|---|---|
| Networking standards | IEEE 1588 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000,25000 Mbit/s |
| iSCSI support | Yes |
Show all 39 specificationsShow fewer specifications
Design
| Internal | Yes |
|---|---|
| Component for | Server |
Operational conditions
| Operating temperature (T-T) | 0 - 65 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Compliance certificates | CE, ICES, KCC, RCM, UKCA, BSMI, Federal Communications Commission (FCC), RoHS |
|---|
Other features
| Market segment | Server |
|---|---|
| iWARP/RDMA | Yes |
| Speed & slot width | 16.0 GT/s, x8 Lane |
| On-chip QoS and Traffic Management | Yes |
| Ethernet adapter ARK ID | 245161 |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Embedded options available | No |
| Intel Trusted Execution Technology | No |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Intelligent Offloads | Yes |
| Intel Data Direct I/O Technology | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992.C |
| Network interface card cable medium | Copper, Fiber |
| Storage Over Ethernet | iSCSI, NSF |
| Product brief URL | https://cdrdv2.intel.com/v1/dl/getContent/834081 |
| Status | Launched |
| Launch date | Q1'26 |
