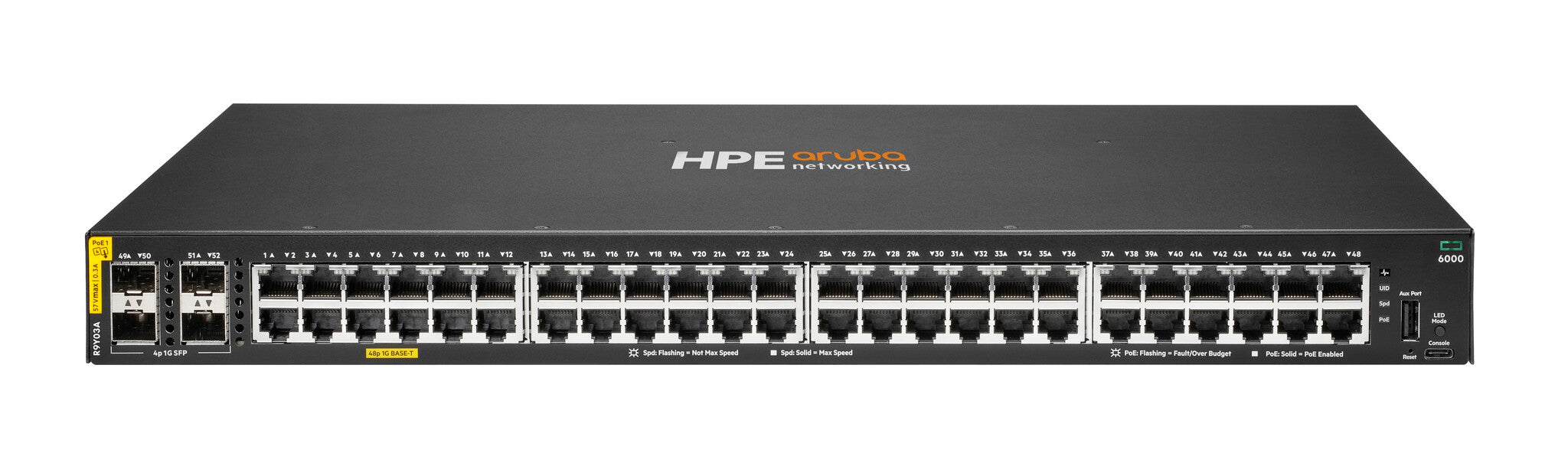

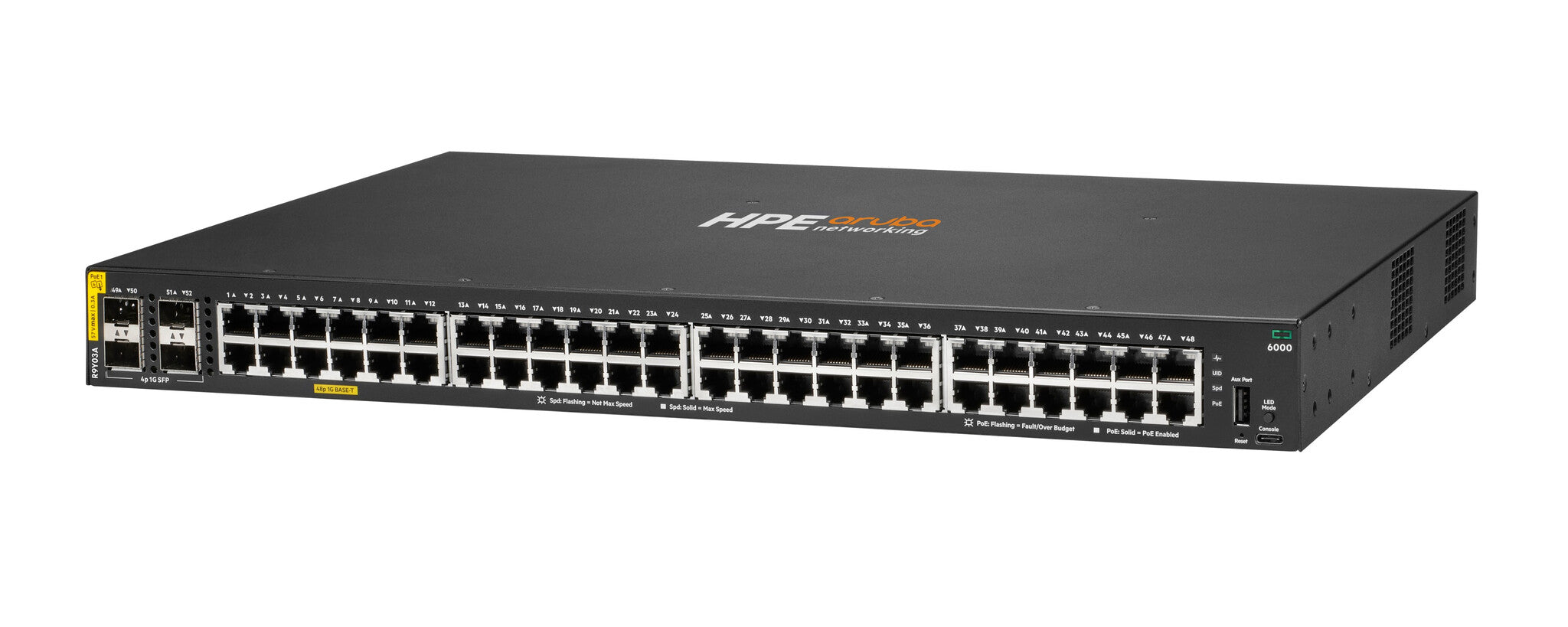

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 8192 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
What is new supporting point:
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
Compact and fanless 12-port PoE model for space-constrained deployments.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Ready for software defined networking with REST APIs.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| Static route | Yes |
| Latency (10 Gbps) | 1.8 µs |
| Latency (1 Gbps) | 1.9 µs |
| Throughput | 98.6 Mpps |
| Switching capacity | 176 Gbit/s |
| MAC address table | 8192 entries |
| Security | |
|---|---|
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Internal memory | 8000 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.7 kg |
| Height | 43.9 mm |
| Depth | 324.2 mm |
| Width | 442.5 mm |
