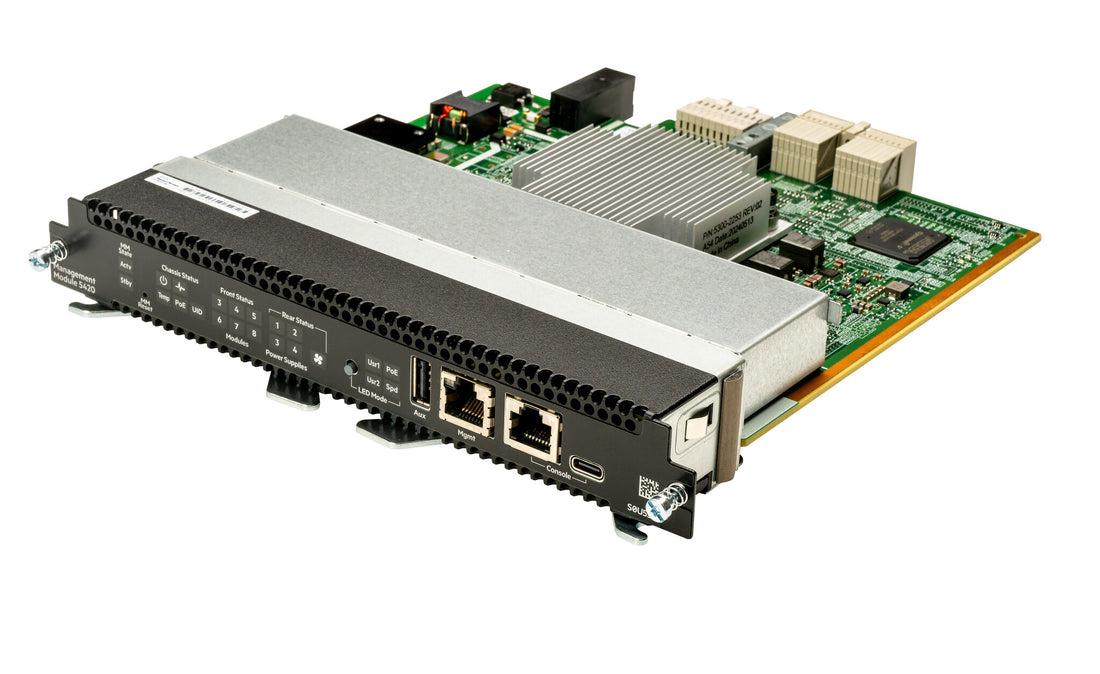

HPE Aruba Networking CX 5420 Management Module
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,360.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L3
- Quality of Service (QoS) support
- 10G support
- Switching capacity: 960 Gbit/s
- 4U Rack mounting
- AC/PoE Power over Ethernet (PoE)

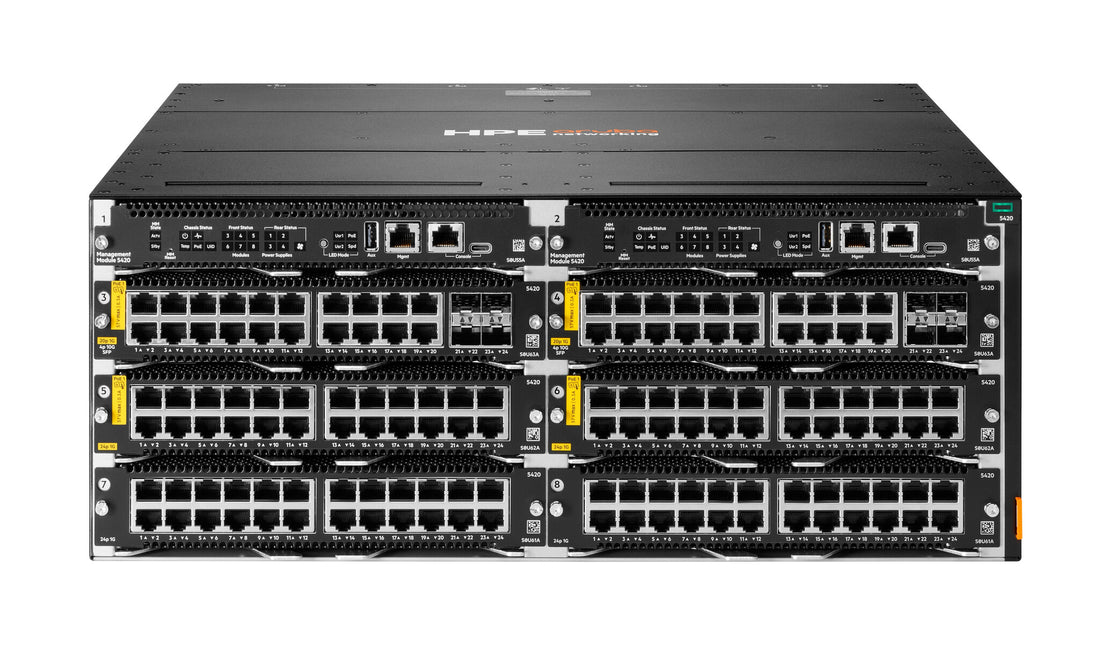

The HPE Aruba Networking CX 5420 Switch Series is an intelligent, flexible and modular Layer 3 switch chassis created for today's enterprise small and medium campus, branch enterprise networks with built-in MACsec hardware capability, analytics and automation. CX 5420 switch chassis is part of the CX switching portfolio that provides an enterprise-class access layer solution that is easy-to-deploy, simple, secure and resilient. By combining a modern, fully programmable OS with HPE Aruba Networking Network Analytics Engine (NAE), the CX 5420 Series provides industry leading monitoring and troubleshooting capabilities across the network. A powerful Gen7 ASIC architecture delivers performance and extensive feature support with flexible programmability for the tomorrow applications. This advanced modular 4U chassis switch offers up to 960Gbps with low latency, 6 half-width line card slots, VSX Live Upgrade, and HPE Smart Rate 10GbE up to 90W Class-8 PoE with BGP/OSFP/PIM support.
What is new supporting point:
Flexibility with 6 half-width modules that allow growth when needed and support for port diversity in a condensed 4RU chassis with redundant MM and PSU.
High performance switching with up to 960 Gbps using 714 Mpps, built-in high availability with HPE Aruba Networking Virtual Switching Extension (VSX) Live Upgrade and Always-On PoE.
Simplified operations with the common HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio delivering a more consistent, more efficient operator experience.
Powerful, modular, intelligent Layer 3 switch chassis with BGP, VSX, and OSPF with robust quality of service (QoS).
Easy to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, with easy-to-use web GUI or industry-standard CLI.
Automated, unified role-based policies for users, Internet of Things (IoT) and devices with HPE Aruba Networking Dynamic Segmentation and intelligent monitoring, visibility, and remediation with NAE.
Specifications
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
Network
| 10G support | Yes |
|---|---|
| Networking standards | IEEE 802.3bt |
Show all 28 specificationsShow fewer specifications
Data transmission
| Packet buffer memory | 64 MB |
|---|---|
| Forwarding rate | 160 Mpps |
| Throughput | 714 Mpps |
| Switching capacity | 960 Gbit/s |
Protocols
| Routing protocols | BGP, OSPF |
|---|
Design
| Product colour | Black |
|---|---|
| Form factor | 4U |
| Rack mounting | Yes |
Performance
| Flash memory | 32 MB |
|---|---|
| Internal memory | 16000 MB |
| Memory type | DDR4-SDRAM |
Power
| Power consumption (typical) | 1000 W |
|---|---|
| AC input voltage | 200 - 240 V |
| Number of power supply units | 4 |
| Power supply included | No |
| Power source | AC/PoE |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
Weight & dimensions
| Weight | 839.1 g |
|---|---|
| Height | 33 mm |
| Depth | 213 mm |
| Width | 229 mm |
General
| Product family | Aruba Networking |
|---|
