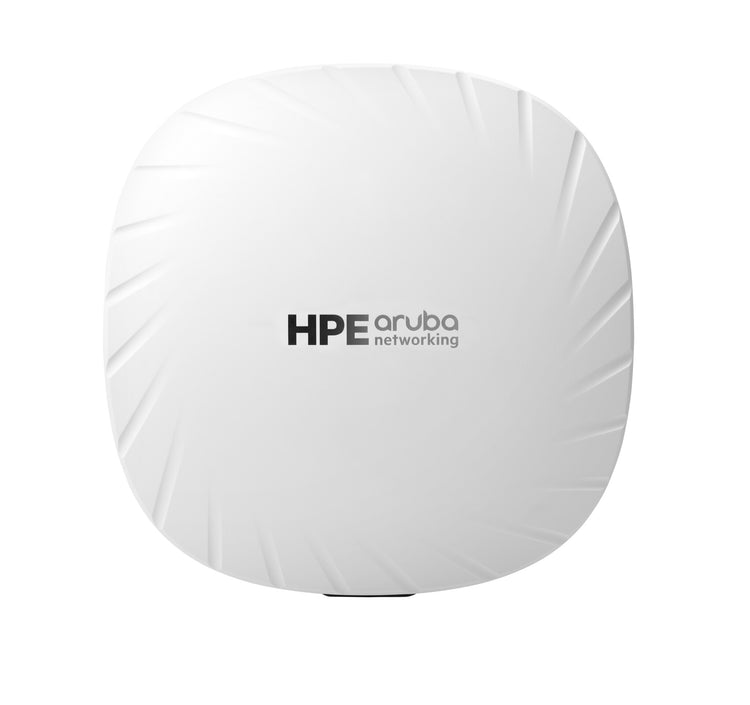

HPE Aruba Networking AP-515 (RW) TAA Dual Radio 4x4/2x2 802.11ax Internal Ants Unified Campus AP
Couldn't load pickup availability
- 2.4 GHz 575 Mbit/s
- 5 GHz 4800 Mbit/s
- Maximum data transfer rate: 5375 Mbit/s
- IEEE 802.11ax
- WMM, WPA, WPA2
- Power over Ethernet (PoE)
- Antennas quantity: 4 Internal Integrated antenna
The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‑Fi CERTIFIED for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
What is new supporting point:
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
| Features | |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Spread spectrum method | DSSS, OFDM |
| MIMO | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11ax |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate | 5375 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | WMM, WPA, WPA2 |

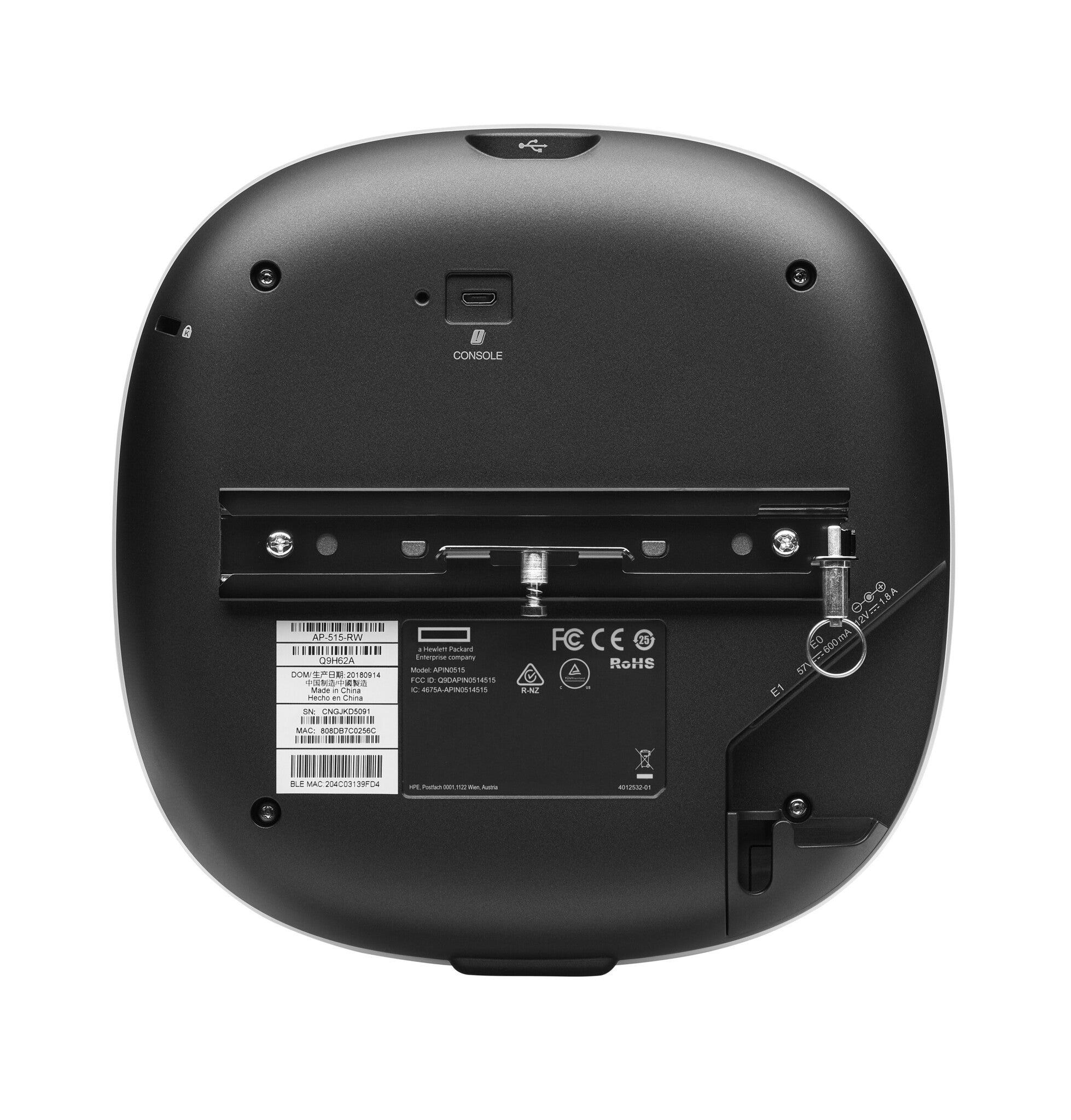

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling |
| Antenna | |
|---|---|
| Antenna gain level (max) | 7.5 dBi |
| Antennas quantity | 4 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| General | |
|---|---|
| Product family | Aruba Networking |
| Certificates | |
|---|---|
| Certification | None |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
|---|---|
| Weight | 810 g |
| Height | 46 mm |
| Depth | 200 mm |
| Width | 200 mm |
| Packaging data | |
|---|---|
| Package weight | 1.01 kg |
| Package height | 72 mm |
| Package depth | 220 mm |
| Package width | 230 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 93% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 93% |
