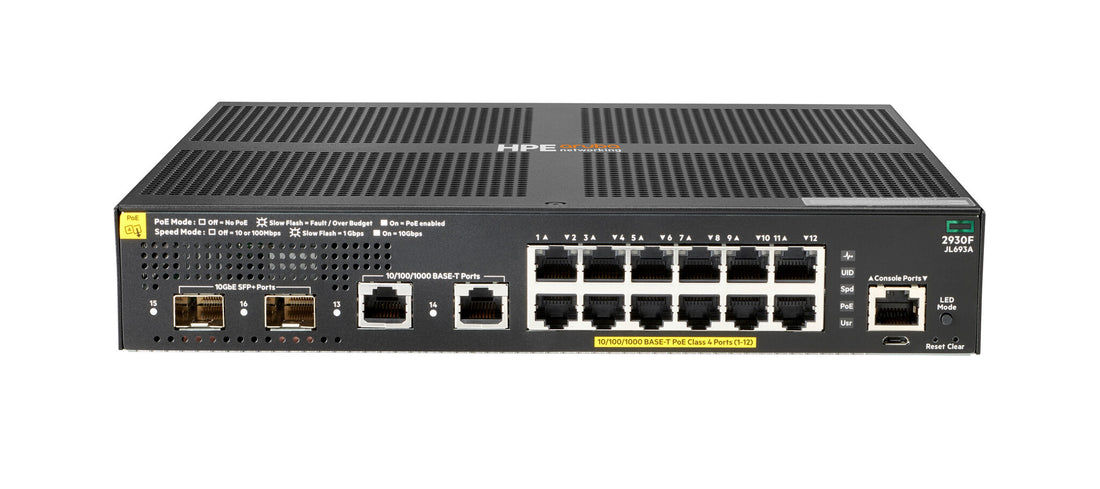

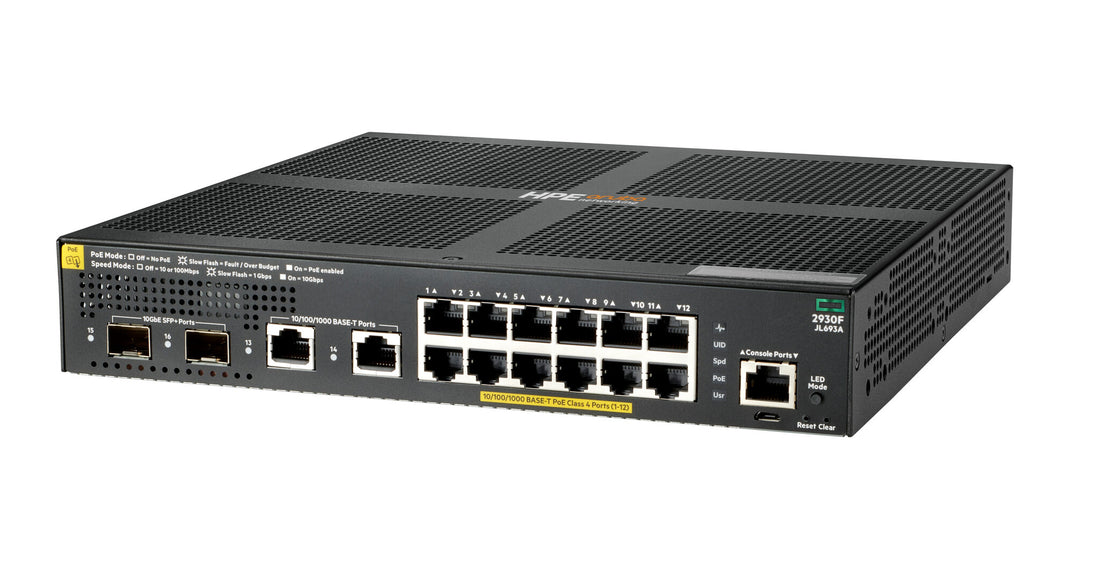

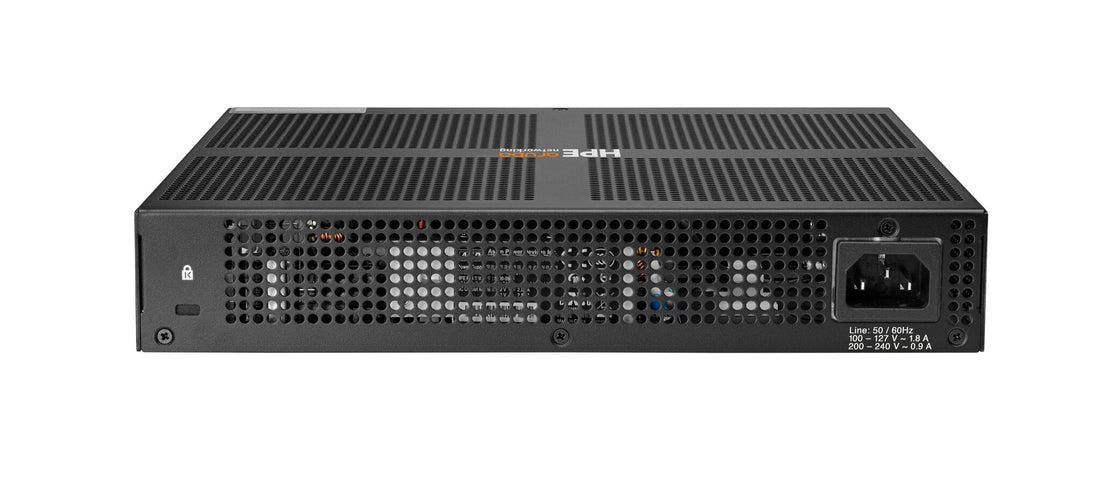

HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £279.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 32768 entries Switching capacity: 68 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
Scale with 8-member stacking.
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
Specifications
Management features
| Web-based management | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| SFP+ module slots quantity | 2 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
Show all 60 specificationsShow fewer specifications
Network
| VLAN support | Yes |
|---|---|
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| IP routing | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Data transmission
| Packet buffer memory | 12.38 MB |
|---|---|
| Latency (10 Gbps) | 2.9 µs |
| Latency (1 Gbps) | 3.8 µs |
| Throughput | 41.7 Mpps |
| Switching capacity | 68 Gbit/s |
| MAC address table | 32768 entries |
Security
| SSH/SSL support | Yes |
|---|---|
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| IPv6 FIB entries | 5000 |
|---|---|
| IPv4 FIB entries | 10000 |
| Routing protocols | IP |
Design
| Product colour | Black |
|---|---|
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
Performance
| Internal memory | 1024 MB |
|---|---|
| Memory type | DDR3-SDRAM |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
Power
| Power consumption (max) | 170 W |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget | 139 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Heat dissipation | 68.2 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Weight | 2.2 kg |
|---|---|
| Height | 43.9 mm |
| Depth | 254 mm |
| Width | 43.9 mm |
General
| Product family | Aruba Networking |
|---|
