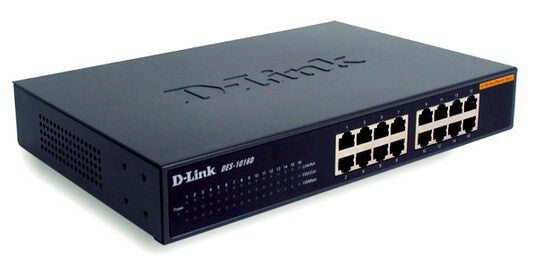

D-Link DES-1016D Unmanaged
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £11.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
£4.95 delivery
Express £9.99
Spend £15.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 8000 entries
16-Port 10/100Mbps Switch for SOHO/Workgroup
10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.
Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex.
Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.
Specifications
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|
Show all 29 specificationsShow fewer specifications
Network
| Full duplex | Yes |
|---|
Data transmission
| Maximum data transfer rate | 0.1 Gbit/s |
|---|---|
| MAC address table | 8000 entries |
Design
| LED indicators | Power |
|---|
Performance
| Internal memory | 2 MB |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Other features
| Connectivity technology | Wired |
|---|---|
| Dimensions (WxDxH) | 324 x 231 x 44.5 mm |
| Data transfer rate | 100 Mbit/s |
Operational conditions
| Operating relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Technical details
| Shipping (inner) case height | 31.1 cm |
|---|---|
| Shipping (inner) case width | 39.2 cm |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case net weight | 9.11 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 256.4 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 137.9 cm |
| Pallet gross weight (sea) | 376.1 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 2.03 m |
| Shipping (inner) case gross weight | 9.97 kg |
