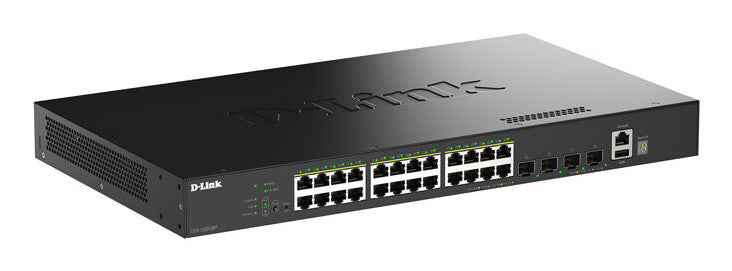

D-Link 28-Port Gigabit Stackable PoE+ Smart Managed Switch with 4 x 10G SFP+ Ports
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £188.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10G support
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.
Product Highlights
Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment
Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability
Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity
Specifications
Management features
| Traffic classification | Yes |
|---|---|
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| Console port | RJ-45 |
| USB Type-A ports quantity | 1 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Show all 68 specificationsShow fewer specifications
Network
| Number of VLANs | 4096 |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
Data transmission
| Packet buffer memory | 1.5 MB |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 95.24 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
Security
| Loop protection | Yes |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Authentication type | RADIUS, TACACS+ |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) ingress | 2000 |
| Access Control List (ACL) egress | 1000 |
| Access Control List (ACL) | Yes |
Multicast features
| Multicast support | Yes |
|---|
Design
| Number of fans | 3 fan(s) |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
Performance
| Mean time between failures (MTBF) | 330520 h |
|---|---|
| Noise level | 54.7 dB |
Power
| Power consumption (max) | 456 W |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget | 370 W |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Heat dissipation | 1554.96 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
Weight & dimensions
| Weight | 3.8 kg |
|---|---|
| Height | 44 mm |
| Depth | 250 mm |
| Width | 440 mm |
