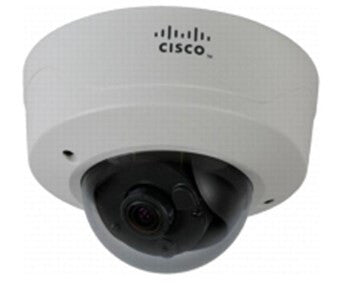

Cisco Surveillance 6020 IP Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £351.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Indoor & outdoor IP security camera
- CMOS 25.4 / 2.7 mm (1 / 2.7") 1920 x 1080 pixels
- Wired Ethernet LAN
- Night vision
- Dome Ceiling/wall
- Black, White
- 765 g
The Cisco® Video Surveillance 6020 IP Camera is a high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
The Cisco Video Surveillance 6020 IP Camera offers a variety of benefits, including:
- True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel) video at 30 fps while maintaining low network bandwidth.
- Motorized focus and zoom: The lens on the 6020 IP Camera’s dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
- Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
- Day/night operation: The camera provides true day/night functionality and includes an infrared filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
- Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.
- Local storage: Video data can automatically be recorded to a microSD card when the camera loses networkconnectivity.
- Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
- Open API. Support for ONVIF 2.0 allows for standards based interoperability and communications with other ONVIF appliances.
- Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
- Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
Specifications
Performance
| Alarm input/output | Yes |
|---|---|
| Day/night mode | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
Design
| Housing material | Aluminium |
|---|---|
| LED indicators | Activity, Power |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
Show all 51 specificationsShow fewer specifications
Camera
| Camera shutter speed | 0.000031 s |
|---|---|
| White balance | Auto, Manual |
| Pan range | 0 - 350° |
| Tilt angle range | 0 - 80° |
| Angle of rotation | 350° |
| Minimum illumination | 0.5 lx |
Image sensor
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
|---|---|
| Sensor type | CMOS |
Lens system
| Zoom capability | Yes |
|---|
Night vision
| Night vision | Yes |
|---|
Video
| Analog signal format system | NTSC, PAL |
|---|---|
| Frame rate | 30 fps |
| Supported video modes | 1080p |
| Supported graphics resolutions | 160 x 90, 320 x 192, 640 x 368, 768 x 432, 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Video formats supported | H.264, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
Audio
| Audio system full duplex | Yes |
|---|---|
| Audio system | 1-way |
Network
| Cabling technology | 10/100Base-T(X) |
|---|---|
| Supported network protocols | Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real - Time Transport Protocol (RTP), Real - Time Stre aming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), TCP/IP, Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH) Protocol |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Card reader integrated | Yes |
Ports & interfaces
| Interface | RJ-45 |
|---|---|
| DC-in jack | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| IP address filtering | Yes |
|---|
Management features
| Remotely operated | Yes |
|---|
Power
| Power consumption (typical) | 6.3 W |
|---|---|
| AC input voltage | 24 V |
| Power source type | PoE |
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
|---|
Weight & dimensions
| Weight | 765 g |
|---|---|
| Height | 109 mm |
| Depth | 160 mm |
| Width | 160 mm |
Packaging content
| Number of cameras | 1 |
|---|
