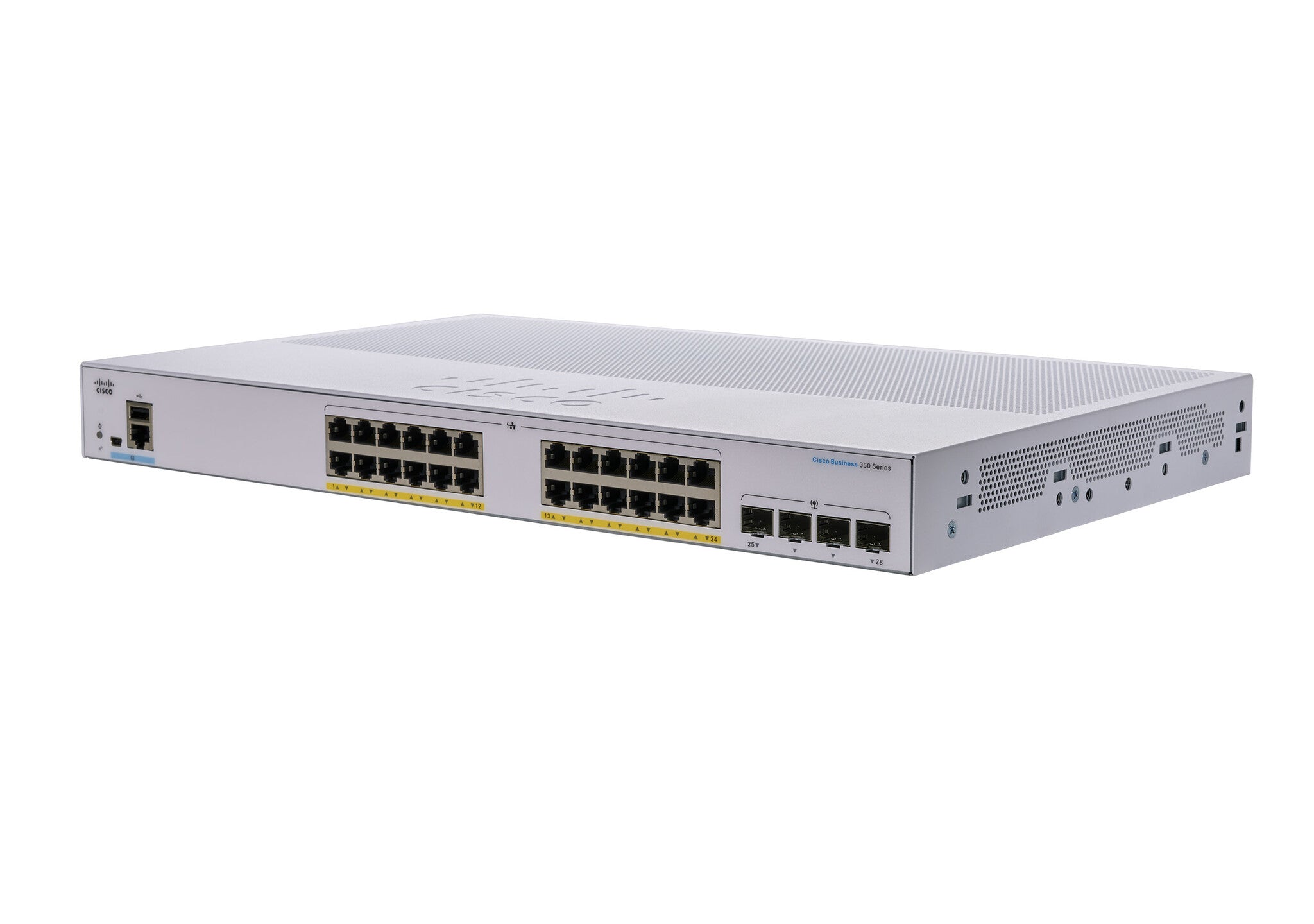

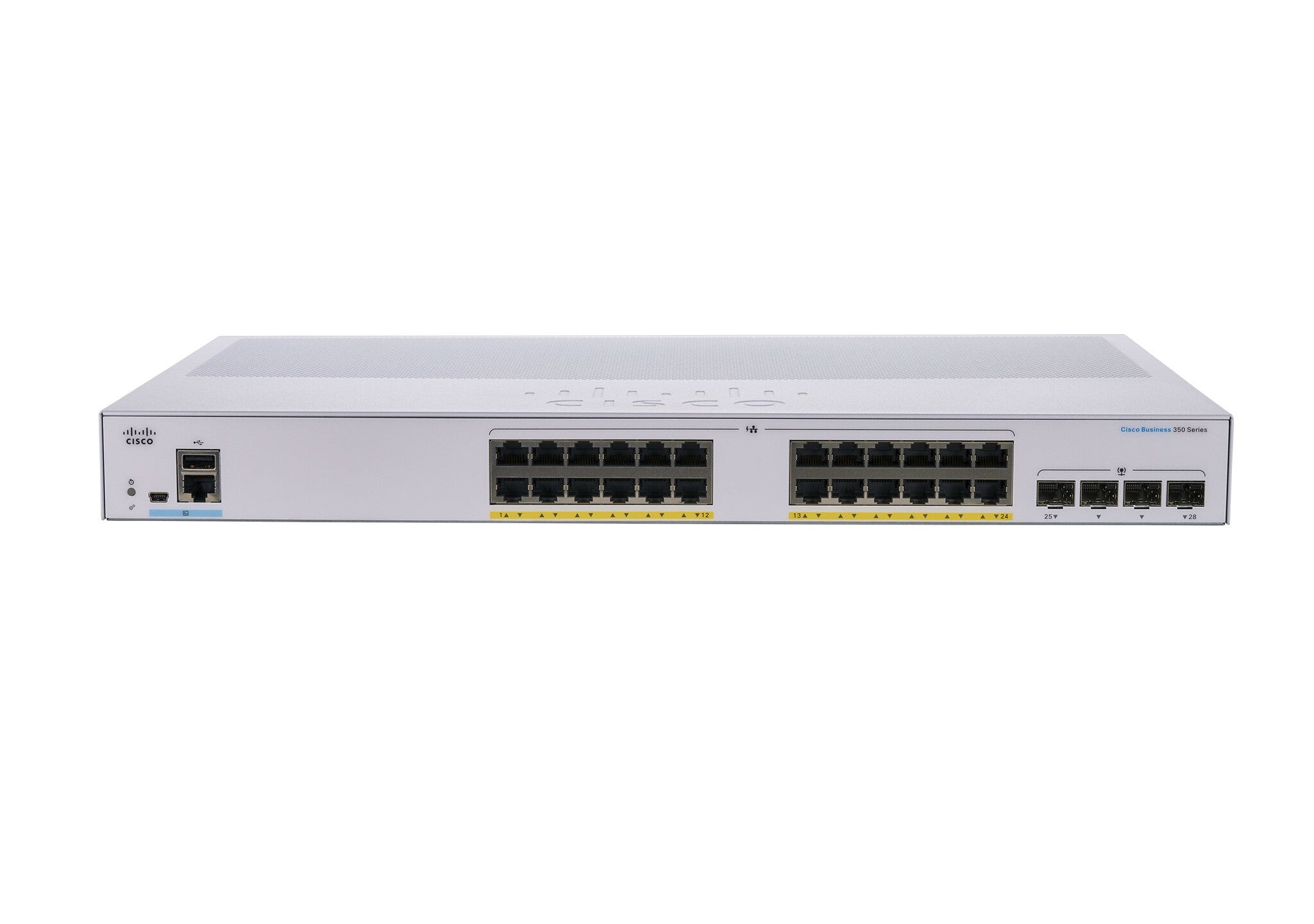

Cisco Business CBS350-24P-4X Managed Switch | 24 Port GE | PoE | 4x10G SFP+ | Limited Lifetime Protection (CBS350-24P-4X)
£937.99
Couldn't load pickup availability
- SWITCH PORTS: 24-Port 10/100/1000 + 4 x 10GE SFP+

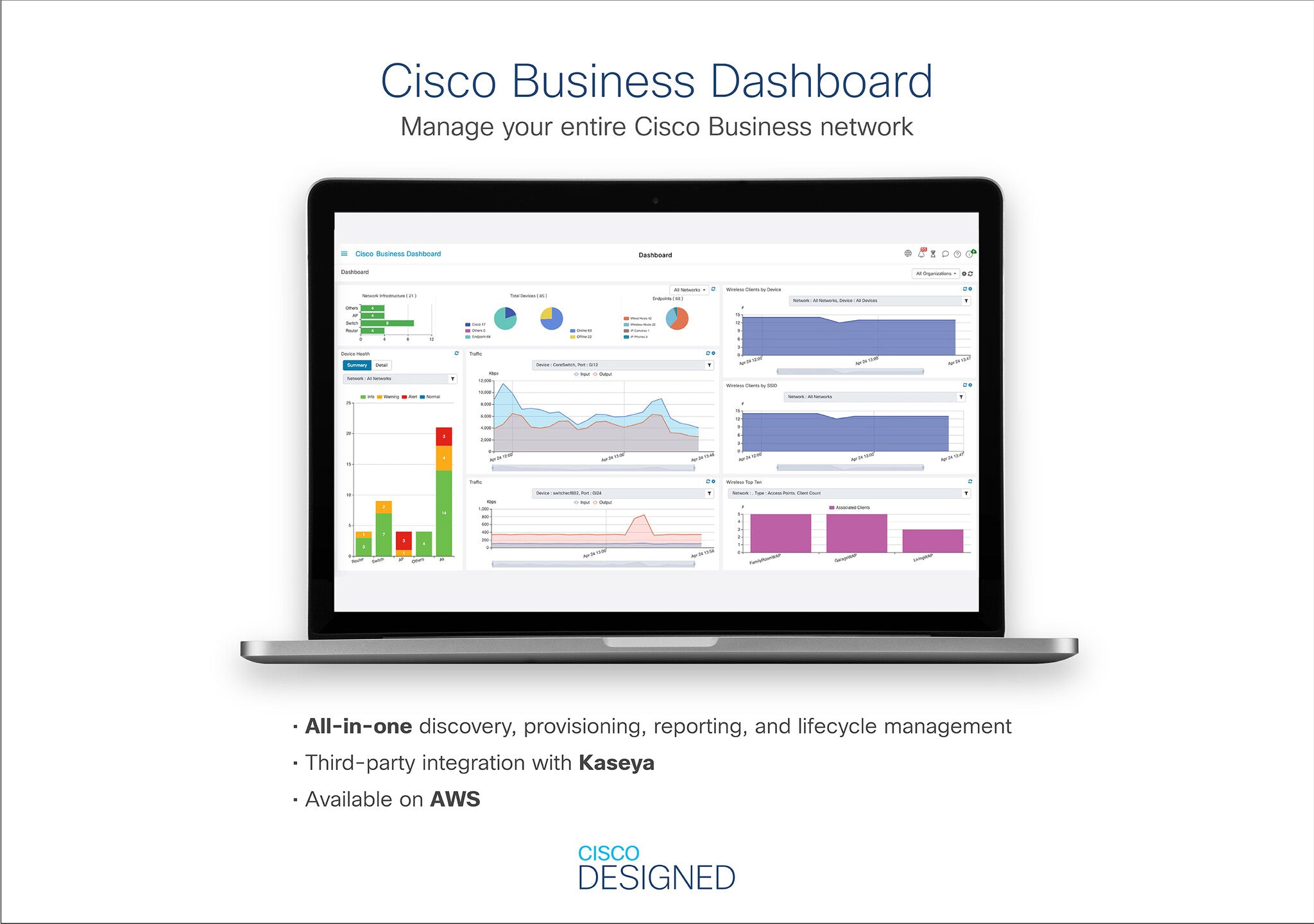

- SIMPLE: Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management

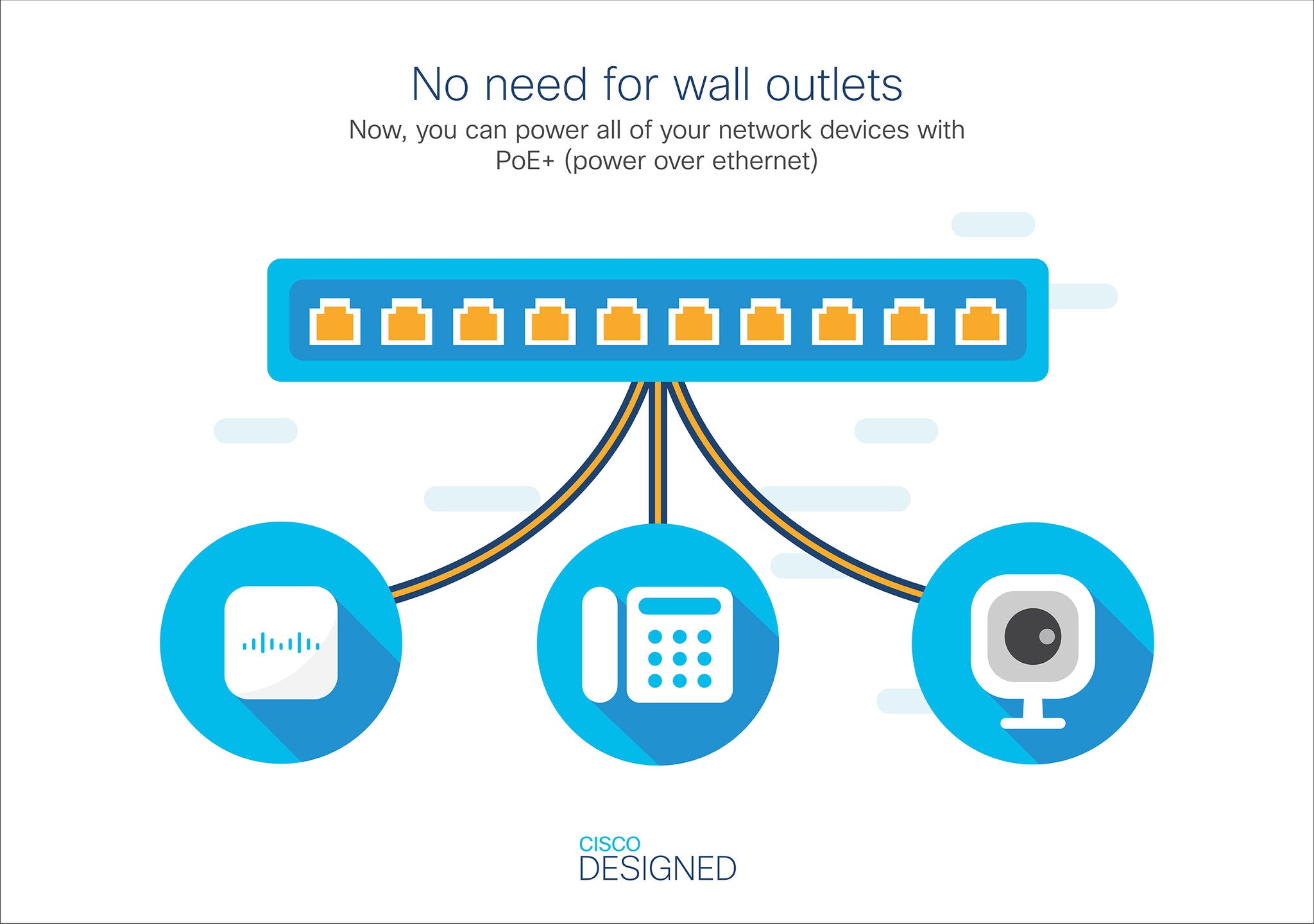

- POWER-OVER-ETHERNET: 24 PoE ports with 195W total power budget, PoE, PoE+
- ENHANCED SECURITY: IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
- ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
- PEACE OF MIND: Limited-lifetime warranty with Next-Business-Day advance replacement (where available) and one-year technical support
The Cisco Business CBS350-24P-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
| Management features | |
|---|---|
| MIB support | Y |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP+ module slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| Authentication | Guest VLAN, Web-based authentication |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) rules | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server, DHCPv6 client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| IP Source Guard (IPSG) | Yes |
| IPv4 & IPv6 features | IPv6 First Hop Security (FHS) |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP |
| Design | |
|---|---|
| Stacking | Yes |
| Market segment | Business |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Silver |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor frequency | 800 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power supply location | Internal |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Packaging content | CBS350-24P-4X-UK Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.47 kg |
| Height | 43.9 mm |
| Depth | 444.5 mm |
| Width | 299.2 mm |
| Packaging data | |
|---|---|
| Package weight | 5.62 kg |
| Package height | 106 mm |
| Package depth | 575 mm |
| Package width | 430 mm |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
