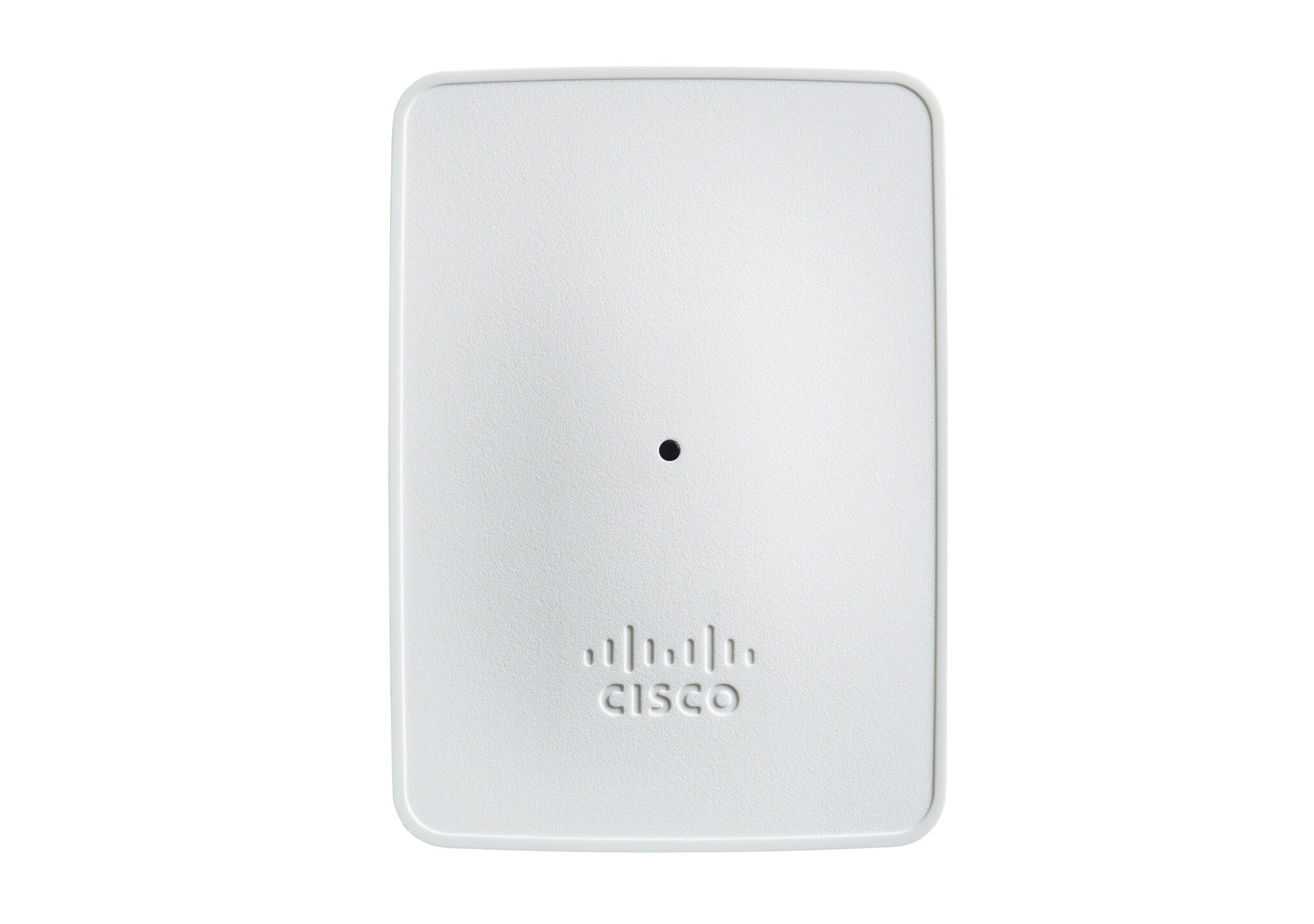

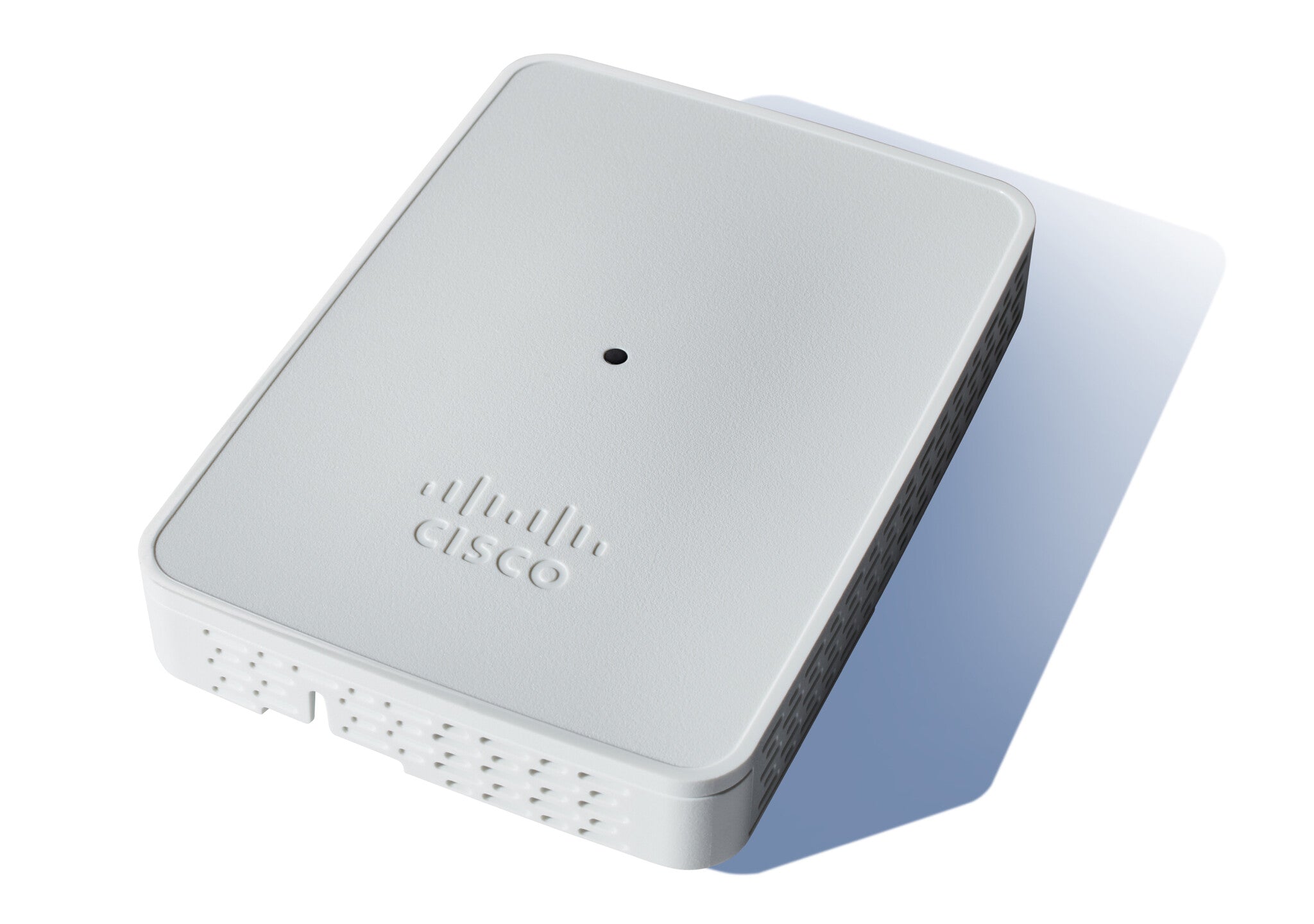

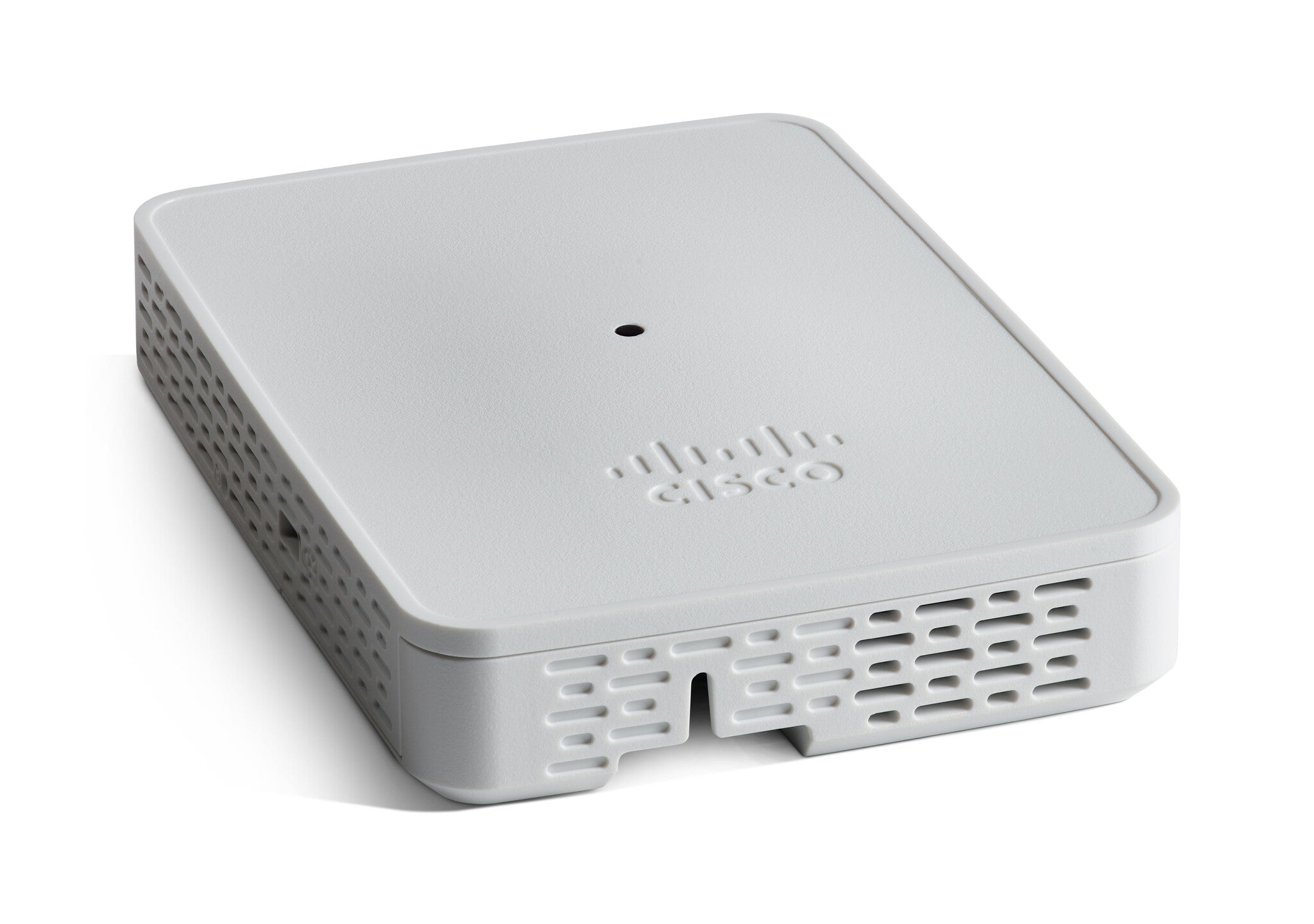

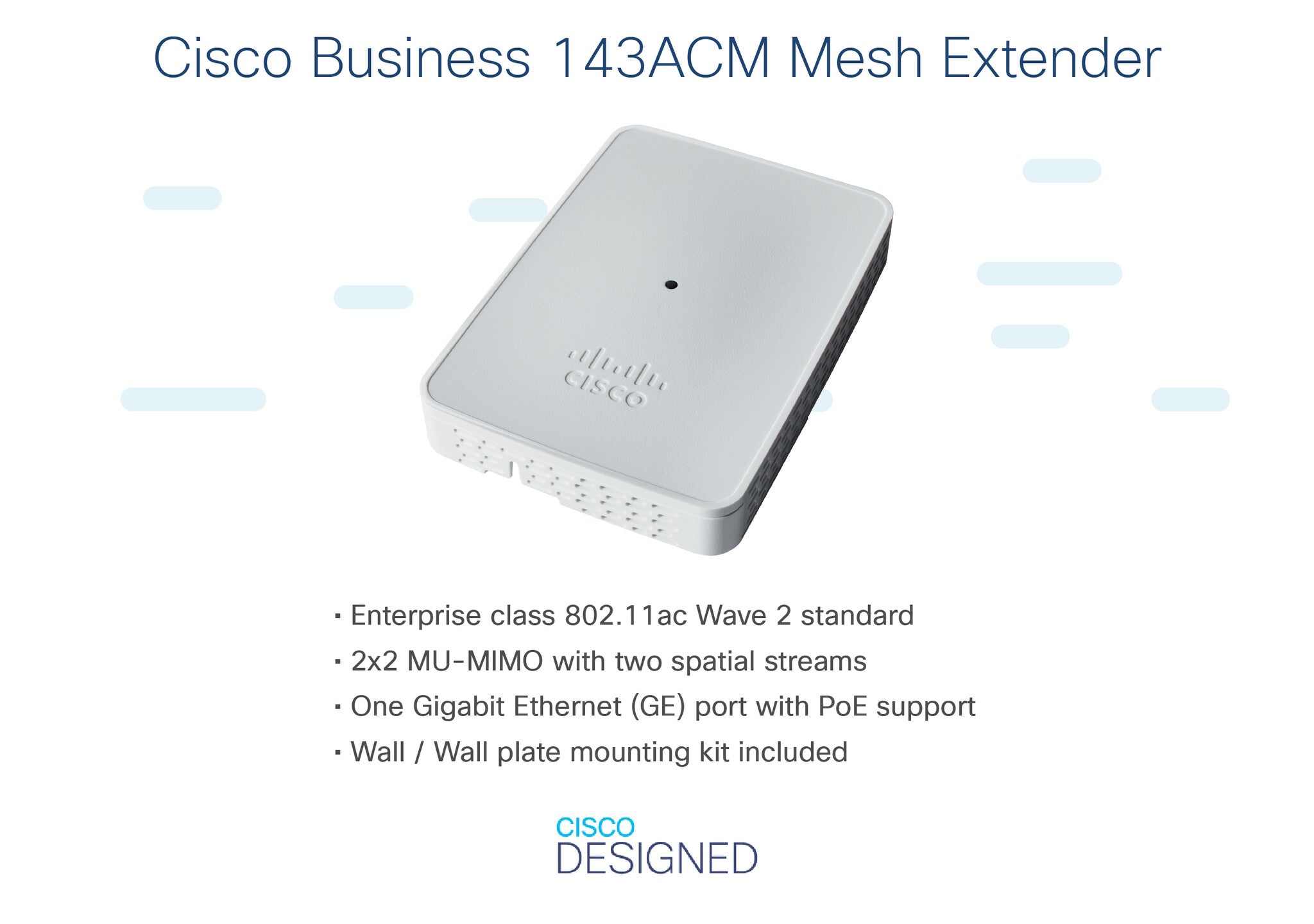

Cisco Business 143ACM 802.11ac 2x2 Wave 2 Mesh Extender 1 GbE Port - Wall Mount, Limited Lifetime Protection (CBW143ACM-E-UK) - Requires Business Wireless Access Points
£115.99
Couldn't load pickup availability
- IMPORTANT: The Cisco Business mesh extenders only work with Cisco Business Wireless 100 series and 200 series access points (CBW140AC-B, CBW240AC-B, and CBW145AC-B)
- FLEXIBILITY: Mix and match Cisco Business Wireless access points and these MU-MIMO (2x2) mesh extenders to increase your Wi-Fi coverage
- SET UP IN MINUTES: Scan a QR code with Cisco Business Mobile app and power on the device. No additional steps required
- DEPLOYMENT: Simple wall mount powered by AC power adapter (Included)
- PEACE OF MIND: One-year technical support and limited lifetime warranty
The Cisco Business 143ACM Mesh Extender seamlessly works with Cisco Business Wireless access points to provide expanded Wi-Fi coverage and capacity without sacrificing performance.
This 2x2 ultra-compact mesh extender can be easily mounted on a wall.
| Features | |
|---|---|
| Transmitting power | 20 dBmW |
| Dynamic Frequency Selection (DFS) | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Channels quantity | 29 channels |
| Number of users | 400 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz |
| Maximum data transfer rate | 867 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | WPA, WPA2, WPA3, WPA2-Enterprise |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power plug type | Type C |
| Power supply type | AC Power Adapter, included |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Power over Ethernet (PoE) | No |
| Design | |
|---|---|
| Market segment | Business |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 3 dBi |
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Performance | |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Processor frequency | 710 MHz |
| Built-in processor | Yes |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
|---|---|
| Certification | UL 60950-1CAN/CSA-C22.2 No. 60950-1UL 2043IEC 60950-1EN 60950-1 CC Part 15.247, 15.407RSS-247 (Canada)EN 300.328, EN 301.893 (Europe)ARIB-STD 66 (Japan) ARIB-STD T71 (Japan)FCC Part 15.107 and 15.109ICES-003 (Canada)VCCI (Japan)EN 301.489-1 and -17 (Europe)EN 50385 FCC OET-65CRSS-102 |
| Weight & dimensions | |
|---|---|
| Weight | 202 g |
| Height | 31.5 mm |
| Depth | 89 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package weight | 501 g |
| Package height | 82.5 mm |
| Package depth | 174.6 mm |
| Package width | 168.3 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Antenna | 2X2:2SS – 80 MHz |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4500 m |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
