ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
iFrame
£116.99
Couldn't load pickup availability
- Superior video quality - 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports

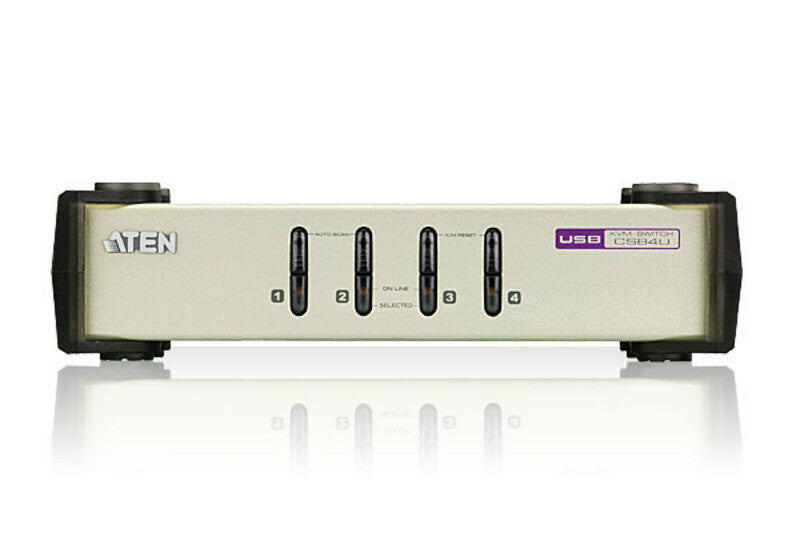

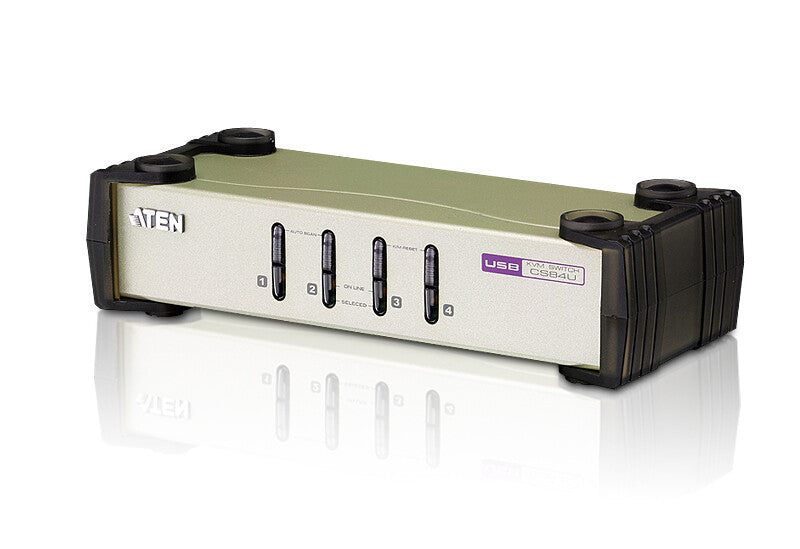

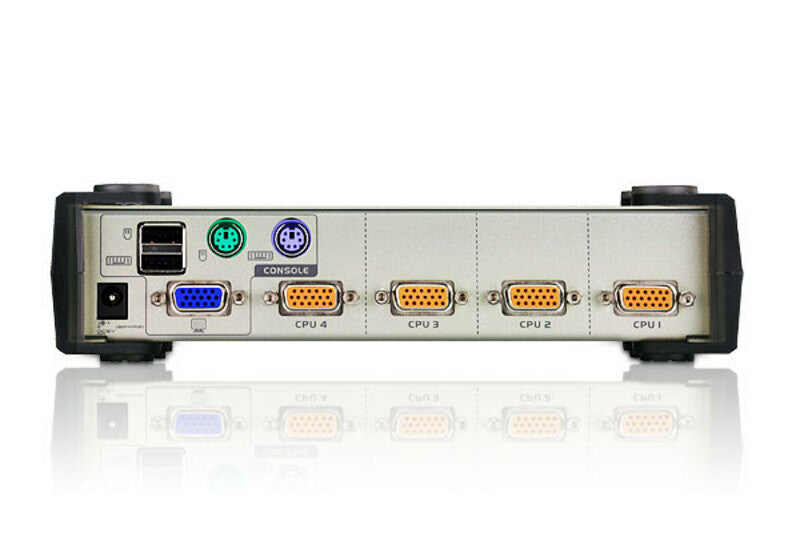

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS84U PS/2-USB KVM Switch
2x 2L-5301UP PS/2-USB KVM Cables
2x 2L-5302UP PS/2-USB KVM Cables
1x User Instructions
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB connector type | USB Type-A |
| USB 2.0 Type-A hub ports quantity | 2 |
| Console ports | USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 4 |
| Video port type | VGA |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 4 |
| Performance | |
|---|---|
| DDC2B support | Yes |
| Scan interval | 3,5,10,20 s |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| HD type | QXGA |
| Design | |
|---|---|
| Hot keys | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black, Grey |
| Rack mounting | No |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (typical) | 0.45 W |
| Input voltage | 5 V |
| Power source | DC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.51 kg |
| Height | 55.5 mm |
| Depth | 88 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 1.69 kg |
| Package height | 173 mm |
| Package depth | 283 mm |
| Package width | 100 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 8.98 kg |
| Master (outer) case height | 194 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case width | 292 mm |
| Master (outer) case net weight | 7.57 kg |
| Harmonized System (HS) code | 85176200 |
