APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine
Couldn't load pickup availability
- Double-conversion (Online)
- 5 kVA 4500 W
- Waveform: Pure sine
- 12 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Mini Tower Black

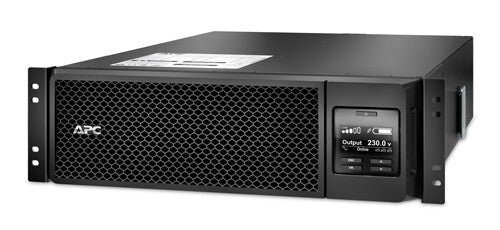

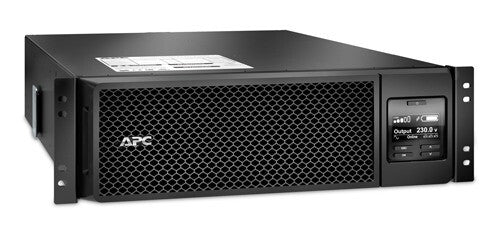

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
| Features | |
|---|---|
| Temperature voltage compensation | Yes |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Surge energy rating | 480 J |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 45/65 Hz |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 160 V |
| Waveform | Pure sine |
| Output power | 4500 W |
| Output power capacity | 5 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| Cabling technology | 10/100Base-T |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RJ-45 |
| Serial interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | Terminal |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Hot-swap battery | Yes |
| Battery recharge time | 1 h |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Display type | LCD |
| Product colour | Black |
| Form factor | Mini Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Certification | CE, DNV, EAC, RCM, VDE, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 54.4 kg |
| Height | 130 mm |
| Depth | 719 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Package weight | 66.9 kg |
| Package height | 330 mm |
| Package depth | 960 mm |
| Package width | 610 mm |
| Warranty card | Yes |
| Resource CD | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 46266.7 |
