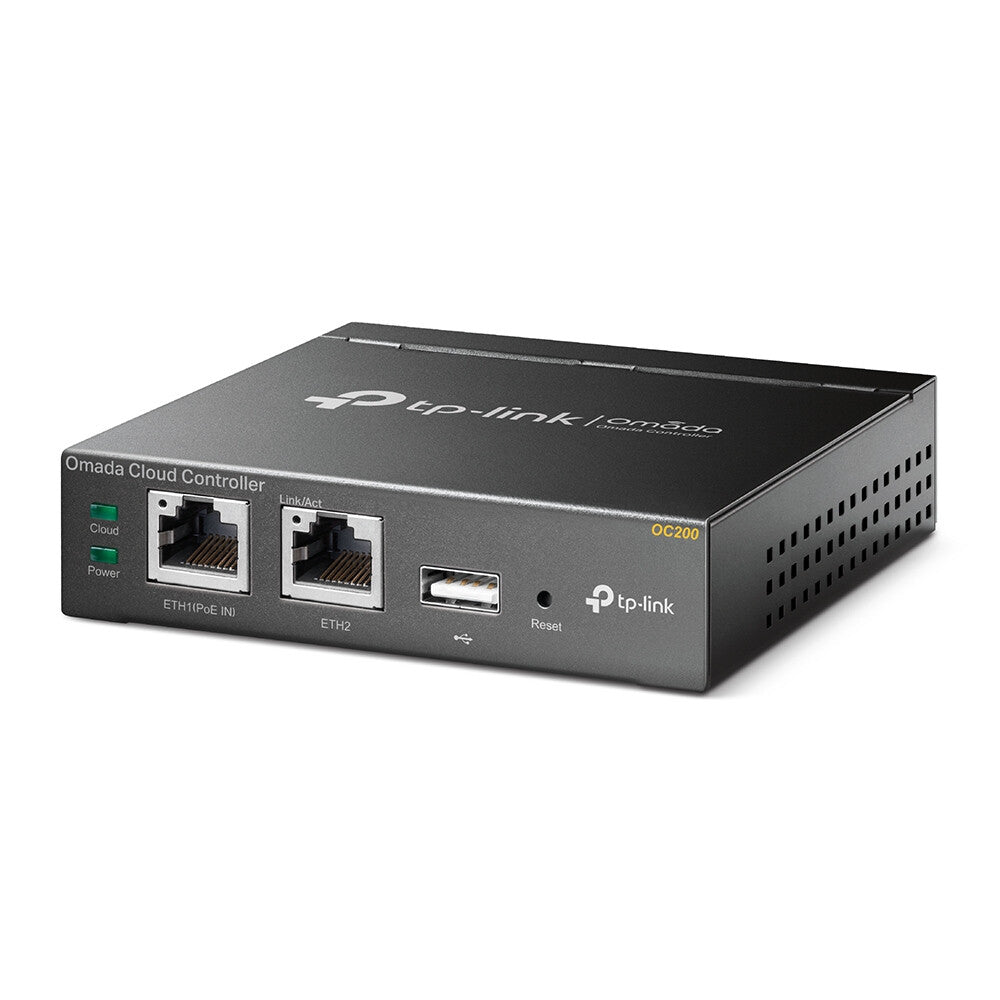

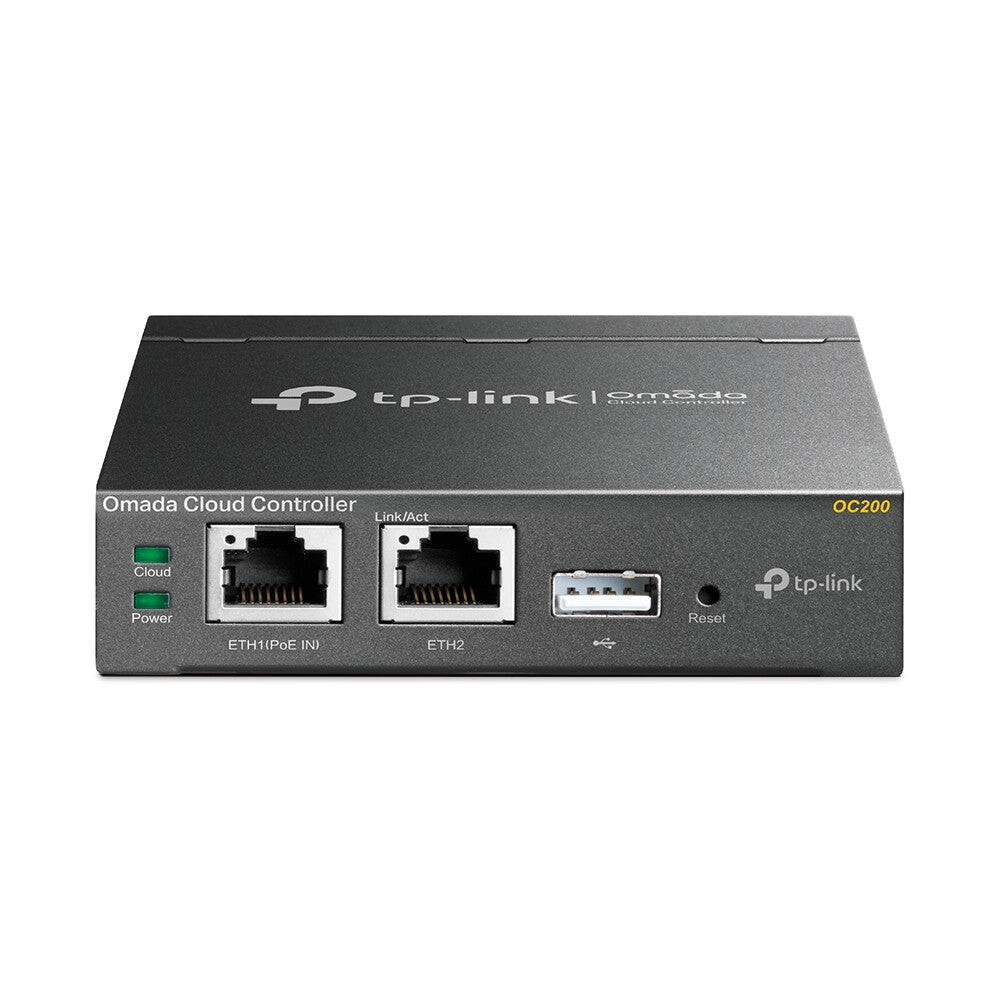

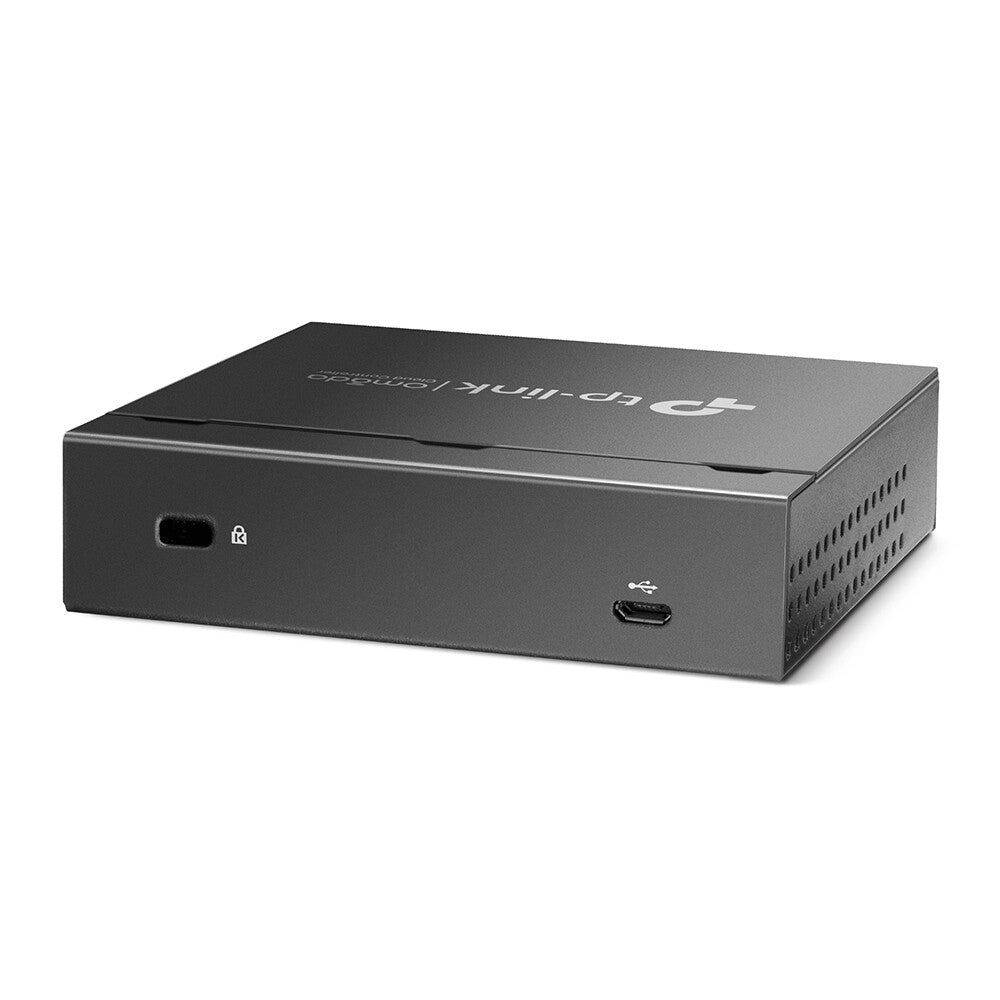

TP-Link Omada Cloud Controller (OC200)
Couldn't load pickup availability
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Flash memory | 4000 MB |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Number of processors installed | 1 |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Control display unit | No |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security | |
|---|---|
| VLAN support | Yes |
| Security algorithms | SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| Management features | |
|---|---|
| Management platform | L3 |
| Web-based management | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 5 W |
| Software | |
|---|---|
| Compatible operating systems | Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux |
| Weight & dimensions | |
|---|---|
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging data | |
|---|---|
| Package width | 135 mm |
| Package depth | 128 mm |
| Package height | 70 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
