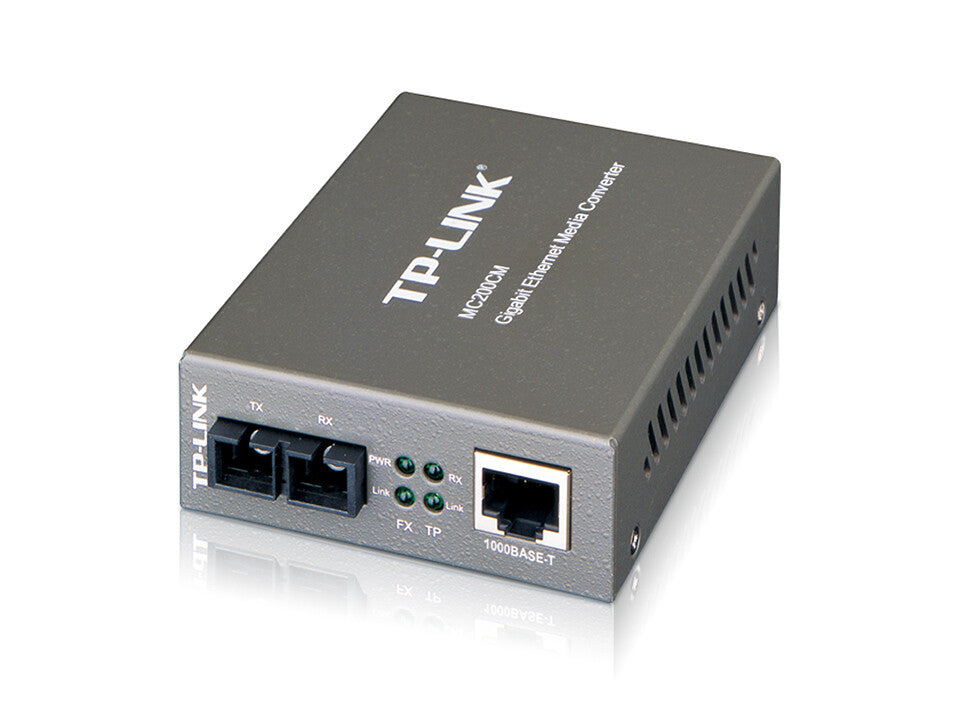

TP-LINK (MC200CM) Gigabit Multi-Mode Media Converter
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 550 m 850 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Multi-mode Fiber ports quantity: 1 SC 50/125,62.5/125 µm
- Black
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Fiber mode structure | Multi-mode |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Features | |
|---|---|
| LED indicators | Link |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (max) | 5.5 W |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 73 mm |
| Width | 94.5 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
|---|---|
| Package height | 65 mm |
| Package depth | 165 mm |
| Package width | 204 mm |
| Certificates | |
|---|---|
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
