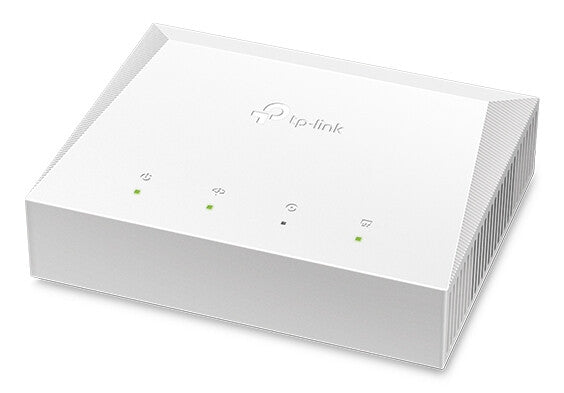

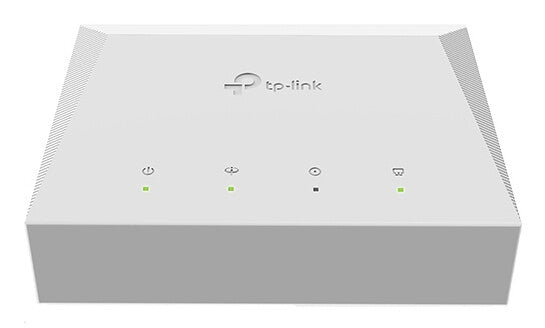

TP-Link 1-Port Gigabit XPON Terminal
£16.99
Couldn't load pickup availability
- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
- XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
- Durability: Intelligent power-saving method
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
1-Port
Gigabit XPON Terminal
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of up
to 2.488 Gbps downstream, 1.244 Gbps upstream.
Make
Fiber-to-the-Home Yours
TP-Link’s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.
Gigabit Internet Access
One PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Ease of Use
Quick and hassle-free installation
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | White |
| Product type | Optical network terminal (ONT) |
| Network | |
|---|---|
| Transmission distance (max) | 20 km |
| Downstream data rate | 2488 Mbit/s |
| Upstream data rate | 1244 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| ITU standards | G.984.1, G.984.3, G.984.4 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u |
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |

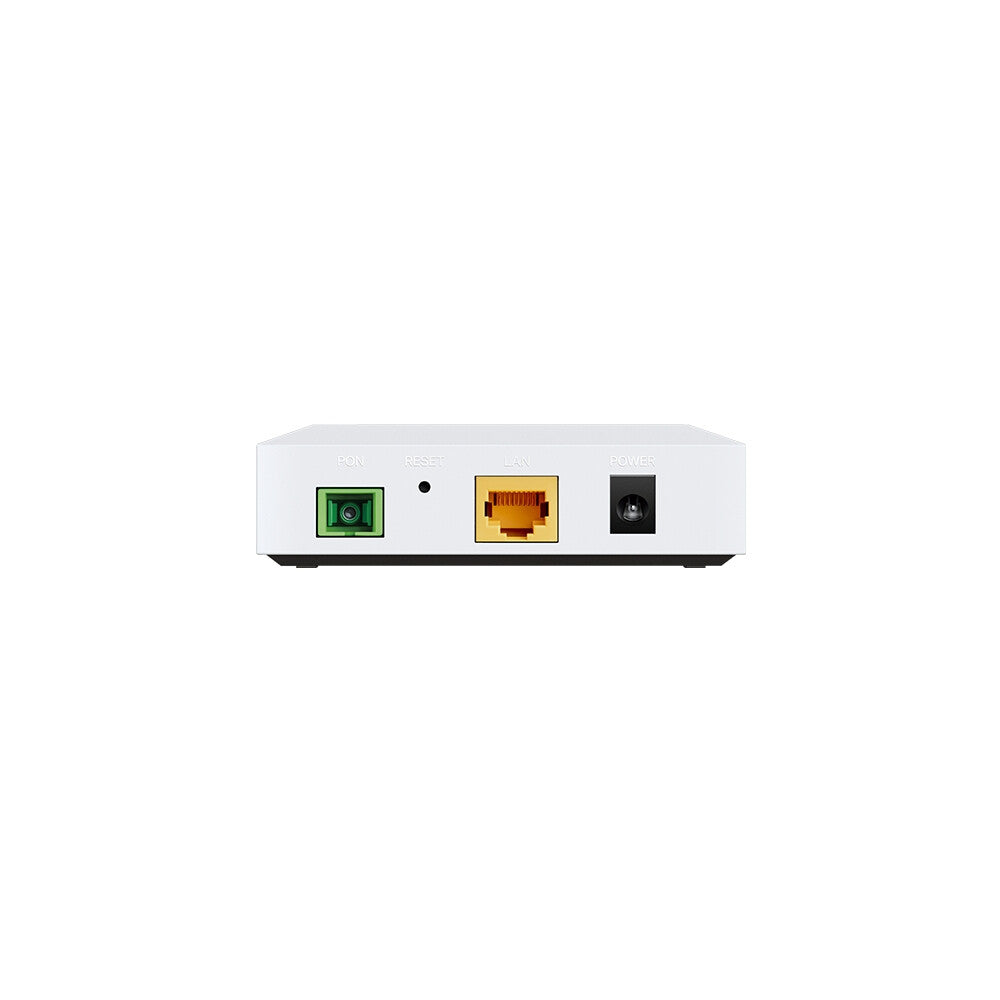

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC/APC |
| Fiber ports quantity | 1 |
| Power | |
|---|---|
| Output current | 0.6 A |
| Output voltage | 9 V |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 29.3 mm |
| Depth | 75 mm |
| Width | 95 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
