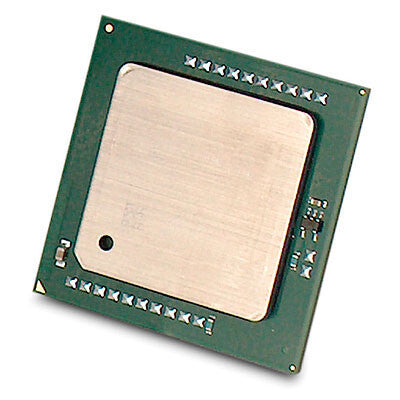

HPE Intel Xeon E5-2420 v2 processor 2.2 GHz 15 MB Smart Cache
£431.99
Couldn't load pickup availability
- Intel® Xeon® E5 V2 Family E5-2420V2 2.2 GHz
- 15 MB Smart Cache LGA 1356 (Socket B2)
- Processor cores: 6 22 nm 64-bit 80 W
- Maximum internal memory supported by processor: 384 GB DDR3-SDRAM
Options, accessories, services and support for all your HP and Compaq products
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| Number of QPI links | 1 |
| Bus type | QPI |
| Stepping | S1 |
| VID Voltage Range | 0.65 - 1.3 V |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| Processor boost frequency | 2.7 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 7.2 GT/s |
| Processor threads | 12 |
| Processor series | Intel Xeon E5-2400 v2 |
| Component for | Server/workstation |
| Processor lithography | 22 nm |
| Processor socket | LGA 1356 (Socket B2) |
| Processor cores | 6 |
| Processor base frequency | 2.2 GHz |
| Processor model | E5-2420V2 |
| Processor family | Intel® Xeon® E5 V2 Family |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 384 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | Yes |
| Supported instruction sets | AVX |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 24 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Conflict-Free processor | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 76 °C |
| Other features | |
|---|---|
| Compatibility | SL4540 GEN8 |
