Cooler Master X Silent Edge Platinum 1100 230V power supply unit 1100 W 24-pin ATX ATX Black
Couldn't load pickup availability
- 1100 W 200 - 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Passive
- Black
X Silent Edge Platinum 1100 230V
Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

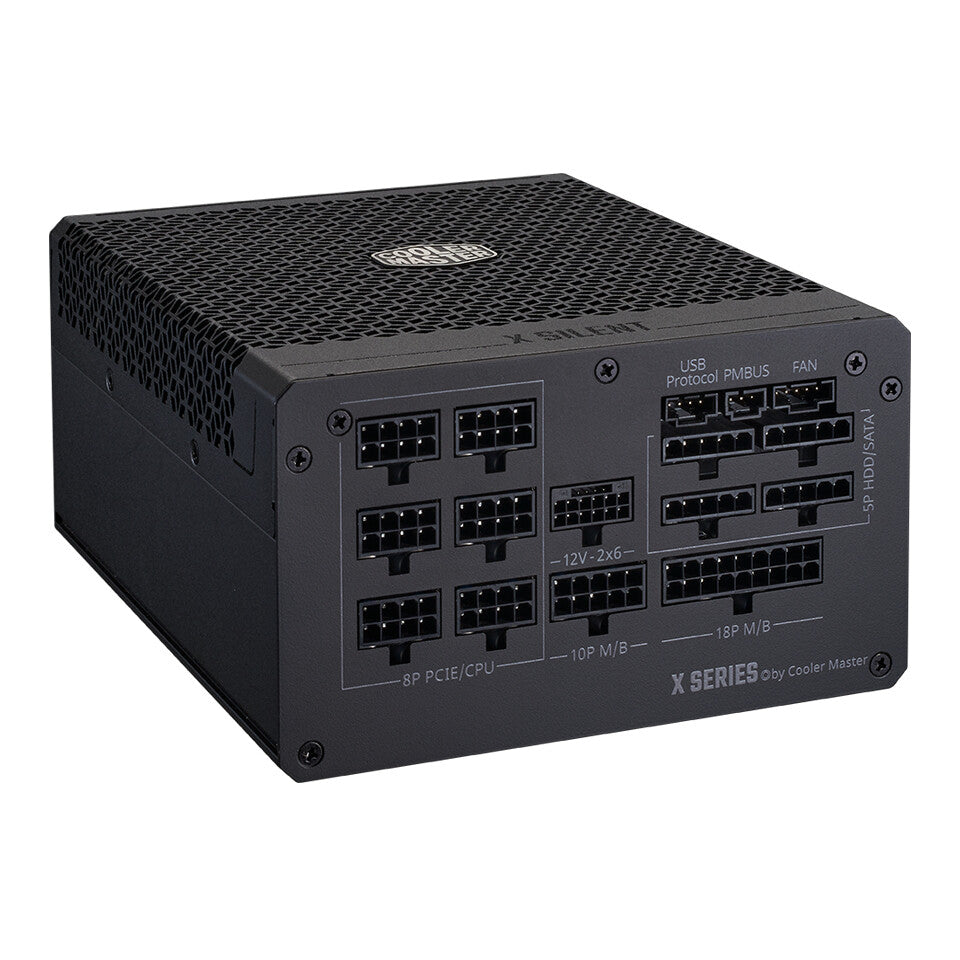

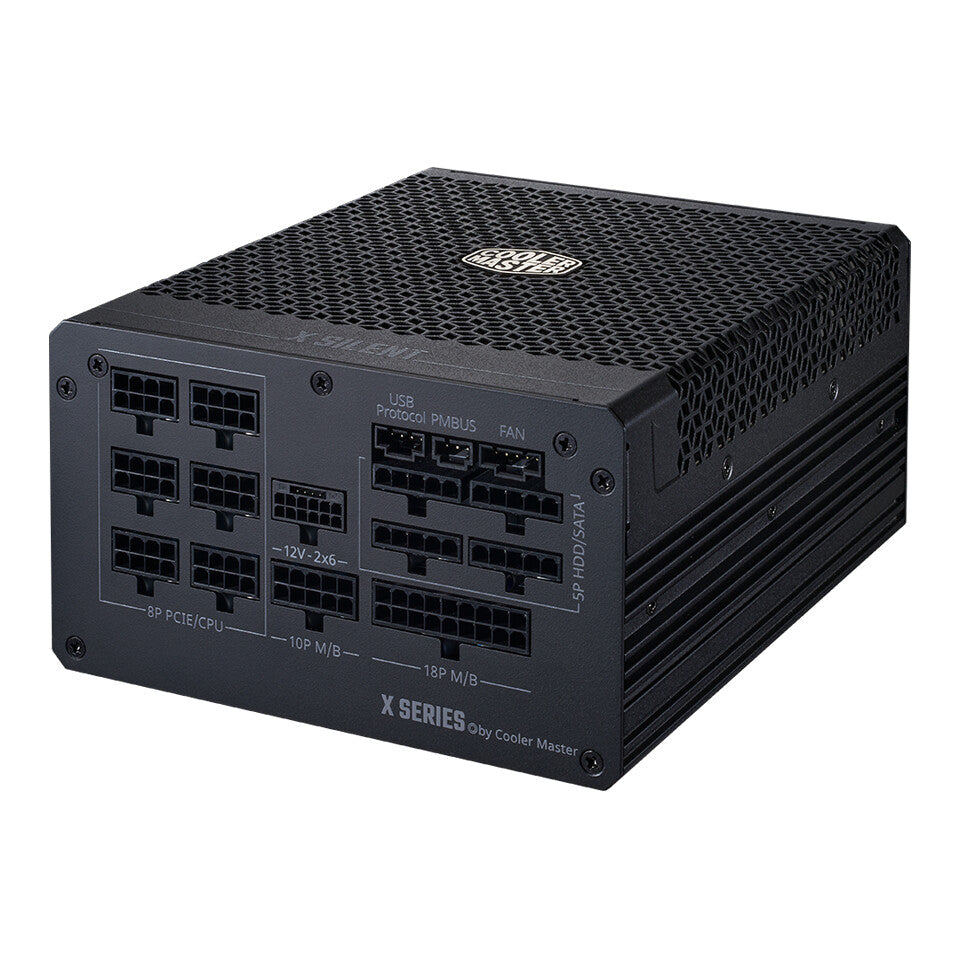

FULLY MODULAR CABLING
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
HEAT DISSIPATION
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Digital Power Management System & MasterCTRL
Equipped with MCUs and Integrated with MasterCTRL software, our reliable PSU meticulously monitors temperature, current load and efficiency in real-time, offering precise and direct oversight.
ACTIVE BRIDGE RECTIFIER BOOSTS EFFICIENCY 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 SUPPORT & A DURABLE 90° 12V-2X6 CABLE
Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
PSU Calculator
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush, Under voltage |
| Hold time | 16 ms |
| Efficiency | 94% |
| Power Good signal delay range | 100 - 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 91.6 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1099.2 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 6.1 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 - 240 V |
| Total power | 1100 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 500,620,740,860 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 500,650,800,950 mm |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Silent mode | Yes |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | BIS, CCC, CE, EAC, KC, RCM, TÜV mark, UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 4.5 kg |
| Height | 86 mm |
| Depth | 180 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Case or master carton dimensions (W x D x H) | 396 x 265 x 250 mm |
| Case or master carton quantity | 2 pc(s) |
| Package type | Box |
| Package weight | 5.2 kg |
| Package height | 126 mm |
| Package depth | 224 mm |
| Package width | 382 mm |
