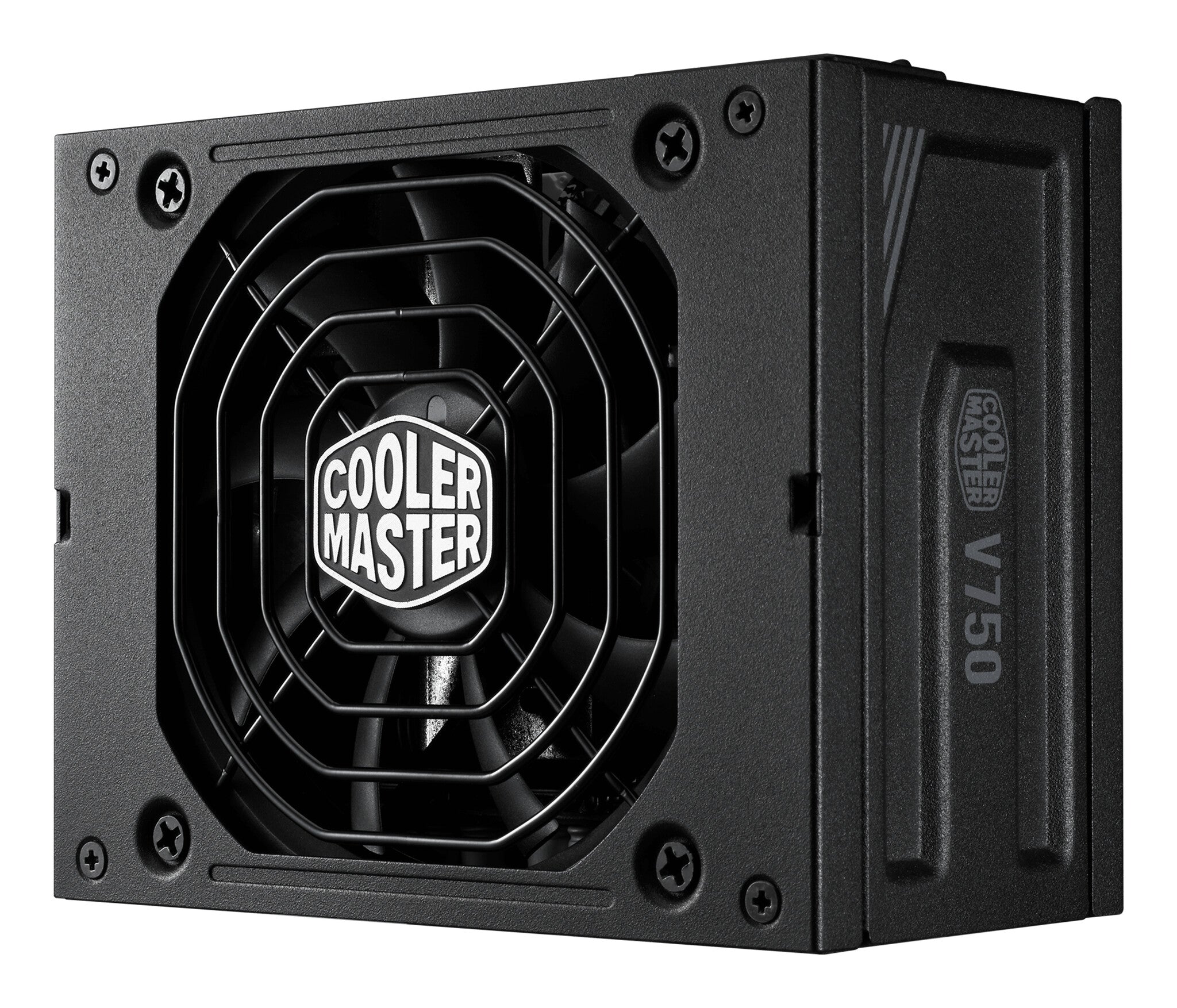

Cooler Master V SFX Gold 750 ATX 3.0 power supply unit 750 W 24-pin ATX Black
Couldn't load pickup availability
- Flexible compatibility
- ATX 3.0 support & a 90-degree 12VHPWR cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
Small But Mighty
Flexible Compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.0 support & a durable 90-degree 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.

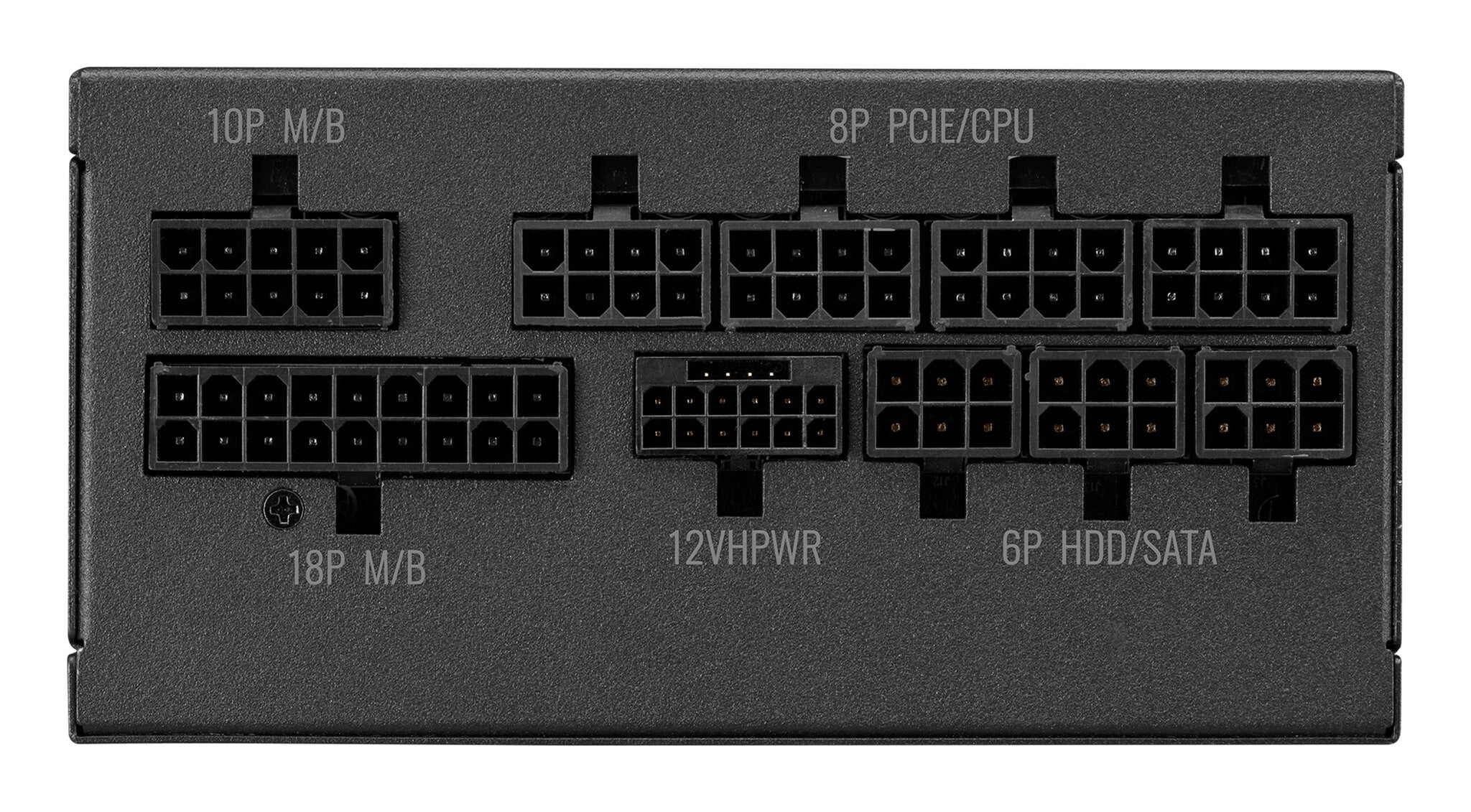

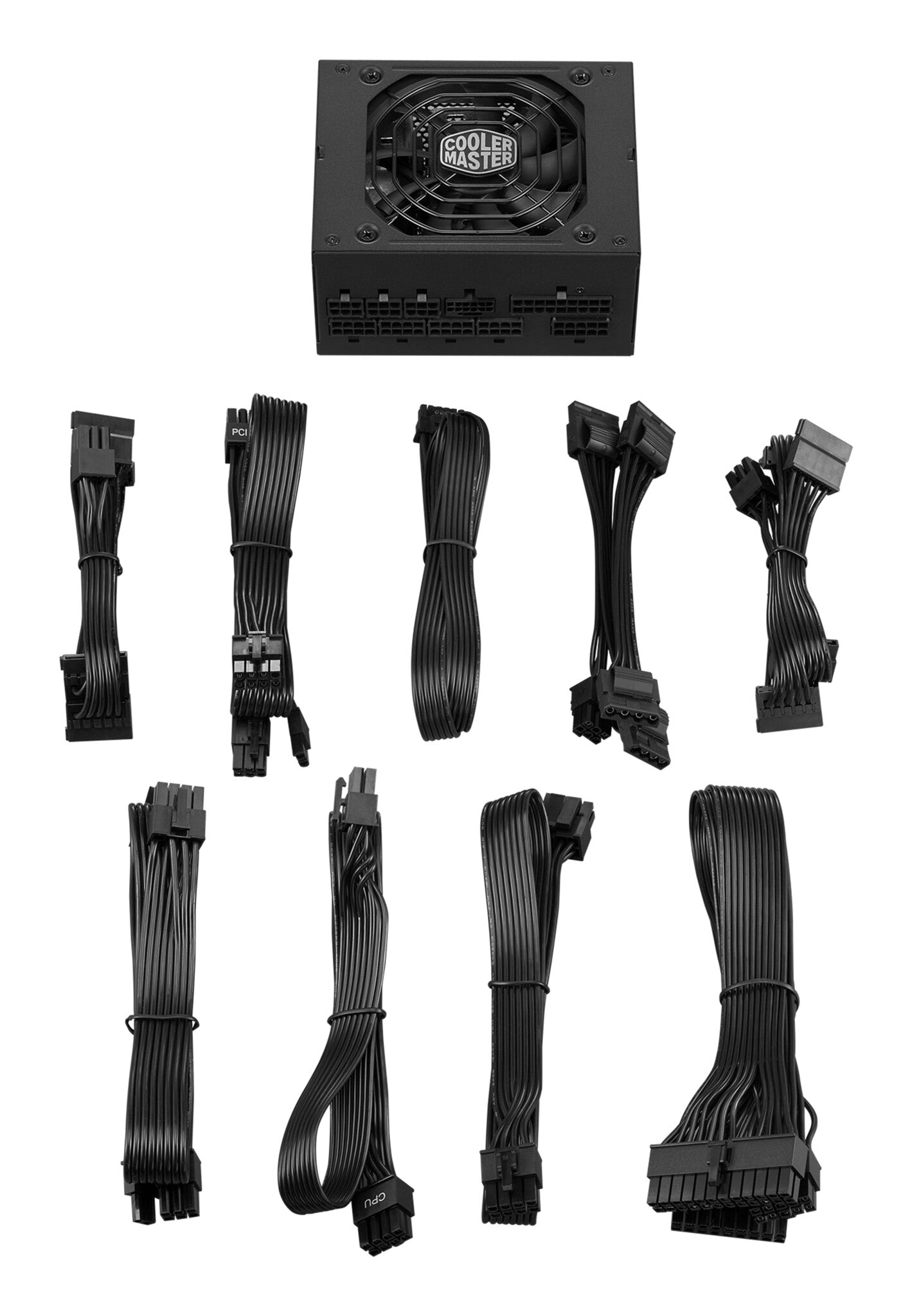

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 500 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 5 - 10 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express power cable length | 52 cm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 100,330 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 100,330,445 mm |
| Number of SATA power connectors | 2 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| ATX version | 3.0 |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC/Server |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
|---|---|
| Certification | ErP 2014 Lot 3, TUV, cTUVus, EAC, RCM, CB |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), UKCA |
| Weight & dimensions | |
|---|---|
| Weight | 1.42 kg |
| Height | 63.5 mm |
| Depth | 100 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package weight | 1.86 kg |
| Package height | 100 mm |
| Package depth | 260 mm |
| Package width | 190 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case height | 215 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case width | 275 mm |
| Master (outer) cases per pallet | 24 pc(s) |
| Other features | |
|---|---|
| EPS cable length | 45 cm |
