£81.29

Stock Available: 5

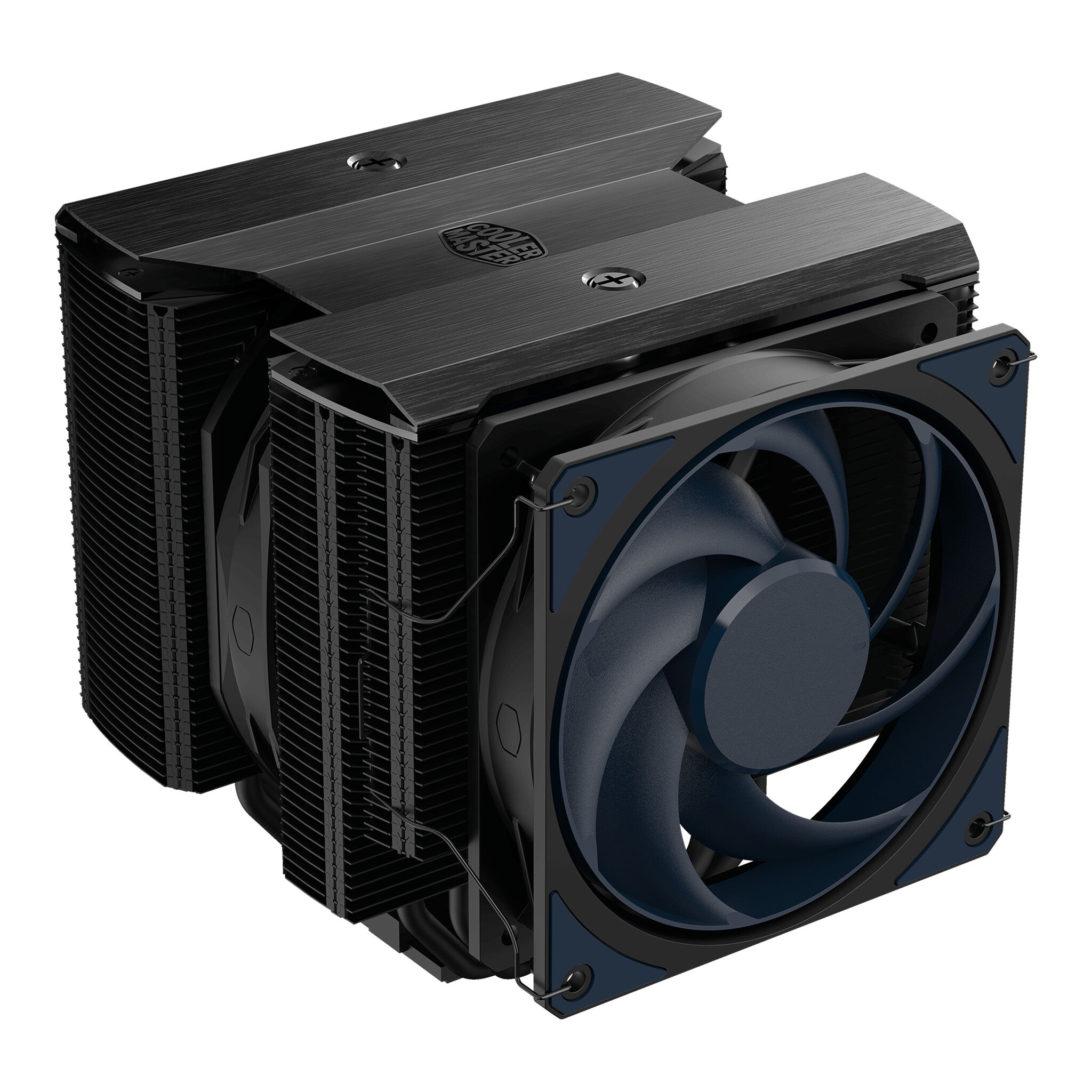

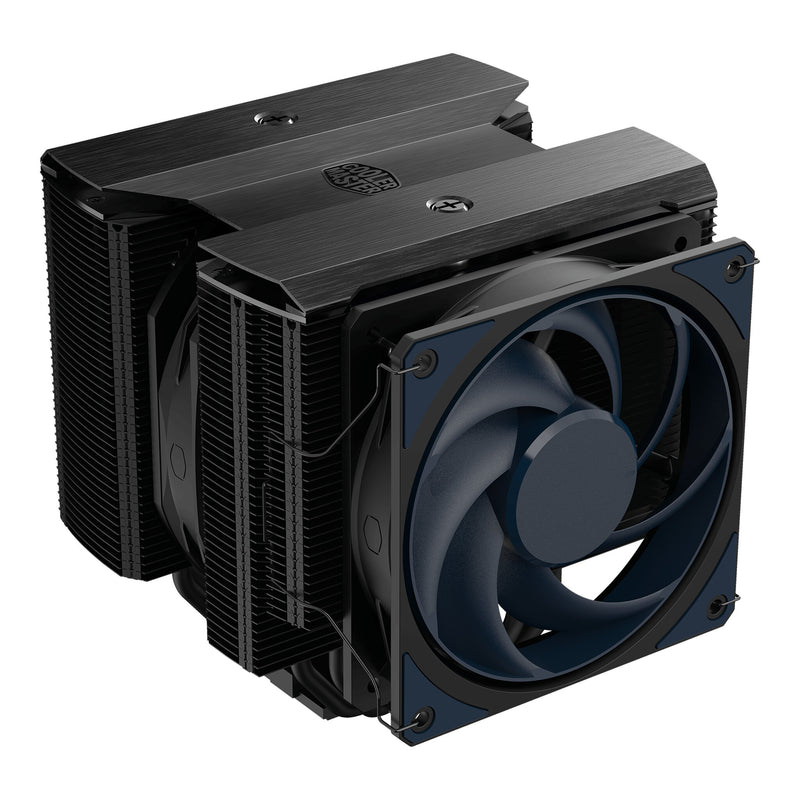

  • 8 Superconductive Composite Heat Pipes
  • Expanded Copper Base
  • Dual Tower Push-Pull Setup
  • 135mm and 120mm Mobius Series Fans
  • All Black Stealth Design
  • Maximum RAM Clearance

8 In-house Designed Superconductive Composite Heat Pipes
8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.

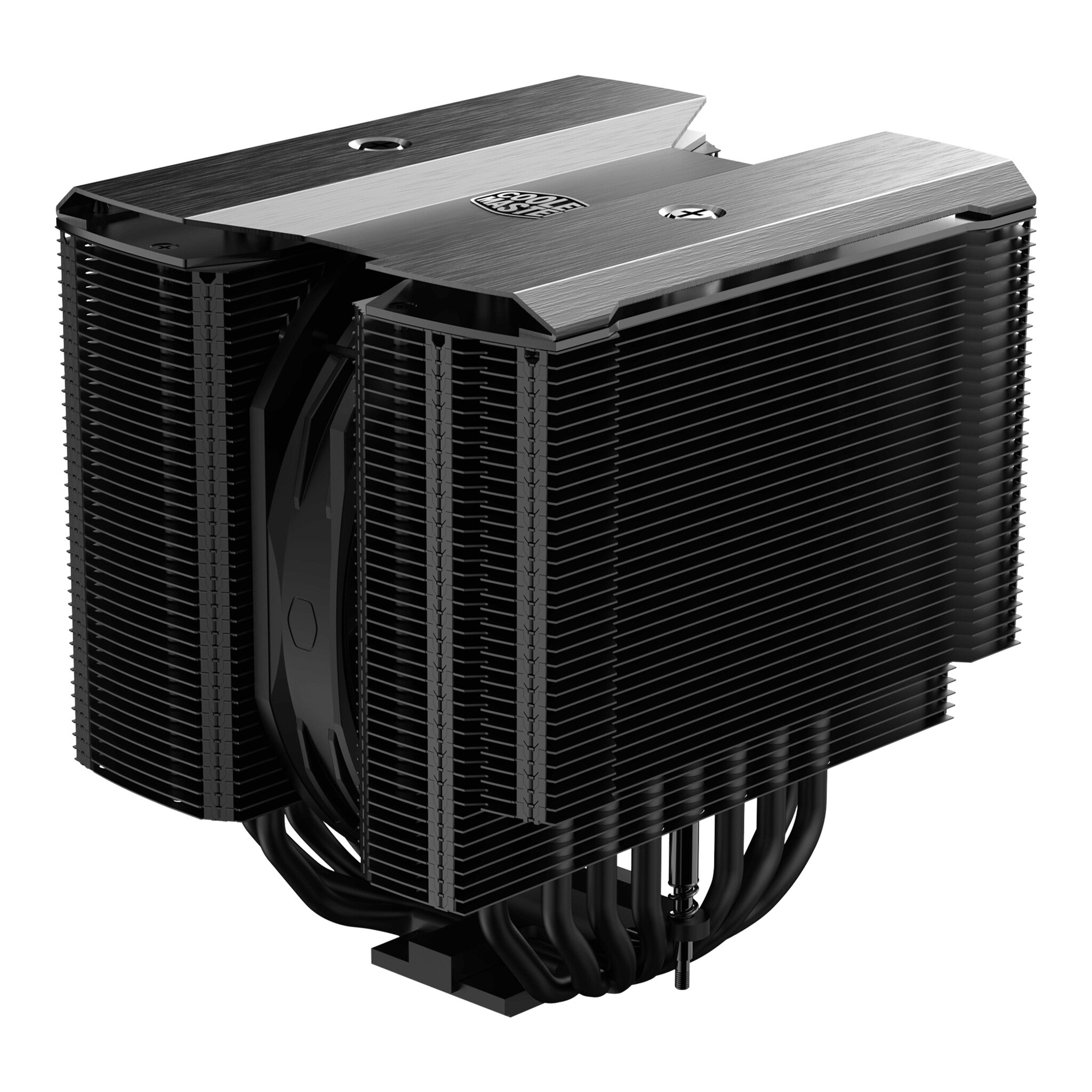

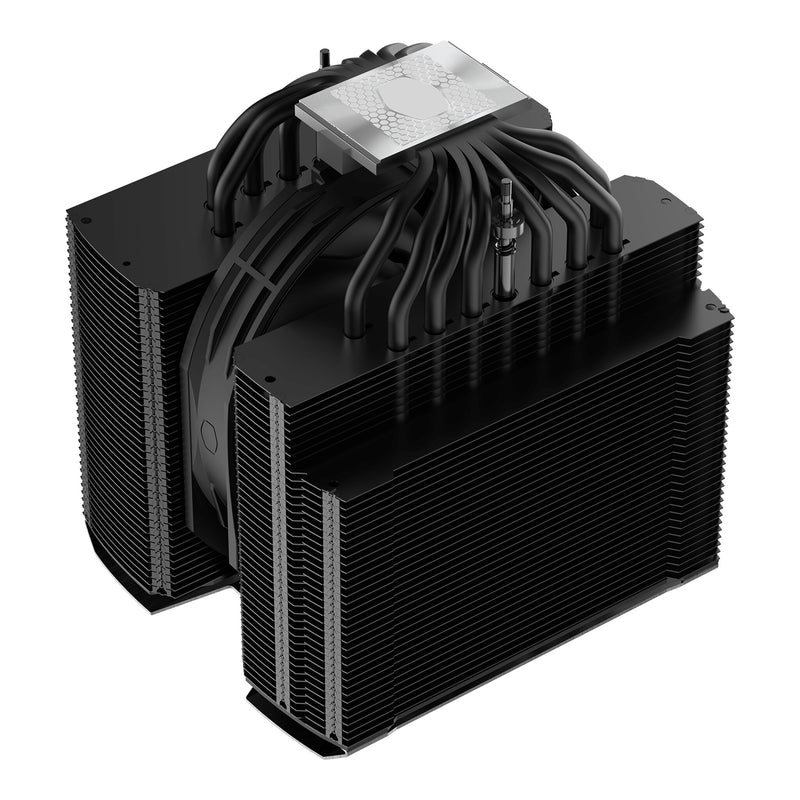

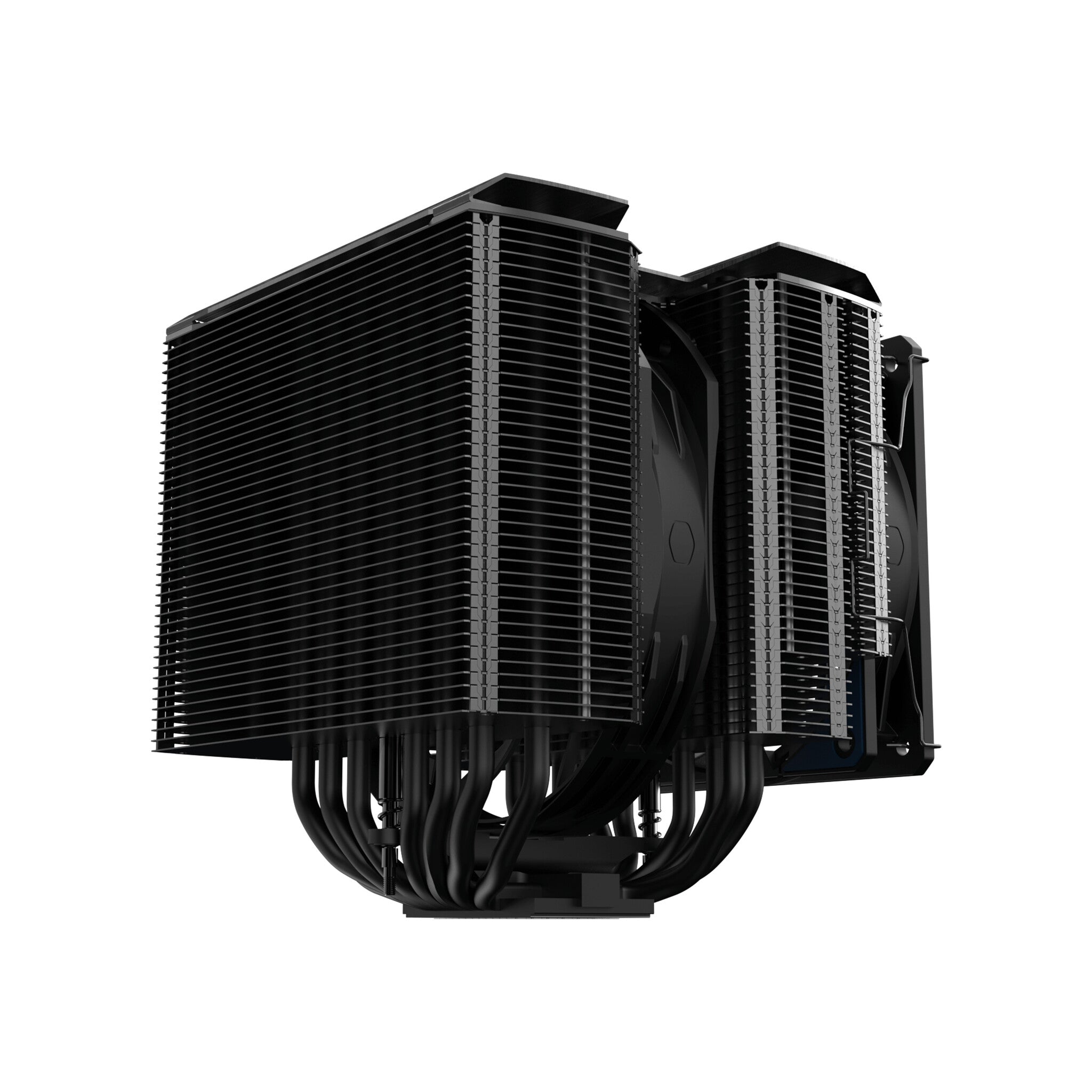

Performance Dual Tower
Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.

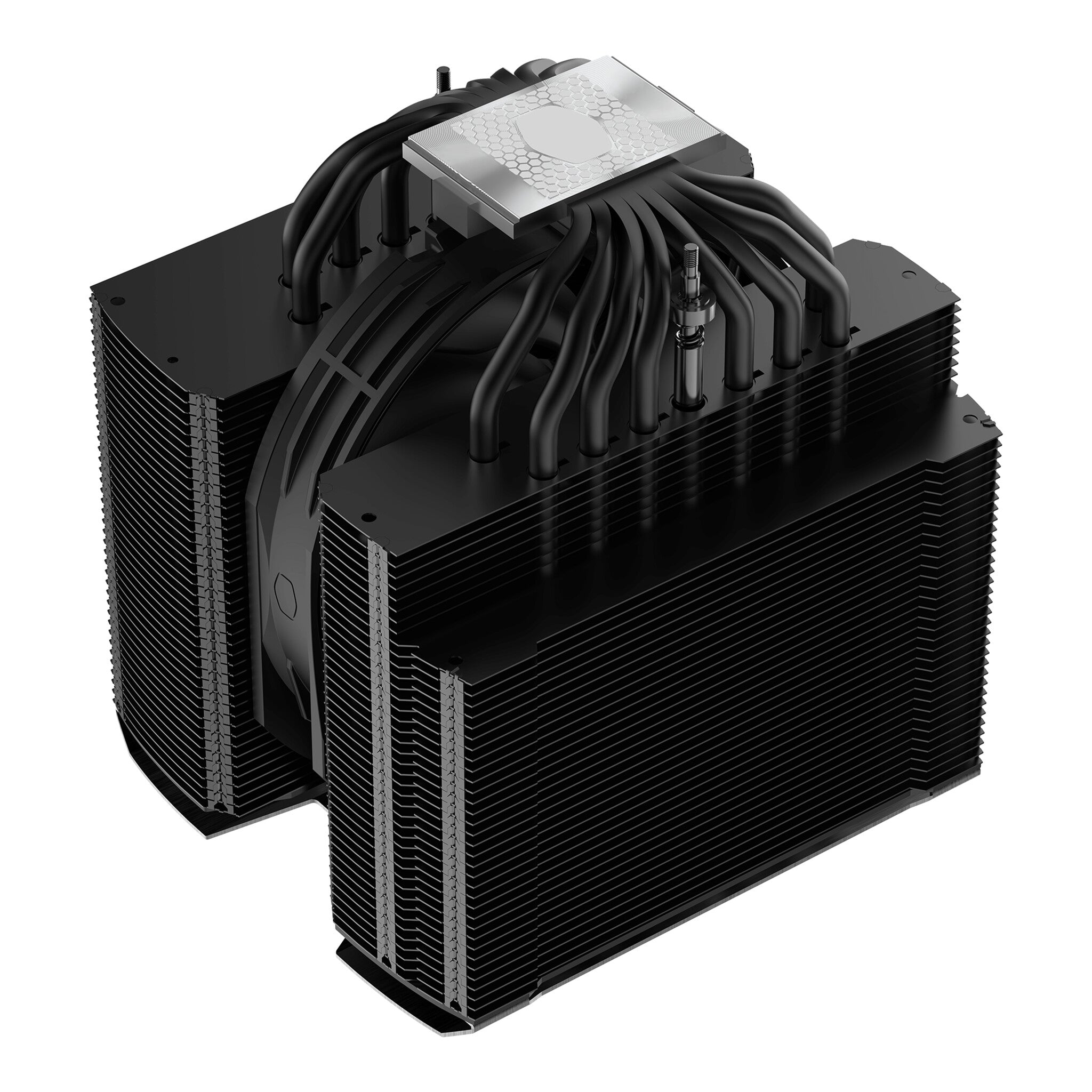

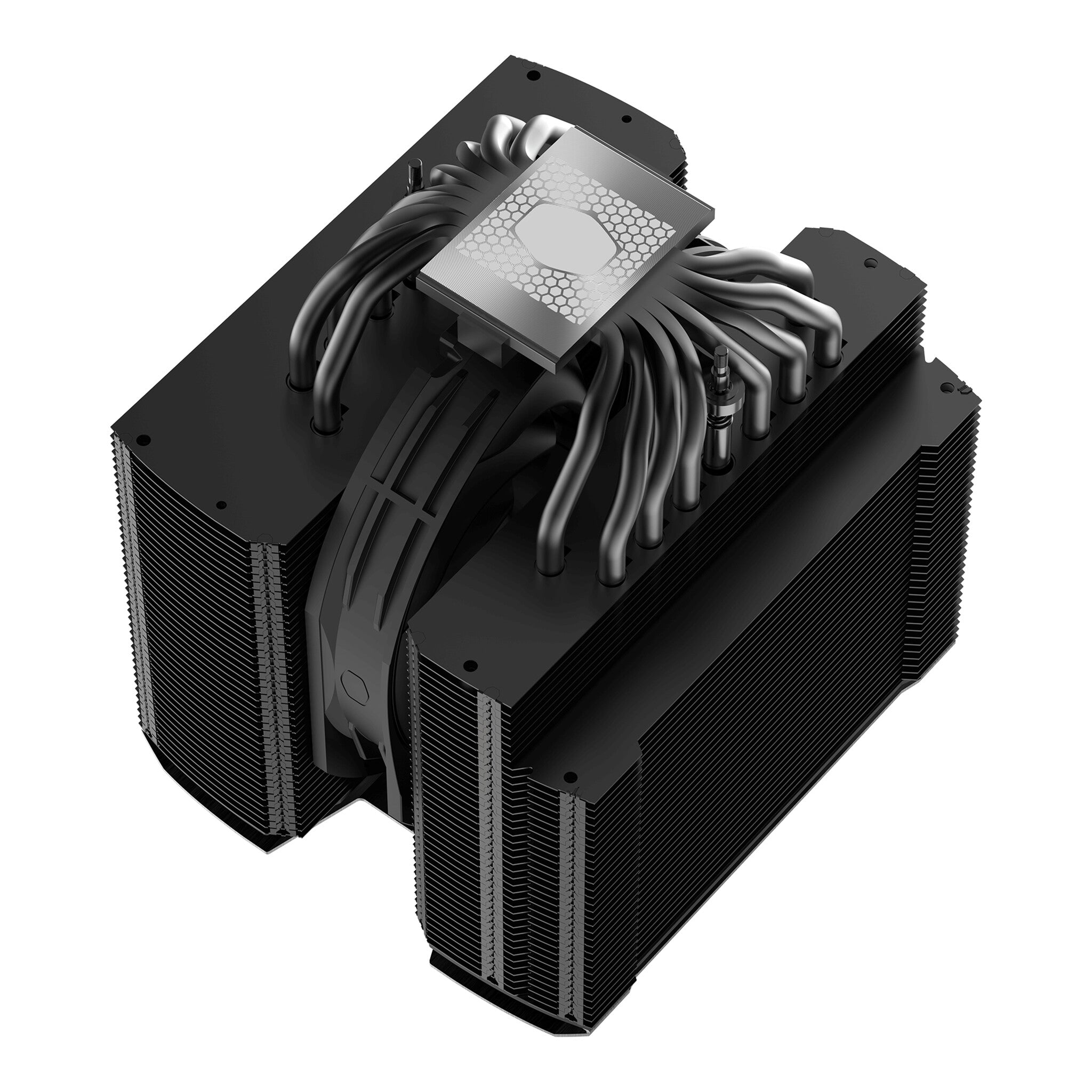

8 Heat Pipe Array
Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

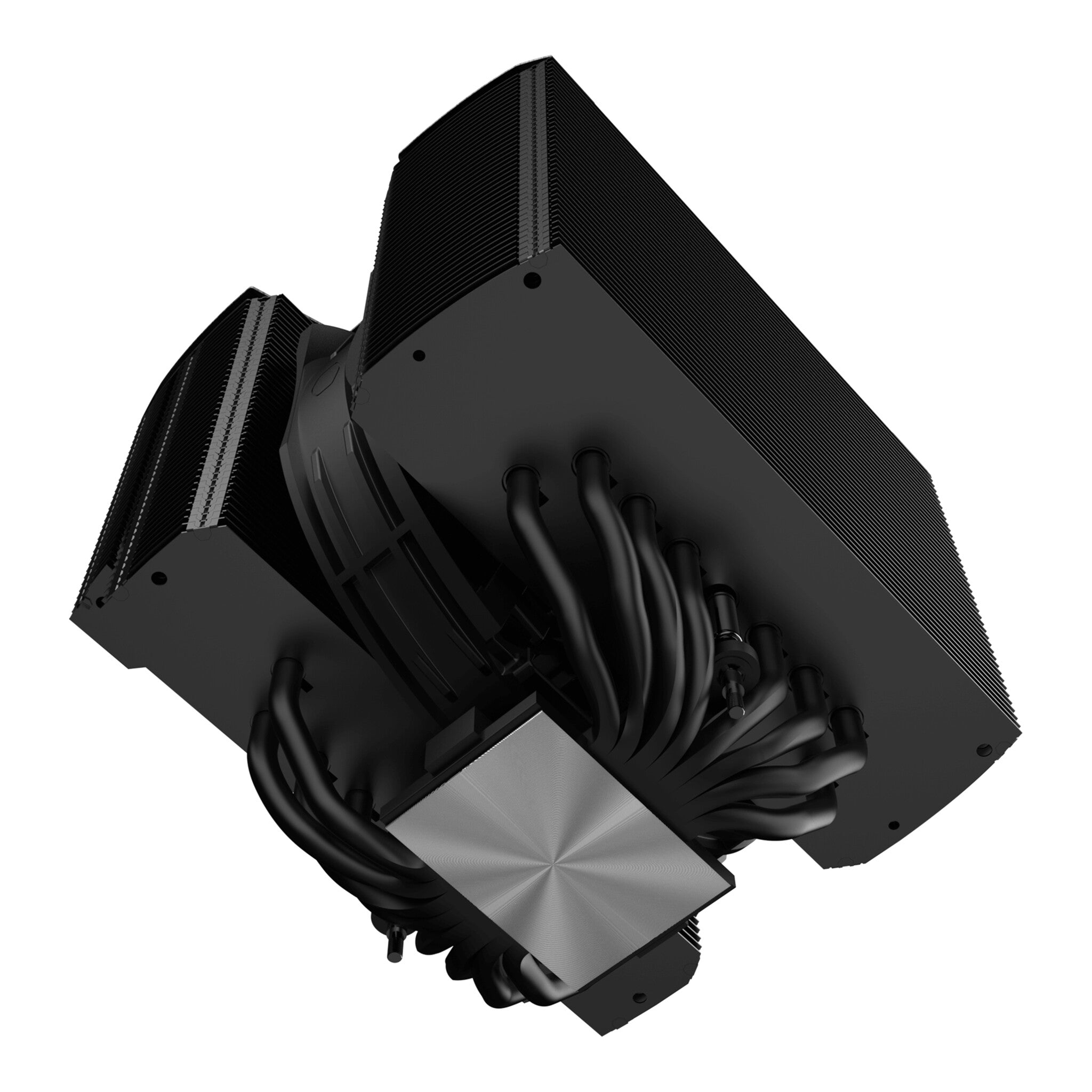

Expanded Copper Base
Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.

Dual Mobius Fans
Equipped with dual variable Mobius fans for exceptional silence without compromising performance.

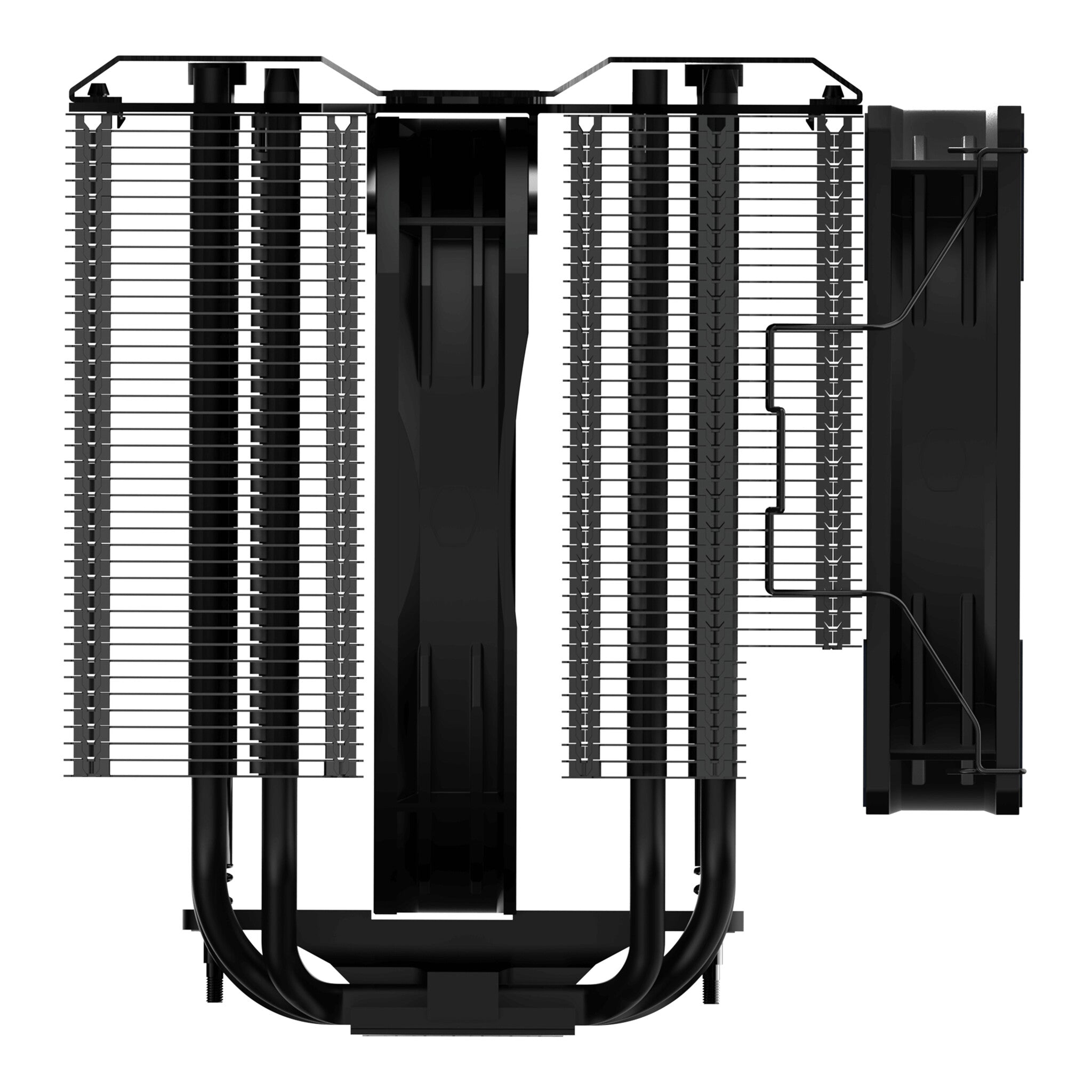

Dual Staggered Fan Setup
Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.

Maximum RAM Clearance
120mm Mobius fan provides 42mm of RAM clearance to fit a wider range of builds without sacrificing performance.

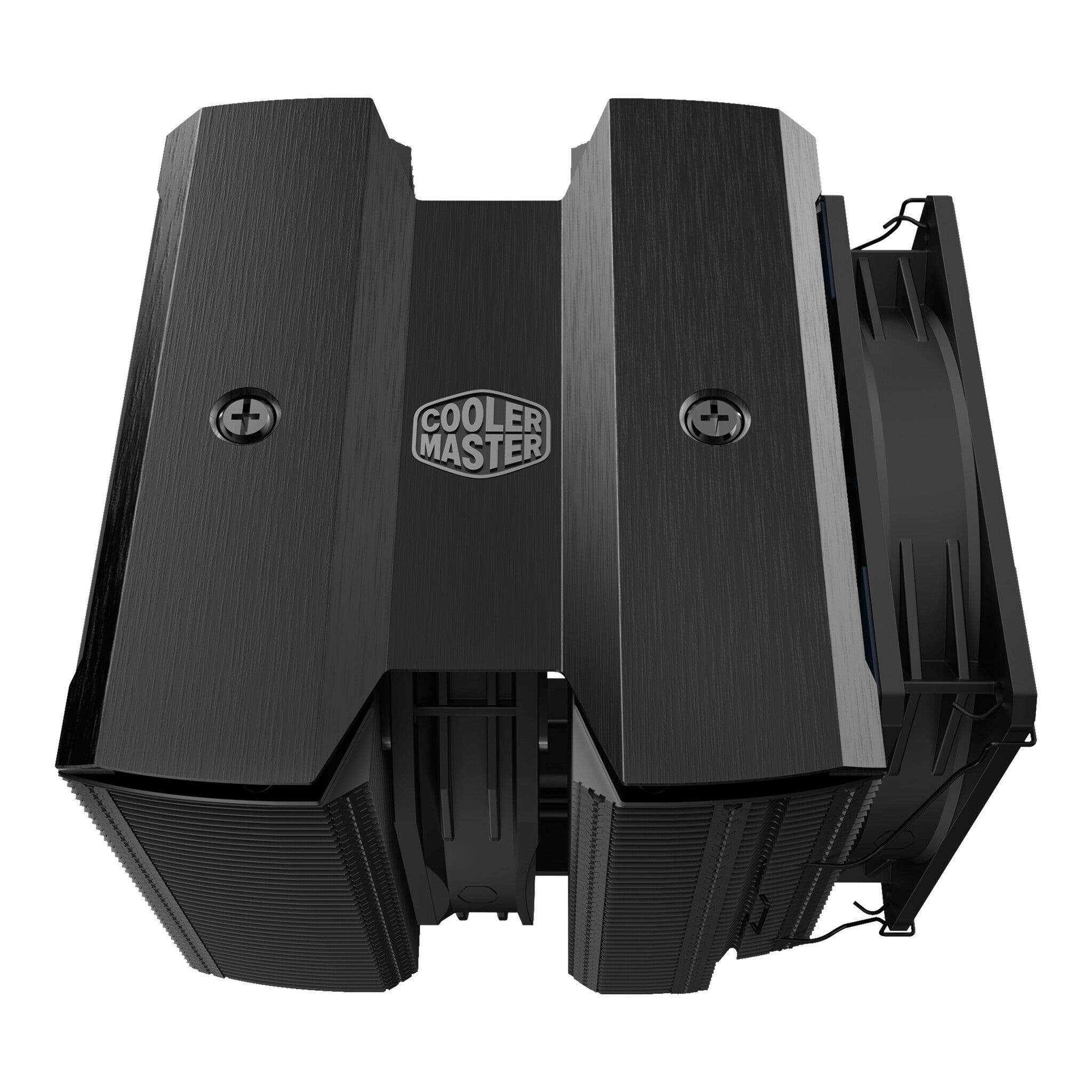

All Black Stealth Design
Stealth Series aluminum top cover and all black hardware provides a premium and clean design.

Pre-Applied High Performance Thermal Paste

Performance
Fan's mean time to failure (MTTF) 200000 h
Pulse-width modulation (PWM) support Yes
Fan 2 maximum air pressure 2.69 mmH2O
Fan 2 maximum airflow 63.1 cfm
Fan 2 noise level (high speed) 22.6 dB
Fan 2 rotational speed (max) 1950 RPM
Fan 2 rotational speed (min) 0 RPM
Maximum air pressure 1.92 mmH2O
Maximum airflow 63.6 cfm
Noise level (high speed) 24.6 dB
Rotational speed (max) 1550 RPM
Rotational speed (min) 0 RPM
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Fan diameter 120/135 mm
Type Air cooler
Suitable location Processor
Design
Fan connector 4-pin
Number of heat pipes 8
Fins material Aluminium
Number of fans 2 fan(s)
Product colour Black
Power
Rated voltage 12 V
Weight & dimensions
Package weight 2.25 kg
Package height 243 mm
Package depth 248 mm
Package width 191 mm
Fan 2 dimensions (W x D x H) 120 x 120 x 25 mm
Fan dimensions (W x D x H) 135 x 135 x 26 mm
Weight 1.63 kg
Height 165.6 mm
Depth 162.2 mm
Width 150.6 mm
General
Product family MasterAir
Logistics data
Products per master (outer) case 4 pc(s)
Master (outer) case height 278 mm
Master (outer) case length 520 mm
Master (outer) case width 405 mm
