Asrock

iFrame
×
£201.99
Stock Available: 1
  • AM4 Socket APUs, up to 65Watts
  • AMD X300 Chipset
  • 178 x 178 x 34mm / 1.07L
  • 2 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1
  • 2 x USB 2.0
  • DisplayPort, HDMI, D-Sub
  • M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
  • M.2 (2230) slot for Wi-Fi
  • 2W Speaker, TPM V2.0

AM4 One Liter Mini PC
Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.

Advanced AM4 Platform
AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W

High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)

High Performance Thermal
Copper based heatsink
High efficiency blower

Dual Storage & Wireless
Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)

SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD

M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi

Rich USB Connectivity
Supports 8 USB Ports

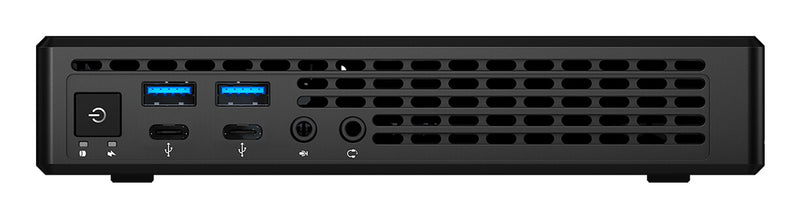

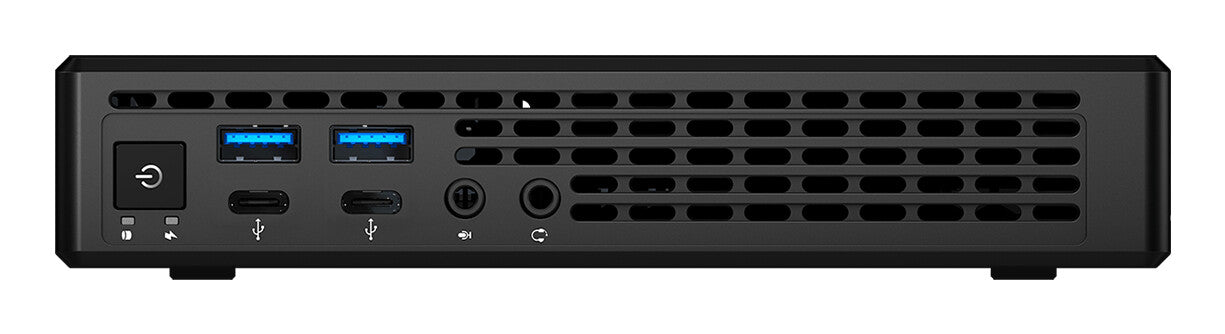

Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A

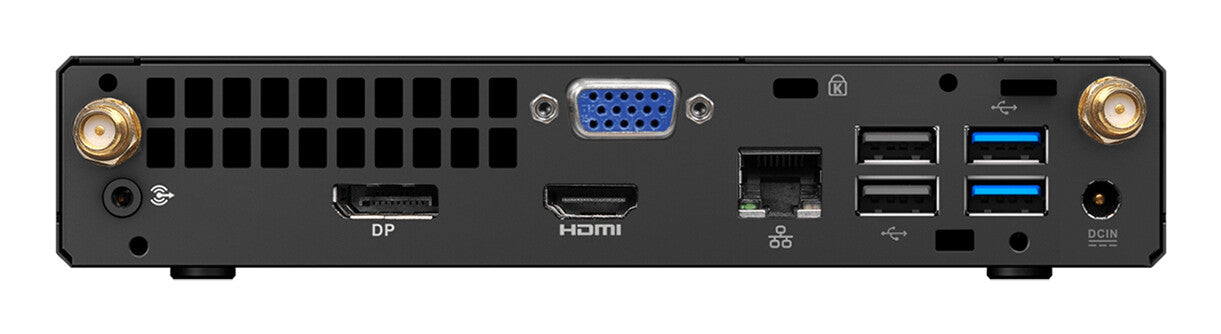

Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Enhanced Creativity
3 Video Outputs
HDMI4K@60Hz
DisplayPort4K@60Hz
D-SubFHD@60Hz

Enterprise Solutions
DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.

TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.

Anti-Thief & Speaker
Chassis Intrusion
Get notification if chassis of Jupiter has been opened.

Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.

VESA Mount & Stand
Tri-direction VESA mount let you mount Jupiter behind monitor.

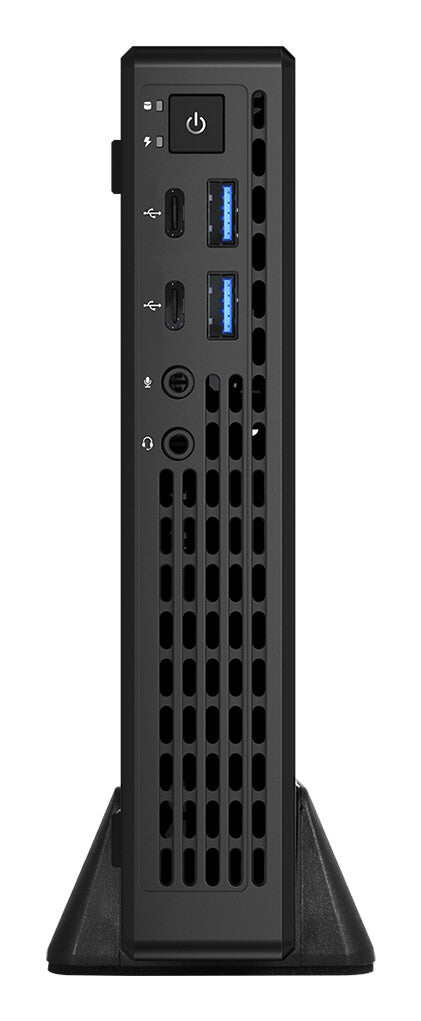

Use Vertical stand to save desk space.

Processor
Processor manufacturer AMD
Built-in processor No
Memory
Non-ECC Yes
Maximum internal memory 64 GB
Supported memory types DDR4-SDRAM
Supported memory clock speeds 2933,3200 MHz
Number of memory slots 2
Memory slots type SO-DIMM
Storage
Storage drive interface PCI Express, Serial ATA III
SSD form factor M.2
Storage drive sizes supported 2.5"
Supported storage drive types HDD & SSD
Graphics
Graphics card family AMD
On-board graphics card No
Audio
RMS rated power 2 W
Number of speakers 1
Built-in speaker(s) Yes
Network
LAN controller Realtek RTL8111GN
Wi-Fi No
Ethernet LAN Yes
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Headphone outputs 2
Microphone in Yes
DisplayPorts quantity 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 2
Expansion slots
Number of M.2 (M) slots 2
Design
Product type Mini PC barebone
Panel mounting interface 75 x 75,100 x 100 mm
VESA mounting Yes
Cable lock slot type Kensington
Cable lock slot Yes
Product colour Black
Chassis type 1L sized PC
Performance
Audio chip Realtek ALC233
Number of processors supported 1
Processor socket Socket AM4
Motherboard chipset AMD X300
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power
Number of power supply units 1
Power supply 90 W
Power supply type External AC adapter
Weight & dimensions
Height 34 mm
Depth 178 mm
Width 178 mm
